Hayter Harrier 48 Autodrive Blade Brake Clutch Mower - 485R

Serial No: 485R001001 - 485R099999

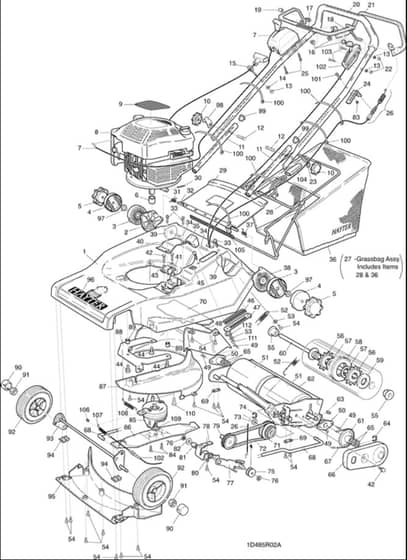

Parts Assembly - Parts Diagram

Ref. Img. Part No. Details
  3 Clamp - Boss Inner
Clamp - Boss Inner
HA480084W Out of stock
Clamp - Boss Inner
£10.54 £8.78

  4 Clamp - Boss Outer
Clamp - Boss Outer
HA480085W In stock
Clamp - Boss Outer
Was £8.35 £6.96 Special Price £4.63 £3.86

  5 Handwheel - Assy
Handwheel - Assy
HA480054 In stock
Handwheel - Assy
£7.37 £6.14

  6 Spacer BBC
Spacer BBC
HA485006 Out of stock
Spacer BBC
£15.64 £13.03

  10 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  12 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  13 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  14 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  15 Guide Rope
Guide Rope
HA305093 Out of stock
Guide Rope
£1.62 £1.35

  16 Clutch Lever
Clutch Lever
HA226034 Out of stock
Clutch Lever
£2.20 £1.83

  17 Decal Operation
Decal Operation
HA343019 Out of stock
Decal Operation
£3.02 £2.52

  21 Lever Clutch
Lever Clutch
HA219090 Out of stock
Lever Clutch
£42.82 £35.68

  22 Cap-Plastic
Cap-Plastic
HA343025 Out of stock
Cap-Plastic
£1.63 £1.36

  23 Cable Guide Spring
Cable Guide Spring
HA480123 Out of stock
Cable Guide Spring
£2.54 £2.12

  26 Cable - Clutch
Cable - Clutch
HA480094 In stock
Cable - Clutch
£21.10 £17.58

  29 Deflector - Rear
Deflector - Rear
HA480140 In stock
Deflector - Rear
£22.16 £18.47

  30 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  31 Spring - Deflector Rh
Spring - Deflector Rh
HA480131 Out of stock
Spring - Deflector Rh
£4.48 £3.73

  32 Rod - Deflector
Rod - Deflector
HA480062 Out of stock
Rod - Deflector
£42.53 £35.44

  34 Bolt
Bolt
HA09549 Out of stock
Bolt
£1.63 £1.36

  35 Cover Lever
Cover Lever
HA330053 Out of stock
Cover Lever
£5.60 £4.67

  36 Grassbag - Fabric
Grassbag - Fabric
HA486021 Out of stock
Grassbag - Fabric
£130.98 £109.15

  37 Spring - Deflector Lh
Spring - Deflector Lh
HA480130 Out of stock
Spring - Deflector Lh
£5.11 £4.26

  38 Plate - Location Lh
Plate - Location Lh
HA480082V Out of stock
Plate - Location Lh
£7.16 £5.97

  40 Cover - Apto
Cover - Apto
HA480014 Out of stock
Cover - Apto
£3.65 £3.04

  41 Bearing - Apto
Bearing - Apto
HA480050 Out of stock
Bearing - Apto
£11.60 £9.67

  42 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  43 Bushing
Bushing
HA340154 Out of stock
Bushing
£5.66 £4.72

  45 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  49 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  50 Bearing - Roller Housing
Bearing - Roller Housing
HA480037 In stock
Bearing - Roller Housing
£14.11 £11.76

  53 Washer
Washer
HA09262 Out of stock
Washer
£1.63 £1.36

  54 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  55 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  56 Freewheel-Roller
Freewheel-Roller
HA340150 In stock
Freewheel-Roller
£14.05 £11.71

  57 Spacer Nylon
Spacer Nylon
HA340157 In stock
Spacer Nylon
£2.09 £1.74

  58 Shroud-Freewheel
Shroud-Freewheel
HA340168 In stock
Shroud-Freewheel
£11.57 £9.64

  59 Locknut
Locknut
HA340163 In stock
Locknut
£25.60 £21.33

  61 Sprocket - 22 Teeth
Sprocket - 22 Teeth
HA480039 Out of stock
Sprocket - 22 Teeth
£45.44 £37.87

  64 1/4-20 x 5/8 Hex Hd. Cap Screw
1/4-20 x 5/8 Hex Hd. Cap Screw
HA1428 Out of stock
1/4-20 x 5/8 Hex Hd. Cap Screw
£1.63 £1.36

  65 Washer
Washer
HA480097 In stock
Washer
£1.64 £1.37

  66 Cover - Transmission
Cover - Transmission
HA480043 In stock
Cover - Transmission
£24.73 £20.61

  67 Chain
Chain
HA486037 In stock
Chain
£12.52 £10.43

  69 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  70 Filler Throwplate
Filler Throwplate
HA480017W Out of stock
Filler Throwplate
£22.00 £18.33

  71 Pulley - Sprocket Fixedspeed
Pulley - Sprocket Fixedspeed
HA480171 Out of stock
Pulley - Sprocket Fixedspeed
£76.09 £63.41

  72 Belt - V Apto
Belt - V Apto
HA480063 In stock
Belt - V Apto
£19.43 £16.19

  73 Washer
Washer
HA02575 In stock
Washer
£1.63 £1.36

  74 Circlip
Circlip
HA03096 In stock
Circlip
£1.63 £1.36

  75 Pulley - Jockey
Pulley - Jockey
HA219156 Out of stock
Pulley - Jockey
£1.68 £1.40

  76 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  79 Pulley - Drive Apto
Pulley - Drive Apto
HA480038 Out of stock
Pulley - Drive Apto
£90.56 £75.47

  80 Spring - Torsion Idler
Spring - Torsion Idler
HA480066 Out of stock
Spring - Torsion Idler
£9.29 £7.74

  81 Bush
Bush
HAHY4452 In stock
Bush
£3.41 £2.84

  82 Washer-Plain
Washer-Plain
HA09280 Out of stock
Washer-Plain
£1.56 £1.30

  83 Nut-Insert. Ni
Nut-Insert. Ni
HA09657 Out of stock
Nut-Insert. Ni
£1.63 £1.36

  84 Screw - Soc. Hd. Button
Screw - Soc. Hd. Button
HA09747 In stock
Screw - Soc. Hd. Button
£5.66 £4.72

  85 Blade Brake Clutch
Blade Brake Clutch
HA485007 Out of stock
Blade Brake Clutch
£235.80 £196.50

  90 Hub Cap
Hub Cap
HA219143 Out of stock
Hub Cap
£7.26 £6.05

  91 Nut Unf 1/2
Nut Unf 1/2
HA4486 Out of stock
Nut Unf 1/2" Nyloc Ext Thin5/16"
£1.18 £0.98

  92 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  93 Axle - Front W/A
Axle - Front W/A
HA219031 Out of stock
Axle - Front W/A
£53.35 £44.46

  94 Moulding - Front Axle Bearing
Moulding - Front Axle Bearing
HA219036 Out of stock
Moulding - Front Axle Bearing
£4.94 £4.12

  95 Fin - Front Insert
Fin - Front Insert
HA480013 In stock
Fin - Front Insert
£16.98 £14.15

  96 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  97 Nut - M8 Shouldered
Nut - M8 Shouldered
HA480086 Out of stock
Nut - M8 Shouldered
£8.11 £6.76

  99 Plug
Plug
HA300160 Out of stock
Plug
£1.62 £1.35

  100 Spring - Clip
Spring - Clip
HA3966 Out of stock
Spring - Clip
£1.18 £0.98

  101 Screw Set
Screw Set
HA09704 Out of stock
Screw Set
£1.63 £1.36

  102 Control - BBC Assy
Control - BBC Assy
HA485028 Out of stock
Control - BBC Assy
£74.11 £61.76

  106 Nipple Split
Nipple Split
HA510118 In stock
Nipple Split
£17.40 £14.50

  107 Clutch Cable
Clutch Cable
HA510117 Out of stock
Clutch Cable
£2.59 £2.16

  108 Spring Blade Brake Tension
Spring Blade Brake Tension
HA343011 Out of stock
Spring Blade Brake Tension
£9.56 £7.97

  109 Centre Bolt BBC
Centre Bolt BBC
HA343029 Out of stock
Centre Bolt BBC
£6.42 £5.35

  110 Screw - Soc Hd Shld M12 x M10 x 30
Screw - Soc Hd Shld M12 x M10 x 30
HAZIS8L030S Out of stock
Screw - Soc Hd Shld M12 x M10 x 30
£12.11 £10.09

  111 Nut-Nyloc
Nut-Nyloc
HA09438 In stock
Nut-Nyloc
£1.62 £1.35
