Description

Hayter - 480C

Serial No: 480C001001 - 480C099999

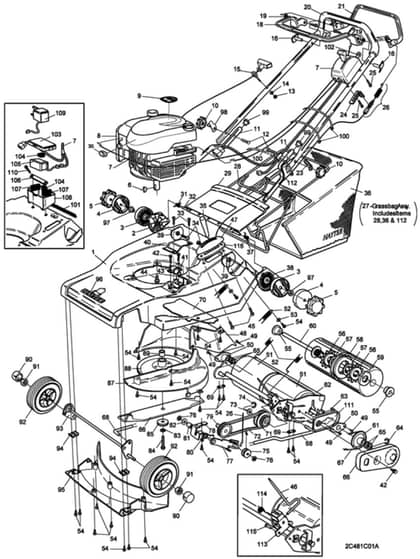

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  3 Clamp - Boss Inner HA480084W
Clamp - Boss Inner
Out of stock
£11.05 £9.21

  4 Clamp - Boss Outer HA480085W
Clamp - Boss Outer
Out of stock
£8.35 £6.96

  5 Handwheel - Assy HA480054
Handwheel - Assy
In stock
£7.37 £6.14

  6 Key-Woodruff HA1662
Key-Woodruff
In stock
£1.63 £1.36

  10 Knob-Handlebar HA480088
Knob-Handlebar
In stock
£5.64 £4.70

  11 Handlebar - Lower HA480168W
Handlebar - Lower
Out of stock
£17.80 £14.83

  12 Bolt-Handlebar HAHY226024
Bolt-Handlebar
In stock
£1.67 £1.39

  13 Nut-Nyloc HA09544
Nut-Nyloc
Out of stock
£1.56 £1.30

  14 Washer-Plain HA09472
Washer-Plain
Out of stock
£1.55 £1.29

  15 Guide Rope HA305093
Guide Rope
Out of stock
£1.74 £1.45

  16 Pin-Pivot HA340182
Pin-Pivot
Out of stock
£1.70 £1.42

  17 Grip-Fix HA04020
Grip-Fix
Out of stock
£1.74 £1.45

  18 Lever-Engine HA111-9662
Lever-Engine
In stock
£18.86 £15.72

  19 Washer HA09688
Washer
In stock
£0.72 £0.60

  20 Handlebar Upper HA341029
Handlebar Upper
Out of stock
£88.80 £74.00

  21 Lever-Clutch HA111-1921-03
Lever-Clutch
In stock
£45.06 £37.55

  22 Screw HA09687
Screw
In stock
£1.69 £1.41

  23 Cable Guide Spring HA480123
Cable Guide Spring
Out of stock
£2.68 £2.23

  26 Cable - Clutch HA480094
Cable - Clutch
In stock
£22.16 £18.47

  27 Grassbag - Assy HA486021
Grassbag - Assy
Out of stock
£121.56 £101.30

  28 Frame - Grassbag HA486018W
Frame - Grassbag
Out of stock
£44.39 £36.99

  29 Deflector - Rear HA480140
Deflector - Rear
In stock
£22.20 £18.50

  30 Decal - Blade Of Grass HA410064
Decal - Blade Of Grass
Out of stock
£9.84 £8.20

  31 Spring - Deflector Rh HA480131
Spring - Deflector Rh
Out of stock
£4.31 £3.59

  32 Rod - Deflector HA480062
Rod - Deflector
Out of stock
£44.66 £37.22

  34 Bolt HA09549
Bolt
Out of stock
£1.72 £1.43

  35 Knob-Hoc HA480134
Knob-Hoc
In stock
£2.34 £1.95

  36 Grassbag - Fabric HA486019
Grassbag - Fabric
In stock
£59.65 £49.71

  37 Spring - Deflector Lh HA480130
Spring - Deflector Lh
Out of stock
£4.91 £4.09

  38 Plate - Location Lh HA480082V
Plate - Location Lh
Out of stock
£7.51 £6.26

  40 Cover - Apto HA480014
Cover - Apto
Out of stock
£3.83 £3.19

  41 Bearing - Apto HA480050
Bearing - Apto
Out of stock
£12.19 £10.16

  42 Screw-Taptite HA09575
Screw-Taptite
In stock
£1.69 £1.41

  43 Bushing HA340154
Bushing
Out of stock
£5.95 £4.96

  44 Screw HA09349
Screw
Out of stock
£1.69 £1.41

  45 Screw HA09634
Screw
In stock
£1.61 £1.34

  46 Lever - Hoc HA480128
Lever - Hoc
Out of stock
£8.56 £7.13

  49 Screw-Taptite HA09545
Screw-Taptite
In stock
£1.81 £1.51

  50 Housing-Bearing. Roller HA219102
Housing-Bearing. Roller
In stock
£13.30 £11.08

  51 Roller - Rear W/A HA480151W
Roller - Rear W/A
Out of stock
£77.52 £64.60

  52 Spring Tension - Rear Axle HA480133
Spring Tension - Rear Axle
Out of stock
£3.89 £3.24

  53 Washer HA09262
Washer
Out of stock
£1.72 £1.43

  54 Screw M6 x 16 Taptite Hex Hd HA09365
Screw M6 x 16 Taptite Hex Hd
In stock
£1.72 £1.43

  55 Bushing-Roller. Oilite HA340129
Bushing-Roller. Oilite
In stock
£10.24 £8.53

  56 Freewheel-Roller HA340150
Freewheel-Roller
In stock
£14.89 £12.41

  57 Spacer Nylon HA340157
Spacer Nylon
In stock
£2.34 £1.95

  58 Shroud-Freewheel HA340168
Shroud-Freewheel
In stock
£12.26 £10.22

  59 Locknut HA340163
Locknut
In stock
£27.12 £22.60

  62 Frame - Rear Roller W/A HA480159W
Frame - Rear Roller W/A
Out of stock
£276.60 £230.50

  64 1/4-20 x 5/8 Hex Hd. Cap Screw HA1428
1/4-20 x 5/8 Hex Hd. Cap Screw
Out of stock
£1.63 £1.36

  65 Washer HA480097
Washer
In stock
£1.82 £1.52

  66 Cover - Transmission HA480043
Cover - Transmission
Out of stock
£24.72 £20.60

  67 Chain HA486037
Chain
In stock
£12.52 £10.43

  69 Plate-Securing HA219037
Plate-Securing
Out of stock
£1.69 £1.41

  70 Filler Throwplate HA480017W
Filler Throwplate
Out of stock
£23.09 £19.24

  71 Pulley - Sprocket Fixed Speed HA480171
Pulley - Sprocket Fixed Speed
Out of stock
£78.36 £65.30

  72 Belt - V Apto HA480063
Belt - V Apto
Out of stock
£19.43 £16.19

  73 Washer HA02575
Washer
Out of stock
£1.72 £1.43

  74 Circlip HA03096
Circlip
In stock
£1.73 £1.44

  75 Pulley - Jockey HA219156
Pulley - Jockey
Out of stock
£1.76 £1.47

  76 Washer-Starlock HA0201086
Washer-Starlock
In stock
£1.70 £1.42

  79 Pulley - Drive Apto HA480038
Pulley - Drive Apto
Out of stock
£93.72 £78.10

  80 Spring - Torsion Idler HA480066
Spring - Torsion Idler
Out of stock
£9.76 £8.13

  81 Bush HAHY4452
Bush
In stock
£3.41 £2.84

  82 Washer-Plain HA09280
Washer-Plain
Out of stock
£1.63 £1.36

  83 Washer-Spring HA09273
Washer-Spring
In stock
£1.81 £1.51

  84 Bolt HA09121
Bolt
Out of stock
£1.63 £1.36

  85 Drag Plate HA4014
Drag Plate
Out of stock
£12.24 £10.20

  86 Cutterblade - 19 Inch HA480149
Cutterblade - 19 Inch
In stock
£32.06 £26.72

  89 Spacer HA480072
Spacer
Out of stock
£6.89 £5.74

  90 Hub Cap HA219143
Hub Cap
Out of stock
£7.32 £6.10

  91 Nut Unf 1/2 HA4486
Nut Unf 1/2" Nyloc Ext Thin5/16"
Out of stock
£1.18 £0.98

  92 Wheel-Ribbed HA111-1250
Wheel-Ribbed
In stock
£32.40 £27.00

  93 Axle - Front W/A HA219031
Axle - Front W/A
Out of stock
£56.03 £46.69

  94 Moulding - Front Axle Bearing HA219036
Moulding - Front Axle Bearing
Out of stock
£4.94 £4.12

  95 Fin - Front Insert HA480013
Fin - Front Insert
In stock
£17.32 £14.43

  96 Decal HA410087
Decal
In stock
£5.86 £4.88

  97 Nut - M8 Shouldered HA480086
Nut - M8 Shouldered
Out of stock
£8.52 £7.10

  99 Plug HA300160
Plug
In stock
£1.69 £1.41

  100 Spring - Clip HA3966
Spring - Clip
Out of stock
£1.18 £0.98

  111 Guard Transmission HA480164
Guard Transmission
Out of stock
£6.41 £5.34

  113 Bracket Hoc HA480157W
Bracket Hoc
Out of stock
£38.96 £32.47

  114 Spring-Torsion. Hoc HA480132
Spring-Torsion. Hoc
Out of stock
£1.21 £1.01

  115 Rivet HA09336
Rivet
Out of stock
£1.55 £1.29

  116 Ratchet HA480156
Ratchet
Out of stock
£22.44 £18.70
