Hayter Harrier 48 AD VS - 491H (315000001 - 315999999) - Rear Roller Mainframe

Name: Hayter Harrier 48 AD VS - 491H (315000001 - 315999999) - Rear Roller Mainframe
SKU: harrier 48 ad vs 491h01 rear roller mainframe-group
Price: 1.06 GBP
Availability: InStock

Part No. harrier 48 ad vs 491h01 rear roller mainframe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 48 AD VS - 491H (315000001 - 315999999) - Rear Roller Mainframe

Description

Hayter Harrier 48 Autodrive Variable Speed Mower - 491H

Serial No: 315000001 - 315999999

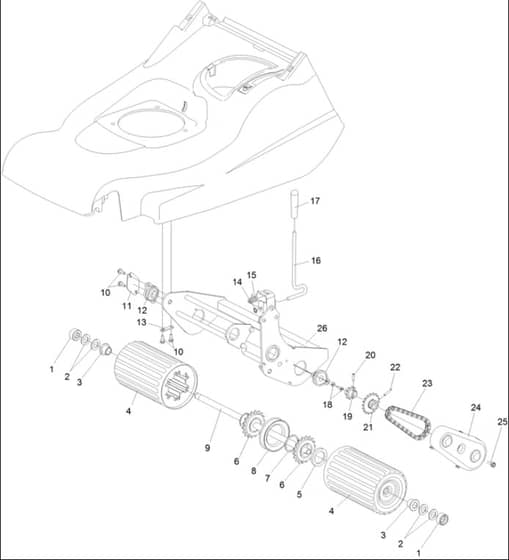

Rear Roller Mainframe - Parts Diagram

	Part No.	Details
1	HA111-1860 Available to backorder	Cover-Dust. Bushing	£8.66 £7.22
2	HA480097 In stock	Washer	£1.81 £1.51
3	HA340129 In stock	Bushing-Roller. Oilite	£10.93 £9.11
5	HA340163 In stock	Locknut	£28.92 £24.10
6	HA340150 In stock	Freewheel-Roller	£15.89 £13.24
7	HA340157 In stock	Spacer-Steel	£2.36 £1.97
8	HA340168 In stock	Shroud-Freewheel	£13.08 £10.90
9	HA111-1727 In stock	Shaft Roller Welded	£55.51 £46.26
10	HA09365 In stock	Screw-Taptite	£1.84 £1.53
11	HA111-1861 Available to backorder	Plate-Cover. Dust	£3.06 £2.55
12	HA111-1492 In stock	Bearing-Roller	£28.18 £23.48
13	HA219037 In stock	Plate-Securing	£1.80 £1.50
14	HA04020 In stock	Grip-Fix	£1.76 £1.47
15	HA480132 In stock	Spring-Torsion. Hoc	£1.27 £1.06
16	HA480128 Available to backorder	Lever - Hoc	£8.65 £7.21
17	HA480134 In stock	Knob-Hoc	£2.36 £1.97
18	HA09545 In stock	Screw-Taptite	£1.84 £1.53
19	HA411011 In stock	Sprocket-Gearbox	£14.56 £12.13
20	HA03997 In stock	Pin-Roll	£1.84 £1.53
21	HA111-1552 In stock	Sprocket-18T	£26.82 £22.35
22	HAHY03354 In stock	Pin-Spring. Selloc	£1.81 £1.51
23	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£13.09 £10.91
24	HA411013 In stock	Cover-Drive	£5.02 £4.18
25	HA09575 In stock	Screw-Taptite	£1.84 £1.53
26	HA111-1187-03 Available to backorder	Roller Frame Weld Assy	£199.08 £165.90
