Hayter Harrier 48 AD VS - 491H (313000001 - 313999999) - Rear Roller Frame

Name: Hayter Harrier 48 AD VS - 491H (313000001 - 313999999) - Rear Roller Frame
SKU: harrier 48 ad vs 491h03 rear roller frame-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 48 AD VS - 491H (313000001 - 313999999) - Rear Roller Frame

Description

Hayter Harrier 48 Autodrive Variable Speed Mower - 491H

Serial No: 313000001 - 313999999

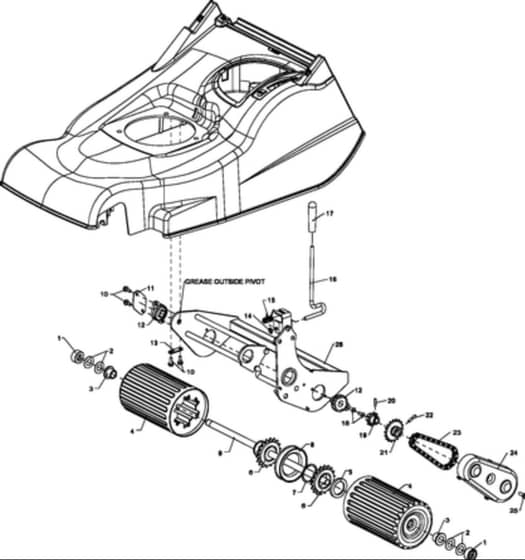

Rear Roller Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-1860 Available to backorder	Cover-Dust. Bushing	£7.84 £6.53
2	HA480097 In stock	Washer	£1.68 £1.40
3	HA340129 In stock	Bushing-Roller. Oilite	£9.90 £8.25
5	HA340163 Available to backorder	Locknut	£26.22 £21.85
6	HA340150 In stock	Freewheel-Roller	£14.40 £12.00
7	HA340157 In stock	Spacer-Steel	£2.14 £1.78
8	HA340168 In stock	Shroud-Freewheel	£11.86 £9.88
9	HA111-1727 Available to backorder	Shaft Roller Welded	£52.16 £43.47
10	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.68 £1.40
11	HA111-1861 Available to backorder	Plate-Cover. Dust	£2.96 £2.47
12	HA111-1492 In stock	Bearing-Roller	£25.56 £21.30
13	HA219037 Available to backorder	Plate-Securing	£1.70 £1.42
14	HA04020 In stock	Grip-Fix	£1.60 £1.33
15	HA480132 In stock	Spring-Torsion. Hoc	£1.14 £0.95
16	HA480128 Available to backorder	Lever - Hoc	£8.36 £6.97
17	HA480134 In stock	Knob-Hoc	£2.14 £1.78
18	HA09545 In stock	Screw-Taptite	£1.66 £1.38
19	HA411011 In stock	Sprocket-Gearbox	£13.20 £11.00
20	HA03997 In stock	Pin-Roll	£1.66 £1.38
21	HA111-1552 In stock	Sprocket-18T	£24.32 £20.27
22	HAHY03354 In stock	Pin-Spring. Selloc	£1.62 £1.35
23	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£11.88 £9.90
24	HA411013 In stock	Cover-Drive	£4.56 £3.80
25	HA09575 In stock	Screw-Taptite	£1.66 £1.38
26	HA111-1187-03 Available to backorder	Roller Frame Weld Assy	£199.12 £165.93
