Description

Hayter Harrier 48 Autodrive Mower - 490G

Serial No: 310000001 - 312999999

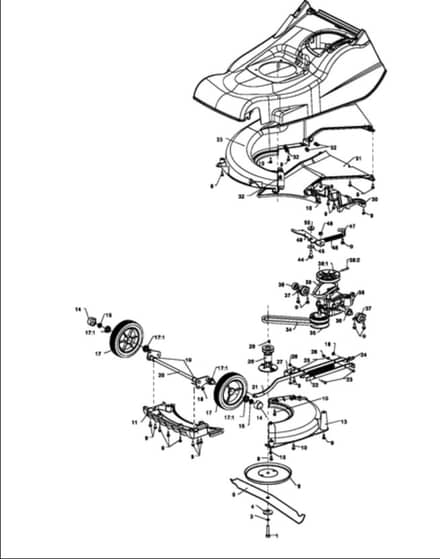

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  1 Bolt-Unf
Bolt-Unf
HA09788 In stock
Bolt-Unf
£1.50 £1.25

  3 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  4 Spacer-Distance. Cutterbar
Spacer-Distance. Cutterbar
HAHY4014 In stock
Spacer-Distance. Cutterbar
£11.52 £9.60

  5 Cutterblade - 19 Inch
Cutterblade - 19 Inch
HA480149 In stock
Cutterblade - 19 Inch
£30.25 £25.21

  8 Disc-Friction
Disc-Friction
HA410057W In stock
Disc-Friction
£27.11 £22.59

  9 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  10 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  11 Front_Fins
Front_Fins
HA111-0594 Out of stock
Front_Fins
£27.08 £22.57

  13 Underdeck Cover
Underdeck Cover
HA111-0133 In stock
Underdeck Cover
£28.70 £23.92

  14 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  15 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  17 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  17 Use Hy300154 Bearing 1/2 Ball Uralan (17.1)
Use Hy300154 Bearing 1/2 Ball Uralan (17.1)
HAHY300154 In stock
Use Hy300154 Bearing 1/2 Ball Uralan (17.1)
£3.72 £3.10

  18 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  19 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  20 Axle Front Assy
Axle Front Assy
HA111-0588 Out of stock
Axle Front Assy
£61.33 £51.11

  21 Rod-Connecting
Rod-Connecting
HA111-0202 In stock
Rod-Connecting
£19.55 £16.29

  22 Bar Spring Tension
Bar Spring Tension
HA111-0672 Out of stock
Bar Spring Tension
£10.88 £9.07

  23 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  24 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  25 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  26 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  27 Bracket Conn Rod
Bracket Conn Rod
HA111-0699 Out of stock
Bracket Conn Rod
£9.34 £7.78

  28 Carrier-Blade
Carrier-Blade
HA410078 In stock
Carrier-Blade
£41.78 £34.82

  29 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  30 Support Bracket Rear Pivot
Support Bracket Rear Pivot
HA111-3303 In stock
Support Bracket Rear Pivot
£10.97 £9.14

  31 Throwplate
Throwplate
HA111-0218 In stock
Throwplate
£23.76 £19.80

  32 Nut
Nut
HA410076 In stock
Nut
£1.82 £1.52

  33 Underdeck Chute
Underdeck Chute
HA111-0131 In stock
Underdeck Chute
£82.30 £68.58

  34 Belt-Variator (536)
Belt-Variator (536)
HA111-0771 In stock
Belt-Variator (536)
£11.45 £9.54

  35 Pulley Variator Asm
Pulley Variator Asm
HA411001 In stock
Pulley Variator Asm
£58.52 £48.77

  36 Bearing
Bearing
HA111-1276 In stock
Bearing
£5.94 £4.95

  37 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  38 Gearbox
Gearbox
HA111-7934 Out of stock
Gearbox
£133.12 £110.93

  38 Pulley (38.1)
Pulley (38.1)
HA111-1941 In stock
Pulley (38.1)
£9.72 £8.10

  38 Pin (38.2)
Pin (38.2)
HA411023 Out of stock
Pin (38.2)
£1.56 £1.30

  39 Belt Variator
Belt Variator
HA411025 In stock
Belt Variator
£9.73 £8.11

  44 Screw-Taptite
Screw-Taptite
HA09787 Out of stock
Screw-Taptite
£1.46 £1.22

  45 Washer-Plain
Washer-Plain
HA09270 Out of stock
Washer-Plain
£1.62 £1.35

  46 Spring-Variator
Spring-Variator
HAHY412004 Out of stock
Spring-Variator
£5.95 £4.96

  47 Bracket Cable
Bracket Cable
HAHY412003 Out of stock
Bracket Cable
£4.60 £3.83

  48 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  49 Lever Variable Pulley
Lever Variable Pulley
HA111-1480 Out of stock
Lever Variable Pulley
£12.11 £10.09

  50 Bushing-Pivot
Bushing-Pivot
HA411031 Out of stock
Bushing-Pivot
£8.41 £7.01


Description

Hayter Harrier 48 Autodrive Mower - 490G

Serial No: 310000001 - 312999999

Lower Mainframe - Parts Diagram
