Hayter Harrier 48 AD - 490F (490F290000001 - 490F290999999) - Lower Mainframe

Hayter Harrier 48 AD - 490F (490F290000001 - 490F290999999) - Lower Mainframe
Hayter Harrier 48 AD - 490F (490F290000001 - 490F290999999) - Lower Mainframe

Description

Hayter Harrier 48 Autodrive Mower - 490F

Serial No: 490F290000001 - 490F290999999

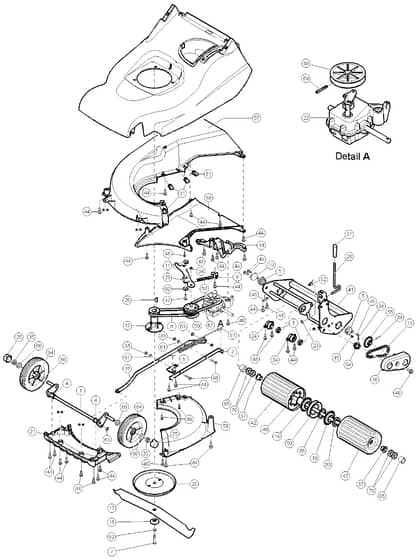

Lower Mainframe - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Axle Front Assy HA111-0588
Axle Front Assy
 In stock
£65.04 £54.20

  2 Bar Spring Tension HA111-0672
Bar Spring Tension
 Out of stock
£10.88 £9.07

  3 Bearing HA111-1276
Bearing
 In stock
£6.47 £5.39

  4 Bearing-Axle. Front HA410069
Bearing-Axle. Front
 In stock
£1.82 £1.52

  5 Bearing-Roller HA111-1492
Bearing-Roller
 In stock
£26.44 £22.03

  6 Belt-Variator (536) HA111-0771
Belt-Variator (536)
 In stock
£12.14 £10.12

  7 Bolt-Unf HA09788
Bolt-Unf
 In stock
£1.68 £1.40

  8 Bracket Cable HAHY412003
Bracket Cable
 Out of stock
£4.82 £4.02

  9 Bracket Conn Rod HA111-0699
Bracket Conn Rod
 Out of stock
£9.79 £8.16

  10 Plate-Cover. Dust HA111-1861
Plate-Cover. Dust
 Out of stock
£2.20 £1.83

  11 Bushing-Pivot HA411031
Bushing-Pivot
 In stock
£8.94 £7.45

  12 Carrier-Blade HA410078
Carrier-Blade
 In stock
£44.29 £36.91

  13 Chain-40 Pitches (3/8 Inch Link) HA411016
Chain-40 Pitches (3/8 Inch Link)
 In stock
£12.17 £10.14

  14 Support Bracket Rear Pivot HA111-3303
Support Bracket Rear Pivot
 Out of stock
£11.86 £9.88

  15 Rod-Connecting HA111-0202
Rod-Connecting
 In stock
£20.72 £17.27

  16 Cover-Drive HA411013
Cover-Drive
 In stock
£4.72 £3.93

  17 Cutterblade - 19 Inch HA480149
Cutterblade - 19 Inch
 In stock
£32.06 £26.72

  18 Spacer-Distance. Cutterbar HAHY4014
Spacer-Distance. Cutterbar
 In stock
£12.24 £10.20

  19 Freewheel-Roller HA340150
Freewheel-Roller
 In stock
£14.89 £12.41

  20 Disc-Friction HA410057W
Disc-Friction
 In stock
£28.68 £23.90

  21 Front_Fins HA111-0594
Front_Fins
 Out of stock
£28.96 £24.13

  22 Gearbox HA111-7934
Gearbox
 Out of stock
£135.48 £112.90

  23 Grip-Fix HA04020
Grip-Fix
 In stock
£1.74 £1.45

  24 Housing-Pivot Bearing. Lh HA410048
Housing-Pivot Bearing. Lh
 In stock
£8.88 £7.40

  25 Cap-Hub HA111-1251
Cap-Hub
 Out of stock
£1.91 £1.59

  26 Key-Woodruff HA1662
Key-Woodruff
 In stock
£1.63 £1.36

  27 Knob-Hoc HA480134
Knob-Hoc
 In stock
£2.34 £1.95

  28 Lever - Hoc HA480128
Lever - Hoc
 Out of stock
£8.56 £7.13

  29 Lever Variable Pulley HA111-1480
Lever Variable Pulley
 Out of stock
£12.71 £10.59

  30 Locknut HA340163
Locknut
 In stock
£27.12 £22.60

  31 Nut HA410076
Nut
 In stock
£2.03 £1.69

  32 Kit Standard Roller Shaft H48 HA111-1924
Kit Standard Roller Shaft H48
 Out of stock
£122.04 £101.70

  33 Nut-Nyloc HA09544
Nut-Nyloc
 Out of stock
£1.56 £1.30

  34 Nut-Hex. Ni HA09441
Nut-Hex. Ni
 Out of stock
£1.69 £1.41

  35 Nut-Unf HAHY4486
Nut-Unf
 In stock
£1.68 £1.40

  36 Spacer Nylon HA340157
Spacer Nylon
 In stock
£2.34 £1.95

  37 Bushing-Roller. Oilite HA340129
Bushing-Roller. Oilite
 In stock
£10.24 £8.53

  38 Pin-Roll HA03997
Pin-Roll
 In stock
£1.69 £1.41

  39 Pin-Spring. Selloc HAHY03354
Pin-Spring. Selloc
 In stock
£1.76 £1.47

  40 Plate-Securing HA219037
Plate-Securing
 Out of stock
£1.69 £1.41

  41 Roller Frame Weld Assy HA111-1187-03
Roller Frame Weld Assy
 Out of stock
£189.36 £157.80

  44 Screw M6 x 16 Taptite Hex Hd HA09365
Screw M6 x 16 Taptite Hex Hd
 In stock
£1.72 £1.43

  45 Screw-Taptite HA09545
Screw-Taptite
 In stock
£1.81 £1.51

  46 Screw-Taptite HA09575
Screw-Taptite
 In stock
£1.69 £1.41

  47 Screw-Taptite HA09787
Screw-Taptite
 Out of stock
£1.55 £1.29

  48 Screw HA09634
Screw
 In stock
£1.61 £1.34

  49 Shaft Roller Welded HA111-1727
Shaft Roller Welded
 Out of stock
£50.89 £42.41

  50 Shroud-Freewheel HA340168
Shroud-Freewheel
 In stock
£12.26 £10.22

  51 Spring-Counter Balance HA410050
Spring-Counter Balance
 In stock
£7.68 £6.40

  52 Spring-Torsion. Hoc HA480132
Spring-Torsion. Hoc
 In stock
£1.37 £1.14

  53 Spring-Variator HAHY412004
Spring-Variator
 In stock
£6.12 £5.10

  54 Sprocket-Gearbox HA411011
Sprocket-Gearbox
 In stock
£13.68 £11.40

  55 Sprocket-18T HA111-1552
Sprocket-18T
 In stock
£25.20 £21.00

  56 Throwplate HA111-0218
Throwplate
 In stock
£24.25 £20.21

  57 Underdeck Chute HA111-0131
Underdeck Chute
 In stock
£89.88 £74.90

  58 Underdeck Cover HA111-0133
Underdeck Cover
 In stock
£31.34 £26.12

  59 Pulley Variator Asm HA411001
Pulley Variator Asm
 In stock
£61.45 £51.21

  60 Washer-Plain HA09270
Washer-Plain
 Out of stock
£1.69 £1.41

  61 Washer-Plain HA09472
Washer-Plain
 Out of stock
£1.55 £1.29

  62 Washer-Spring HA09273
Washer-Spring
 In stock
£1.81 £1.51

  63 Washer-Starlock HA0201086
Washer-Starlock
 In stock
£1.81 £1.51

  64 Wheel-Ribbed HA111-1250
Wheel-Ribbed
 In stock
£32.40 £27.00

  65 Cover-Dust. Bushing HA111-1860
Cover-Dust. Bushing
 In stock
£8.10 £6.75

  66 Use Hy300154 Bearing 1/2 Ball Uralan HAHY300154
Use Hy300154 Bearing 1/2 Ball Uralan
 In stock
£3.72 £3.10

  67 Belt Variator HA411025
Belt Variator
 In stock
£10.32 £8.60

  68 Pulley HA111-1941
Pulley
 Out of stock
£10.31 £8.59

  69 Pin HA411023
Pin
 Out of stock
£1.63 £1.36

  70 Washer HA480097
Washer
 In stock
£1.82 £1.52


Description

Hayter Harrier 48 Autodrive Mower - 490F

Serial No: 490F290000001 - 490F290999999

Lower Mainframe - Parts Diagram
