Hayter Harrier 48 AD - 490D (490D260000001 - 490D260999999) - Upper Mainframe

Description

Hayter Harrier 48 Autodrive Mower - 490D

Serial No: 490D260000001 - 490D260999999

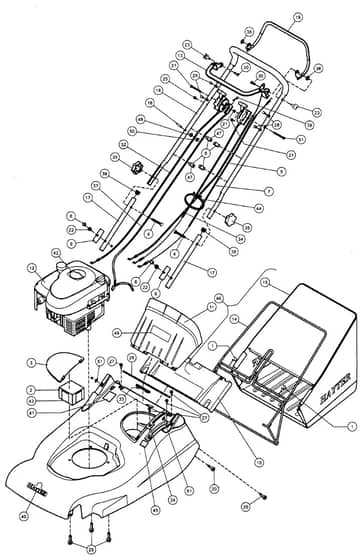

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-0458 Out of stock	Clip Grassbag Flap	£1.55 £1.29
3	HA111-0595 In stock	Battery Cover	£11.58 £9.65
4	HAHY226024 In stock	Bolt-Handlebar	£1.79 £1.49
5	HA111-0700 In stock	Cable Engine Brake	£10.69 £8.91
6	HA410037 In stock	Guide-Cable	£1.63 £1.36
7	HA111-0701 Out of stock	Cable_Clutch	£26.28 £21.90
8	HAHY234051 Out of stock	Cap-Nut	£1.64 £1.37
9	HA340028 In stock	Plate-Clamp. Handlebar	£6.59 £5.49
10	HA111-0196 Out of stock	Flap_Grassbag	£24.00 £20.00
11	HA111-0633 Out of stock	Deflector	£19.94 £16.62
13	HA111-9662 In stock	Lever-Engine	£18.86 £15.72
15	HA111-1021 Out of stock	Kit - Grassbag and Cable Ties	£63.24 £52.70
16	HA305093 Out of stock	Guide Rope	£1.74 £1.45
17	HA410034W In stock	Handlebar - Lower	£7.31 £6.09
18	HA341029 Out of stock	Handlebar Upper	£88.80 £74.00
19	HA111-1921-03 In stock	Lever-Clutch	£45.06 £37.55
20	HA09379 Out of stock	Bolt-Coach	£1.69 £1.41
21	HA09438 In stock	Nut-Nyloc	£1.61 £1.34
22	HA09441 Out of stock	Nut-Hex. Ni	£1.69 £1.41
23	HA340182 Out of stock	Pin-Pivot	£1.70 £1.42
24	HA111-0201 Out of stock	Ratchet Plate Hoc	£6.95 £5.79
25	HA341033 In stock	Fastener-Drive	£1.69 £1.41
26	HA560017 Out of stock	Rod-Deflector	£5.39 £4.49
27	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
28	HA300144 Out of stock	Fastener Drive	£1.69 £1.41
29	HA09349 Out of stock	Screw	£1.69 £1.41
30	HA09687 In stock	Screw	£1.69 £1.41
31	HA09780 In stock	Setscrew	£1.96 £1.63
32	HA410035 In stock	Control - Throttle	£33.12 £27.60
33	HA410030 In stock	Spring-Deflector	£6.36 £5.30
34	HA111-1193 In stock	Cable Variator	£36.16 £30.13
35	HA480088 In stock	Knob-Handlebar	£5.64 £4.70
36	HA09688 In stock	Washer	£0.84 £0.70
39	HA300160 In stock	Plug	£1.69 £1.41
40	HA410087 In stock	Decal	£5.86 £4.88
44	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
45	HA320006 Out of stock	Decal-Hoc	£1.81 £1.51
48	HA09472 Out of stock	Washer-Plain	£1.55 £1.29
49	HA111-0083 Out of stock	Decal-Safety	£2.58 £2.15
50	HA09544 Out of stock	Nut-Nyloc	£1.74 £1.45
51	HA04020 In stock	Grip-Fix	£1.74 £1.45
