Hayter Harrier 48 AD - 220T (220T012041 - 220T099999) - Mainframe Assembly

Description

Hayter Harrier 48 Autodrive Mower - 220T

Serial No: 220T012041 - 220T099999

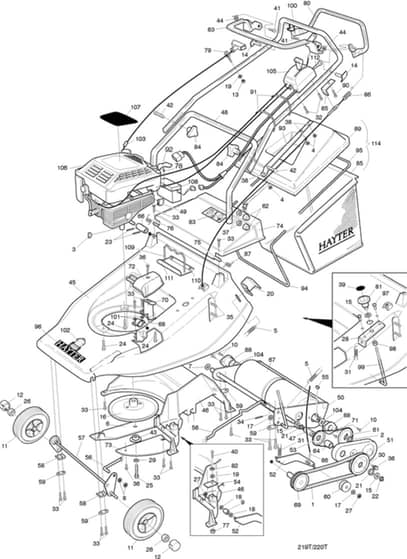

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA219110 Out of stock	Belt V	£20.12 £16.77
2	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
3	HA1662 In stock	Key-Woodruff	£1.46 £1.22
4	HA09257 Out of stock	Washer	£1.63 £1.36
5	HA5421 Out of stock	Spring Rear Axle Tension	£2.86 £2.38
6	HA4013 In stock	Cutterbar 19" For Harrier	£30.25 £25.21
8	HA04020 In stock	Grip-Fix	£1.62 £1.35
9	HAHY4452 In stock	Bush	£3.41 £2.84
10	HA09545 In stock	Screw-Taptite	£1.62 £1.35
11	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
12	HA219143 Out of stock	Hub Cap	£7.26 £6.05
13	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
14	HA340182 In stock	Pin-Pivot	£1.62 £1.35
15	HA02575 In stock	Washer	£1.63 £1.36
16	HA397042W Out of stock	Friction Disc W/A	£55.30 £46.08
17	HA09266 Out of stock	Washer-Plain	£1.44 £1.20
18	HA09280 Out of stock	Washer-Plain	£1.56 £1.30
19	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
21	HA02708 In stock	Circlip Ext 3/4"	£1.56 £1.30
22	HA03096 In stock	Circlip	£1.63 £1.36
23	HA03997 In stock	Pin-Roll	£1.62 £1.35
24	HA09349 Out of stock	Screw	£1.60 £1.33
25	HA09116 Out of stock	Screw Hex Hd 3/8 Unf x11/4	£1.63 £1.36
26	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
27	HA0201086 In stock	Washer-Starlock	£1.62 £1.35
28	HA219012 Out of stock	Plate Height Adj	£3.32 £2.77
29	HA09273 In stock	Washer-Spring	£1.62 £1.35
31	HA1246 Out of stock	Spring Clutch Shoe Return	£3.24 £2.70
33	HA09575 In stock	Screw-Taptite	£1.62 £1.35
34	HA09303 Out of stock	1/2"x3/32" Split Pin	£1.63 £1.36
35	HA09548 In stock	Bolt-Coach	Was £1.63 £1.36 Special Price £0.50 £0.42
36	HA09546 Out of stock	Screw-Taptite	£1.64 £1.37
37	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
38	HA09320 Out of stock	Rivet	£1.63 £1.36
40	HA09547 Out of stock	Screw-HH	£1.63 £1.36
41	HA09687 In stock	Screw	£1.62 £1.35
42	HA09569 Out of stock	Bolt Coach M8 x 45 C/Sq Gd 4.6	£1.52 £1.27
43	HAHY216008 Out of stock	Piece Cutterbar Distance	£13.22 £11.02
44	HA09688 In stock	Washer	£0.68 £0.57
47	HA219095 Out of stock	Idler Sprocket Sleeve	£21.82 £18.18
49	HA219097 Out of stock	Clip - Cable	£1.63 £1.36
53	HA219106 In stock	Sprocket 10T	£12.89 £10.74
54	HAHY219023 Out of stock	Lever Jockey Assy	£56.76 £47.30
56	HA219030 In stock	Connecting Rod	£22.07 £18.39
57	HA219031 Out of stock	Axle - Front W/A	£53.35 £44.46
58	HA219036 Out of stock	Moulding - Front Axle Bearing	£4.94 £4.12
59	HA219037 Out of stock	Plate-Securing	£1.62 £1.35
60	HA219156 Out of stock	Pulley - Jockey	£1.68 £1.40
61	HA219051 Out of stock	17T Sprocket Assy	£22.31 £18.59
62	HAHY234051 In stock	Cap-Nut	£1.56 £1.30
63	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
64	HA219053 Out of stock	Sleeve Sprocket Tube	£9.47 £7.89
66	HA219142 Out of stock	Coupling	£32.76 £27.30
68	HA219060 Out of stock	Moulding Bearing Housing	£9.00 £7.50
69	HA219140 Out of stock	Pulley Assy	£45.01 £37.51
70	HA219064 Out of stock	Bracket Belt Guide	£8.27 £6.89
71	HA219054 In stock	Chain 30 Pitch 1/2" x 1/8"	£14.45 £12.04
72	HA219067 Out of stock	Cover Pto	£17.53 £14.61
73	HA219069 Out of stock	Underguard	£29.92 £24.93
74	HA219072 Out of stock	Deflector Rear	£43.51 £36.26
75	HA219074 Out of stock	Rod Pivot	£11.00 £9.17
76	HA219096 In stock	Spring Deflector R/H	£3.23 £2.69
77	HA09437 Out of stock	Nut	£1.63 £1.36
79	HA305093 Out of stock	Guide Rope	£1.62 £1.35
80	HA111-1921-03 In stock	Lever-Clutch	£42.52 £35.43
82	HA09474 Out of stock	Washer-Spring	£1.56 £1.30
84	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
85	HA219081 Out of stock	Grassbag Fabric	£44.80 £37.33
87	HA219075 In stock	Spring Deflector L/H	£3.23 £2.69
88	HA219102 In stock	Housing-Bearing. Roller	£12.67 £10.56
89	HA219082 Out of stock	Cover Moulding	£67.88 £56.57
91	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
93	HA219083 Out of stock	Handle Grassbag	£16.63 £13.86
94	HA219077 Out of stock	Frame Grassbag	£29.83 £24.86
96	HA410087 In stock	Label Hayter	£4.79 £3.99
99	HA219126 Out of stock	Screw Height Adj.	£10.72 £8.93
101	HA340154 Out of stock	Bushing	£5.66 £4.72
103	HAMU42189 Out of stock	Rope Stop	£5.00 £4.17
104	HA4017 Out of stock	Washer Nylon	£2.75 £2.29
108	HAHY220015 Out of stock	Battery Replacement Kit	£89.29 £74.41
111	HAHY220013 Out of stock	Battery Bracket	£22.36 £18.63
112	HAHY6426 Out of stock	Key Pair - Electric Start	£6.95 £5.79
