Hayter Harrier 48 AD - 220R (220R001001 - 220R099999) - Mainframe Assembly

Name: Hayter Harrier 48 AD - 220R (220R001001 - 220R099999) - Mainframe Assembly
SKU: harrier 48 ad psei697 mainframe assembly-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 48 AD - 220R (220R001001 - 220R099999) - Mainframe Assembly

Description

Hayter Harrier 48 Autodrive Mower - 220R

Serial No: 220R001001 - 220R099999

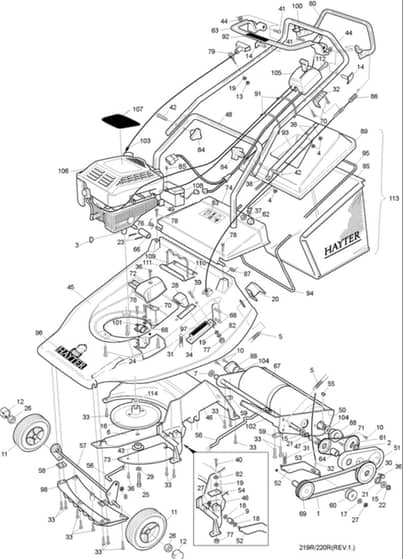

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA219110 Available to backorder	Belt V	£19.46 £16.22
2	HA1428 Available to backorder	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.68 £1.40
3	HA1662 In stock	Key-Woodruff	£1.50 £1.25
4	HA09257 Available to backorder	Washer	£1.58 £1.32
6	HA480149 In stock	Cutterbar 19" For Harrier	£26.36 £21.97
8	HA04020 In stock	Grip-Fix	£1.60 £1.33
9	HAHY4452 Available to backorder	Bush	£3.50 £2.92
10	HA09545 In stock	Screw-Taptite	£1.66 £1.38
11	HA111-1250 In stock	Wheel-Ribbed	£33.18 £27.65
12	HA219143 Available to backorder	Hub Cap	£7.02 £5.85
13	HA09544 Available to backorder	Nut-Nyloc	£1.60 £1.33
14	HA340182 In stock	Pin-Pivot	£1.66 £1.38
15	HA02575 Available to backorder	Washer	£1.58 £1.32
16	HA397042W Available to backorder	Friction Disc W/A	£56.66 £47.22
17	HA09266 Available to backorder	Washer-Plain	£1.40 £1.17
18	HA09280 Available to backorder	Washer-Plain	£1.50 £1.25
19	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
21	HA02708 In stock	Circlip Ext 3/4"	£0.48 £0.40
22	HA03096 In stock	Circlip	£1.58 £1.32
23	HA03997 In stock	Pin-Roll	£1.66 £1.38
24	HA09349 In stock	Screw	£1.66 £1.38
25	HA09116 Available to backorder	Screw Hex Hd 3/8 Unf x11/4	£1.58 £1.32
26	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.62 £1.35
27	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
28	HA330053 Available to backorder	Cover Lever	£5.42 £4.52
29	HA09273 In stock	Washer-Spring	£1.66 £1.38
31	HA1246 Available to backorder	Spring Clutch Shoe Return	£3.14 £2.62
34	HA340102 Available to backorder	Plate Ratchet	£31.70 £26.42
35	HA09548 Available to backorder	Bolt	£1.58 £1.32
36	HA09546 Available to backorder	Screw-Taptite	£1.68 £1.40
37	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
38	HA09320 Available to backorder	Rivet	£1.58 £1.32
39	HA09668 Available to backorder	Bolt-Coach	£1.50 £1.25
40	HA09547 Available to backorder	Screw-HH	£1.58 £1.32
41	HA09687 In stock	Screw	£1.68 £1.40
42	HA09569 Available to backorder	Bolt Coach M8 x 45 C/Sq Gd 4.6	£1.48 £1.23
43	HAHY216008 Available to backorder	Piece Cutterbar Distance	£12.78 £10.65
44	HA09688 Available to backorder	Washer	£0.70 £0.58
47	HA219095 Available to backorder	Idler Sprocket Sleeve	£21.08 £17.57
49	HA219097 Available to backorder	Clip - Cable	£1.68 £1.40
52	HAHY219023 Available to backorder	Lever Jockey Assy	£58.16 £48.47
53	HA219106 In stock	Sprocket 10T	£12.46 £10.38
56	HA219030 In stock	Connecting Rod	£21.34 £17.78
57	HA219031 Available to backorder	Axle - Front W/A	£51.58 £42.98
58	HA219036 Available to backorder	Moulding - Front Axle Bearing	£5.92 £4.93
59	HA219037 Available to backorder	Plate-Securing	£1.70 £1.42
60	HA219156 In stock	Pulley - Jockey	£1.72 £1.43
61	HA219051 Available to backorder	17T Sprocket Assy	£21.56 £17.97
62	HAHY234051 In stock	Cap-Nut	£1.60 £1.33
63	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
64	HA219053 Available to backorder	Sleeve Sprocket Tube	£9.16 £7.63

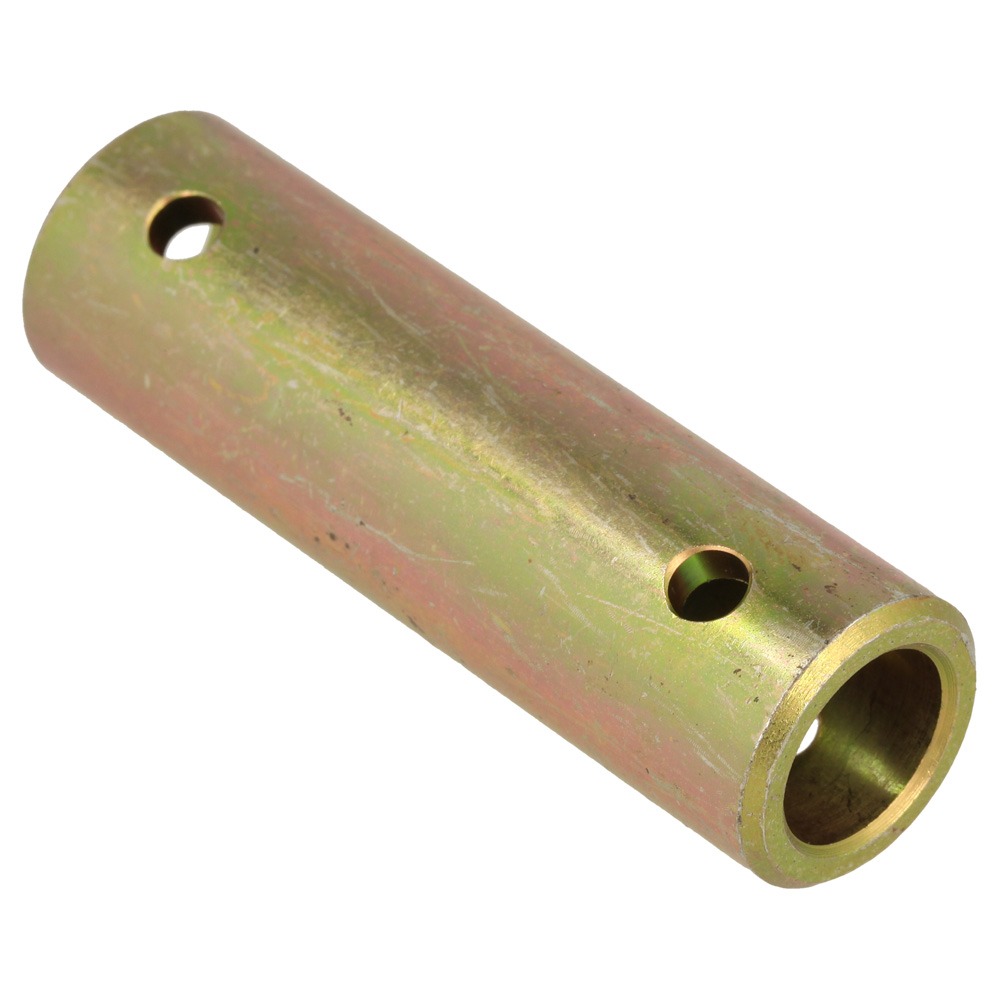

66	HA219142 Available to backorder	Coupling	£31.66 £26.38
68	HA219060 In stock	Moulding Bearing Housing	£8.70 £7.25
69	HA219140 Available to backorder	Pulley Assy	£54.52 £45.43
70	HA219064 Available to backorder	Bracket Belt Guide	£8.00 £6.67
71	HA219054 Available to backorder	Chain 30 Pitch 1/2" x 1/8"	£13.96 £11.63
72	HA219067 Available to backorder	Cover Pto	£16.94 £14.12

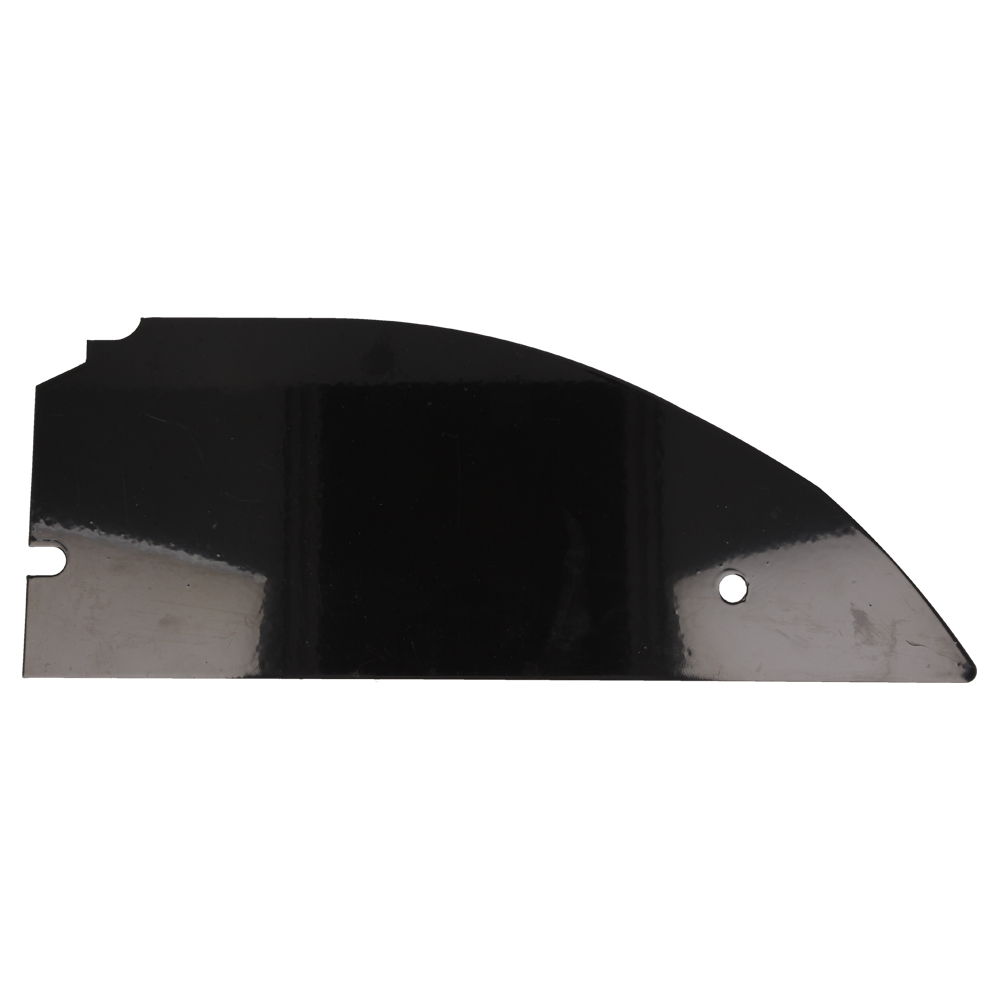

73	HA219069 Available to backorder	Underguard	£28.92 £24.10
74	HA219072 Available to backorder	Deflector Rear	£42.06 £35.05
75	HA219074 Available to backorder	Rod Pivot	£10.64 £8.87
76	HA219096 In stock	Spring Deflector R/H	£3.12 £2.60
77	HA09437 Available to backorder	Nut	£1.58 £1.32
78	HA09575 In stock	Screw-Taptite	£1.66 £1.38
79	HA305093 In stock	Guide Rope	£1.70 £1.42
80	HA111-1921-03 In stock	Lever-Clutch	£43.56 £36.30
82	HA09474 Available to backorder	Washer-Spring	£1.60 £1.33
83	HA111-0083 Available to backorder	Decal - Caution	£2.36 £1.97
84	HA226013 In stock	Triangular Handwheel	£6.98 £5.82
85	HA219081 Available to backorder	Grassbag Fabric	£43.30 £36.08
87	HA219075 In stock	Spring Deflector L/H	£3.12 £2.60
88	HA219102 In stock	Housing-Bearing. Roller	£12.98 £10.82
89	HA219082 Available to backorder	Cover Moulding	£65.62 £54.68
93	HA219083 Available to backorder	Handle Grassbag	£16.08 £13.40
94	HA219077 Available to backorder	Frame Grassbag	£28.84 £24.03
96	HA410087 In stock	Decal	£5.66 £4.72
101	HA340154 Available to backorder	Bushing	£5.80 £4.83
103	HAMU42189 Available to backorder	Rope Stop	£4.84 £4.03
108	HAHY220015 Available to backorder	Battery Replacement Kit	£94.24 £78.53
112	HAHY6426 Available to backorder	Key Pair - Electric Start	£6.72 £5.60
