Hayter Harrier 48 5 Speed ES Au - 488S (488S001001 - 488S099999) - Parts Assembly

Name: Hayter Harrier 48 5 Speed ES Au - 488S (488S001001 - 488S099999) - Parts Assembly
SKU: harrier 48 5 speed es au psei719 parts assembly-group
Price: 0.60 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 48 5 Speed ES Au - 488S (488S001001 - 488S099999) - Parts Assembly

Description

Hayter Harrier 48 5 Speed Electric Start Au Mower - 488S

Serial No: 488S001001 - 488S099999

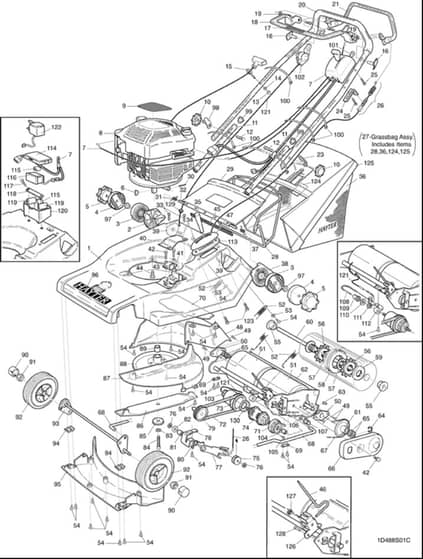

Parts Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA480084W Out of stock	Clamp - Boss Inner	£11.05 £9.21
4	HA480085W In stock	Clamp - Boss Outer	Was £8.35 £6.96 Special Price £4.63 £3.86
5	HA480054 Out of stock	Handwheel - Assy	£7.37 £6.14
6	HA1662 Out of stock	Key-Woodruff	£1.55 £1.29
10	HA480088 In stock	Knob-Handlebar	£5.63 £4.69
12	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
13	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
14	HA09472 In stock	Washer-Plain	£1.55 £1.29
15	HA305093 Out of stock	Guide Rope	£1.62 £1.35
16	HA480079 Out of stock	Pin - Pivot	£0.89 £0.74
18	HA111-9662 In stock	Lever-Engine	£18.71 £15.59
19	HA09688 In stock	Washer	£0.72 £0.60
21	HA111-1921-03 In stock	Lever-Clutch	£44.64 £37.20
22	HA09687 In stock	Screw	£1.69 £1.41
23	HA480123 Out of stock	Cable Guide Spring	£2.68 £2.23
26	HA480094 In stock	Cable - Clutch	£21.10 £17.58
29	HA480140 In stock	Deflector - Rear	£23.27 £19.39
30	HA03997 In stock	Pin-Roll	£1.69 £1.41
31	HA480131 Out of stock	Spring - Deflector Rh	£4.31 £3.59
32	HA480062 Out of stock	Rod - Deflector	£44.66 £37.22
34	HA09549 Out of stock	Bolt	£1.72 £1.43
35	HA480134 In stock	Knob-Hoc	£2.09 £1.74
37	HA480130 Out of stock	Spring - Deflector Lh	£4.91 £4.09
38	HA480082V Out of stock	Plate - Location Lh	£7.51 £6.26
40	HA480014 Out of stock	Cover - Apto	£3.83 £3.19
41	HA480050 Out of stock	Bearing - Apto	£12.19 £10.16
42	HA09575 In stock	Screw-Taptite	£1.69 £1.41
43	HA340154 Out of stock	Bushing	£5.95 £4.96
44	HA09349 Out of stock	Screw	£1.69 £1.41
46	HA480128 Out of stock	Lever - Hoc	£8.56 £7.13
49	HA09545 In stock	Screw-Taptite	£1.61 £1.34
50	HA480037 In stock	Bearing - Roller Housing	£14.11 £11.76
52	HA480133 Out of stock	Spring Tension - Rear Axle	£3.89 £3.24
53	HA09262 Out of stock	Washer	£1.72 £1.43
54	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.72 £1.43
55	HA340129 In stock	Bushing-Roller. Oilite	£10.14 £8.45
56	HA340150 In stock	Freewheel-Roller	£14.05 £11.71
57	HA340157 In stock	Spacer Nylon	£2.09 £1.74
58	HA340168 In stock	Shroud-Freewheel	£11.57 £9.64
59	HA340163 In stock	Locknut	£25.60 £21.33
61	HA480039 Out of stock	Sprocket - 22 Teeth	£47.71 £39.76
64	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
65	HA480097 In stock	Washer	£1.72 £1.43
66	HA480043 In stock	Cover - Transmission	£24.72 £20.60
67	HA486037 In stock	Chain	£12.52 £10.43
69	HA219037 Out of stock	Plate-Securing	£1.69 £1.41
70	HA480017W Out of stock	Filler Throwplate	£23.09 £19.24
71	HA485025 Out of stock	Sprocket - Vari-Speed	£7.88 £6.57
72	HA488022 Out of stock	Belt - V Apto	£33.35 £27.79
75	HA219156 Out of stock	Pulley - Jockey	£1.68 £1.40
76	HA0201086 In stock	Washer-Starlock	£1.61 £1.34
79	HA480038 Out of stock	Pulley - Drive Apto	£91.32 £76.10
80	HA480066 Out of stock	Spring - Torsion Idler	£9.76 £8.13
81	HAHY4452 In stock	Bush	£3.41 £2.84
82	HAHY09485 Out of stock	Washer-Plain	£1.72 £1.43
83	HA09273 In stock	Washer-Spring	£1.61 £1.34
84	HA09121 Out of stock	Bolt	£1.63 £1.36
85	HAHY216008 Out of stock	Piece Cutterbar Distance	£13.22 £11.02
86	HA4013 Out of stock	Cutterbar 19" For Harrier	£30.25 £25.21
89	HA480072 Out of stock	Spacer	£6.89 £5.74
90	HA219143 Out of stock	Hub Cap	£7.62 £6.35
91	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
92	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
93	HA219031 Out of stock	Axle - Front W/A	£56.03 £46.69
94	HA219036 Out of stock	Moulding - Front Axle Bearing	£4.94 £4.12
95	HA480013 In stock	Fin - Front Insert	£17.32 £14.43
96	HA410087 In stock	Decal	£5.52 £4.60
97	HA480086 Out of stock	Nut - M8 Shouldered	£8.52 £7.10
99	HA300160 In stock	Plug	£1.69 £1.41
100	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
101	HAHY6426 Out of stock	Key Pair - Electric Start	£7.30 £6.08
106	HA09480 Out of stock	Washer-Lock	£1.67 £1.39
115	HA488023 Out of stock	Pad-Foam. Short	£1.72 £1.43
116	HAHY220015 Out of stock	Battery Replacement Kit	£87.00 £72.50
117	HA09546 Out of stock	Screw-Taptite	£1.72 £1.43
118	HAHY226094 Out of stock	Clamp Battery Case	£16.12 £13.43
122	HA111-8160 Out of stock	Power Supply Asm [Type Fghps/Hayter]	£26.51 £22.09
123	HA09634 In stock	Screw	£1.61 £1.34
124	HA486021 Out of stock	Grassbag Top	£121.56 £101.30
126	HA480157W Out of stock	Bracket Hoc	£38.96 £32.47
127	HA480132 In stock	Spring-Torsion. Hoc	£1.21 £1.01
128	HA09336 Out of stock	Rivet	£1.55 £1.29
