Description

Hayter Harrier 41 - Push Mower - 410G

Serial No: 311000001 - 311999999

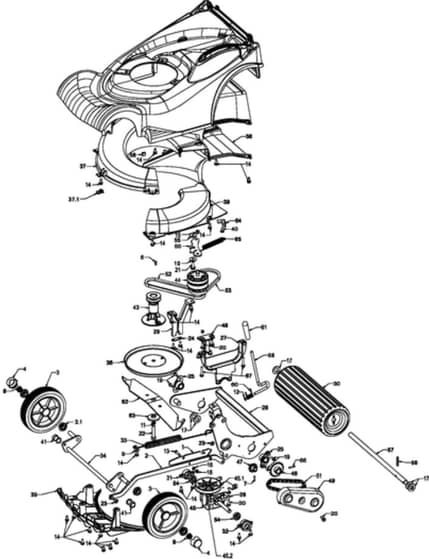

Lower Mainframe - Parts Diagram

Ref. Img. Part No. Details
  0 Kit 2 Piece Con Rod
Kit 2 Piece Con Rod
HA111-1196 Out of stock
Kit 2 Piece Con Rod
£46.72 £38.93

  1 Mount-Spring
Mount-Spring
HA111-0073 Out of stock
Mount-Spring
£3.98 £3.32

  2 Rod - Connecting
Rod - Connecting
HA111-1050 Out of stock
Rod - Connecting
£27.24 £22.70

  3 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  3 Use Hy300154 Bearing 1/2 Ball Uralan (3.1)
Use Hy300154 Bearing 1/2 Ball Uralan (3.1)
HAHY300154 In stock
Use Hy300154 Bearing 1/2 Ball Uralan (3.1)
£3.72 £3.10

  4 Cap-Hub
Cap-Hub
HA111-1251 Out of stock
Cap-Hub
£1.82 £1.52

  6 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  8 Nut-Unf
Nut-Unf
HAHY4486 In stock
Nut-Unf
£1.58 £1.32

  9 Washer
Washer
HA09262 Out of stock
Washer
£1.63 £1.36

  11 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  12 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  13 Screw-HH
Screw-HH
HA09364 Out of stock
Screw-HH
£1.56 £1.30

  14 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  16 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  17 Washer-Plain
Washer-Plain
HA09491 Out of stock
Washer-Plain
£1.66 £1.38

  18 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  19 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  20 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  22 Bolt-Unf
Bolt-Unf
HA09788 In stock
Bolt-Unf
£1.50 £1.25

  23 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  24 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  25 Housing-Bearing. Roller
Housing-Bearing. Roller
HA219102 In stock
Housing-Bearing. Roller
£12.67 £10.56

  27 Bracket - Roller Suport Lh
Bracket - Roller Suport Lh
HAHY410002 In stock
Bracket - Roller Suport Lh
£28.38 £23.65

  28 Frame - Roller W/A
Frame - Roller W/A
HA410011W In stock
Frame - Roller W/A
£132.32 £110.27

  29 Bracket - Roller Suport Rh
Bracket - Roller Suport Rh
HA410016 In stock
Bracket - Roller Suport Rh
£22.85 £19.04

  30 Roller
Roller
HA410044 In stock
Roller
£68.53 £57.11

  32 Housing-Pivot Bearing. Lh
Housing-Pivot Bearing. Lh
HA410048 In stock
Housing-Pivot Bearing. Lh
£8.34 £6.95

  33 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  34 Axle - Front W/A
Axle - Front W/A
HA410051 Out of stock
Axle - Front W/A
£58.15 £48.46

  35 Fins
Fins
HA410055 Out of stock
Fins
£9.13 £7.61

  36 Disc-Friction
Disc-Friction
HA410057W In stock
Disc-Friction
£27.11 £22.59

  37 Chute
Chute
HA410058 In stock
Chute
£47.32 £39.43

  37 Nut (37.1)
Nut (37.1)
HA410076 In stock
Nut (37.1)
£1.82 £1.52

  38 Throwplate
Throwplate
HA410059 In stock
Throwplate
£9.71 £8.09

  39 Cover - Underdeck
Cover - Underdeck
HA410060 In stock
Cover - Underdeck
£22.12 £18.43

  41 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  43 Carrier-Blade
Carrier-Blade
HA410078 In stock
Carrier-Blade
£41.78 £34.82

  45 Pin (45.1)
Pin (45.1)
HA411023 Out of stock
Pin (45.1)
£1.56 £1.30

  45 Pulley (45.2)
Pulley (45.2)
HA411019 In stock
Pulley (45.2)
£14.76 £12.30

  49 Cover-Drive
Cover-Drive
HA411013 In stock
Cover-Drive
£3.78 £3.15

  56 Key
Key
HA411037 Out of stock
Key
£5.02 £4.18

  57 Shaft - Roller
Shaft - Roller
HA411038 In stock
Shaft - Roller
£30.62 £25.52

  58 Fastner - Panel Edge
Fastner - Panel Edge
HA410082 Out of stock
Fastner - Panel Edge
£1.56 £1.30

  59 Lever - Hoc
Lever - Hoc
HA480128 Out of stock
Lever - Hoc
£8.16 £6.80

  60 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  61 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  62 Cutter Blade
Cutter Blade
HAHY201026 In stock
Cutter Blade
£29.52 £24.60

  63 Spacer-Distance. Cutterbar
Spacer-Distance. Cutterbar
HAHY4014 In stock
Spacer-Distance. Cutterbar
£11.52 £9.60

  67 Screw - Taptite M6 x 35
Screw - Taptite M6 x 35
HA09786 In stock
Screw - Taptite M6 x 35
£1.56 £1.30


Description

Hayter Harrier 41 - Push Mower - 410G

Serial No: 311000001 - 311999999

Lower Mainframe - Parts Diagram
