Description

Hayter Harrier 41 - Pro Autodrive Fixed Speed Mower - 379B

Serial No: 409296488 - 999999999

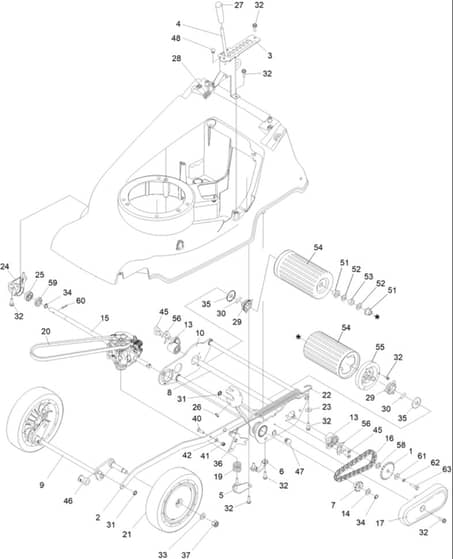

Traction - Suspension - Hoc - Parts Diagram

Ref. Img. Part No. Details
  1 Sprocket
Sprocket
HA134-3806 In stock
Sprocket
£7.67 £6.39

  2 Connecting Rod Wa
Connecting Rod Wa
HA111-9459 Out of stock
Connecting Rod Wa
£9.30 £7.75

  3 Hoc Tower Assembly
Hoc Tower Assembly
HA111-8675 In stock
Hoc Tower Assembly
Was £13.93 £11.61 Special Price £8.54 £7.12

  4 Lever-Hoc
Lever-Hoc
HA111-8705 In stock
Lever-Hoc
£4.46 £3.72

  5 Gearbox Bracket Assembly
Gearbox Bracket Assembly
HA111-8584 Out of stock
Gearbox Bracket Assembly
£4.98 £4.15

  6 Axle- Support. Rear
Axle- Support. Rear
HA111-8670 In stock
Axle- Support. Rear
£2.36 £1.97

  7 Sprocket
Sprocket
HA134-3805 In stock
Sprocket
£12.10 £10.08

  8 Shaft-Roller [41]
Shaft-Roller [41]
HA134-5250 In stock
Shaft-Roller [41]
£34.02 £28.35

  9 Front Axle Assembly Hd
Front Axle Assembly Hd
HA134-6055 In stock
Front Axle Assembly Hd
£28.86 £24.05

  10 Rear Axle Frame Assembly
Rear Axle Frame Assembly
HA134-2160-03 In stock
Rear Axle Frame Assembly
£62.54 £52.12

  13 Bush. Rear Roller
Bush. Rear Roller
HA134-2635 In stock
Bush. Rear Roller
£11.30 £9.42

  14 Washer-Thrust
Washer-Thrust
HA111-8216 In stock
Washer-Thrust
£1.10 £0.92

  15 Mc600 Fixed Speed Gearbox (41)
Mc600 Fixed Speed Gearbox (41)
HA134-4544 Out of stock
Mc600 Fixed Speed Gearbox (41)
£116.30 £96.92

  16 Chain 42 Pitches 3/8
Chain 42 Pitches 3/8
HA134-2655 In stock
Chain 42 Pitches 3/8" Inc Link
£11.80 £9.83

  17 Chain Cover Asm
Chain Cover Asm
HA134-4619 In stock
Chain Cover Asm
£21.71 £18.09

  19 Spring-Mounting. Gearbox
Spring-Mounting. Gearbox
HA111-8587 Out of stock
Spring-Mounting. Gearbox
£13.26 £11.05

  20 V Belt
V Belt
HA111-8028 In stock
V Belt
£20.12 £16.77

  21 Wheel Asm-8Inch Semi-Pneu
Wheel Asm-8Inch Semi-Pneu
HA111-9270 In stock
Wheel Asm-8Inch Semi-Pneu
£26.26 £21.88

  22 Spring-Counter Balance
Spring-Counter Balance
HA410050 In stock
Spring-Counter Balance
£7.50 £6.25

  23 Washer
Washer
HA09263 Out of stock
Washer
£1.56 £1.30

  24 Rear Frame Bearing Mount
Rear Frame Bearing Mount
HA111-8576 In stock
Rear Frame Bearing Mount
£7.27 £6.06

  25
HA134-2889 In stock
"Bearing. Ball 12mm"
£10.73 £8.94

  26 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  27 Knob-Hoc
Knob-Hoc
HA480134 In stock
Knob-Hoc
£2.09 £1.74

  28 Spring-Torsion. Hoc
Spring-Torsion. Hoc
HA480132 In stock
Spring-Torsion. Hoc
£1.16 £0.97

  29 Cam-Drive
Cam-Drive
HA134-2924 In stock
Cam-Drive
£7.26 £6.05

  30 Key-Drive
Key-Drive
HA134-2034 In stock
Key-Drive
£2.60 £2.17

  31 Washer-Starlock
Washer-Starlock
HA0201086 Out of stock
Washer-Starlock
£1.62 £1.35

  32 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  33 Washer-Plain
Washer-Plain
HA09479 Out of stock
Washer-Plain
£1.62 £1.35

  34 Circlip-External. Hd
Circlip-External. Hd
HA134-0254 In stock
Circlip-External. Hd
£0.58 £0.48

  35 Washer-Thrust
Washer-Thrust
HA111-8602 In stock
Washer-Thrust
£1.07 £0.89

  36 Spring Load Lever
Spring Load Lever
HA111-9003 In stock
Spring Load Lever
Was £4.12 £3.43 Special Price £2.53 £2.11

  37 Nut
Nut
HA09447 In stock
Nut
£1.63 £1.36

  40 Screw-HH
Screw-HH
HA09363 In stock
Screw-HH
£1.54 £1.28

  41 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  42 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  45 Screw-Taptite
Screw-Taptite
HA09545 In stock
Screw-Taptite
£1.62 £1.35

  46 Bearing-Axle. Front
Bearing-Axle. Front
HA410069 In stock
Bearing-Axle. Front
£1.63 £1.36

  47 Plastic Round Insert
Plastic Round Insert
HA111-9933 Out of stock
Plastic Round Insert
£0.73 £0.61

  48 Rivet-Push. Plastic
Rivet-Push. Plastic
HA134-0262 Out of stock
Rivet-Push. Plastic
£1.16 £0.97

  51 Bushing-Roller. Oilite
Bushing-Roller. Oilite
HA340129 In stock
Bushing-Roller. Oilite
£9.67 £8.06

  52 Washer
Washer
HA480097 In stock
Washer
£1.64 £1.37

  53 Spacer-Roller
Spacer-Roller
HA134-0314 In stock
Spacer-Roller
£3.17 £2.64

  54 Roller Shell Assembly
Roller Shell Assembly
HA134-1690-03 Out of stock
Roller Shell Assembly
£43.86 £36.55

  55 Roller End Cap
Roller End Cap
HA134-0342 In stock
Roller End Cap
£6.94 £5.78

  56 Bearing Support Plate
Bearing Support Plate
HA134-1734 In stock
Bearing Support Plate
£3.28 £2.73

  58 Washer-Plastic
Washer-Plastic
HA110-4068 In stock
Washer-Plastic
£2.52 £2.10

  59 Retaining Collar. Drive Shaft
Retaining Collar. Drive Shaft
HA134-4513 In stock
Retaining Collar. Drive Shaft
£0.89 £0.74

  60 Pin. Roll. 3mm x 16mm
Pin. Roll. 3mm x 16mm
HA134-4514 Out of stock
Pin. Roll. 3mm x 16mm
£0.29 £0.24

  61 Washer-Plain
Washer-Plain
HA111-7679 Out of stock
Washer-Plain
£0.36 £0.30

  62 Washer-Spring
Washer-Spring
HA09474 Out of stock
Washer-Spring
£1.56 £1.30

  63 Bolt-HH
Bolt-HH
HAZBH1F025U Out of stock
Bolt-HH
£2.02 £1.68


Description

Hayter Harrier 41 - Pro Autodrive Fixed Speed Mower - 379B

Serial No: 409296488 - 999999999

Traction - Suspension - Hoc - Parts Diagram
