Hayter Harrier 41 ES VS - 412E (412E280000001 - 412E280999999) - Mainframe Assembly

Description

Hayter Harrier 41 - Electric Start Variable Speed Mower - 412E

Serial No: 412E280000001 - 412E280999999

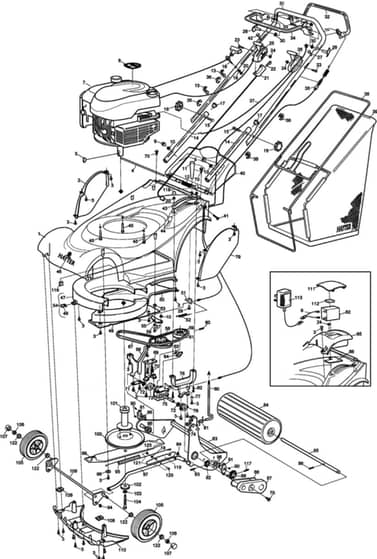

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA410010V	Mainframe	Out of stock	£212.04 £176.70
2	HA410033	Cover- Side Rh	In stock	£17.12 £14.27
3	HA09365	Screw M6 x 16 Taptite Hex Hd	In stock	£1.72 £1.43
4	HA305103	Deflector Rod	Out of stock	£4.15 £3.46
5	HA1662	Key-Woodruff	In stock	£1.63 £1.36
6	HAHY412014	Lead. Battery	Out of stock	£18.64 £15.53
9	HAHY234051	Cap-Nut	In stock	£1.55 £1.29
10	HA09441	Nut-Hex. Ni	Out of stock	£1.69 £1.41
11	HA480134	Knob-Hoc	In stock	£2.34 £1.95
12	HA410030	Spring-Deflector	In stock	£6.36 £5.30
13	HAHY412008	Guide-Cable	Out of stock	£1.61 £1.34
14	HA410034W	Handlebar - Lower	In stock	£7.31 £6.09
15	HAHY226024	Bolt-Handlebar	In stock	£1.79 £1.49
16	HA480088	Knob-Handlebar	In stock	£5.64 £4.70
17	HA300160	Plug	In stock	£1.69 £1.41
18	HA305093	Guide Rope	Out of stock	£1.74 £1.45
19	HA09472	Washer-Plain	Out of stock	£1.55 £1.29
22	HAHY6426	Key Ignition	Out of stock	£7.30 £6.08
23	HA09780	Setscrew	In stock	£1.96 £1.63
24	HA09438	Nut-Nyloc	In stock	£1.61 £1.34
25	HA410035	Control - Throttle	In stock	£33.12 £27.60
26	HA111-1150	Control - Variable Speed	In stock	£46.72 £38.93
27	HA341033	Fastener-Drive	In stock	£1.69 £1.41
28	HA340182	Pin-Pivot	Out of stock	£1.70 £1.42
29	HA09546	Screw-Taptite	Out of stock	£1.72 £1.43
30	HA09688	Washer	In stock	£0.72 £0.60
31	HA305145W	Handlebar - Upper	In stock	£63.12 £52.60
32	HA111-1921-03	Lever-Clutch	Out of stock	£45.06 £37.55
33	HA09687	Screw	In stock	£1.69 £1.41
34	HA111-9662	Lever-Engine	In stock	£18.86 £15.72
35	HA111-1151	Cable - Clutch	In stock	£22.82 £19.02
36	HA410037	Guide-Cable	In stock	£1.63 £1.36
37	HA560041	Cable Engine Brake	In stock	£11.36 £9.47
38	HA410038W	Frame - Grassbag	In stock	£37.24 £31.03
39	HA410039	Fabric - Grassbag	In stock	£49.57 £41.31
40	HA410028	Rear Deflector	In stock	£25.57 £21.31
41	HA09379	Bolt-Coach	Out of stock	£1.69 £1.41
42	HA300144	Fastener Drive	Out of stock	£1.69 £1.41
43	HAHY410006	Ratchet - Hoc	In stock	£4.20 £3.50
44	HA320006	Decal-Hoc	In stock	£1.69 £1.41
45	HA09349	Screw	Out of stock	£1.69 £1.41
46	HA410087	Decal	In stock	£5.86 £4.88
47	HA410058	Chute	In stock	£51.89 £43.24
48	HA410076	Nut	In stock	£2.03 £1.69
49	HA410060	Cover - Underdeck	In stock	£23.44 £19.53
50	HA410059	Throwplate	In stock	£11.44 £9.53
51	HAHY412003	Bracket Cable	Out of stock	£4.82 £4.02
52	HAHY412004	Spring-Variator	In stock	£6.12 £5.10
53	HA411031	Bushing-Pivot	In stock	£8.94 £7.45
55	HA411014	Lever Variable Pulley	Out of stock	£11.10 £9.25
56	HA09270	Washer-Plain	Out of stock	£1.69 £1.41
57	HA09787	Screw-Taptite	Out of stock	£1.55 £1.29
58	HA411001	Pulley Variator Asm	In stock	£61.45 £51.21
59	HA411019	Pulley	In stock	£15.49 £12.91
60	HA411023	Pin	Out of stock	£1.63 £1.36
61	HA411025	Belt Variator	In stock	£10.32 £8.60
62	HA111-1926	Battery 12V	In stock	£56.42 £47.02
63	HA411021	Spring	Out of stock	£2.30 £1.92
64	HA411020	Clutch Lever	Out of stock	£8.17 £6.81
65	HA410080	Box - Battery	Out of stock	£12.71 £10.59
66	HAHY412013	Foam - Pad Bottom	Out of stock	£2.52 £2.10
67	HA411024	Belt-Variator (520)	In stock	£12.47 £10.39
68	HA410016	Bracket - Roller Suport Rh	In stock	£23.99 £19.99
69	HA411012	Bracket - Gearbox Support	In stock	£8.59 £7.16
70	HA09575	Screw-Taptite	In stock	£1.69 £1.41
71	HA219037	Plate-Securing	Out of stock	£1.69 £1.41
72	HA132-9286	Bearing	In stock	£7.76 £6.47
73	HA410047	Housing-Gearbox. Bearing (Rh)	Out of stock	£8.88 £7.40
74	HA04020	Grip-Fix	In stock	£1.74 £1.45
75	HA411002	Gearbox	In stock	£101.40 £84.50
76	HAHY410002	Bracket - Roller Suport Lh	In stock	£31.62 £26.35
77	HA340154	Bushing	Out of stock	£5.95 £4.96
78	HA410048	Housing-Pivot Bearing. Lh	In stock	£8.88 £7.40
79	HA410032	Cover - Side Lh	In stock	£16.97 £14.14
80	HA480128	Lever - Hoc	Out of stock	£8.56 £7.13
81	HA480132	Spring-Torsion. Hoc	In stock	£1.37 £1.14
82	HA09786	Screw - Taptite M6 x 35	In stock	£2.14 £1.78
83	HA410011W	Frame - Roller W/A	In stock	£129.00 £107.50
84	HA410044	Roller	In stock	£72.60 £60.50
85	HA411038	Shaft - Roller	Out of stock	£32.44 £27.03
86	HA411037	Key	Out of stock	£5.26 £4.38
87	HA411013	Cover-Drive	In stock	£4.72 £3.93
88	HA411016	Chain-40 Pitches (3/8 Inch Link)	In stock	£12.17 £10.14
89	HA411010	Sprocket 18T	In stock	£23.04 £19.20
90	HA09545	Screw-Taptite	In stock	£1.81 £1.51
91	HA219102	Housing-Bearing. Roller	In stock	£13.30 £11.08
92	HA411011	Sprocket-Gearbox	In stock	£13.68 £11.40
93	HA03997	Pin-Roll	In stock	£1.69 £1.41
94	HA0201086	Washer-Starlock	In stock	£1.81 £1.51
95	HA410050	Spring-Counter Balance	In stock	£7.68 £6.40
96	HA09491	Washer-Plain	Out of stock	£1.74 £1.45
97	HA111-1050	Rod - Connecting	Out of stock	£28.61 £23.84
98	HA09262	Washer	Out of stock	£1.72 £1.43
99	HAHY201026	Cutter Blade	In stock	£31.28 £26.07
100	HA410057W	Disc-Friction	In stock	£28.68 £23.90
101	HA410078	Carrier-Blade	In stock	£44.29 £36.91
102	HAHY4014	Spacer-Distance. Cutterbar	In stock	£12.24 £10.20
103	HA09273	Washer-Spring	In stock	£1.81 £1.51
104	HA09788	Bolt-Unf	In stock	£1.68 £1.40
105	HA111-1250	Wheel-Ribbed	In stock	£32.40 £27.00
106	HAHY4486	Nut-Unf	In stock	£1.68 £1.40
107	HA111-1251	Cap-Hub	Out of stock	£1.91 £1.59
108	HA410069	Bearing-Axle. Front	In stock	£1.82 £1.52
109	HA410051	Axle - Front W/A	Out of stock	£61.07 £50.89
110	HA410055	Fins	Out of stock	£9.13 £7.61
111	HA410081	Cover - Battery	Out of stock	£10.32 £8.60
112	HAHY412012	Foam Pad Top	Out of stock	£0.65 £0.54
113	HA111-8160	Power Supply Asm	In stock	£26.51 £22.09
114	HA411035	Cable Holder	In stock	£2.21 £1.84
115	HAZBH1F040U	Screw-HH	Out of stock	£2.02 £1.68
116	HA410082	Fastner - Panel Edge	Out of stock	£1.63 £1.36
117	HAHY03354	Pin-Spring. Selloc	In stock	£1.76 £1.47
118	HA343025	Cap-Plastic	Out of stock	£1.72 £1.43
119	HA111-0073	Mount-Spring	Out of stock	£4.19 £3.49
120	HA09364	Screw-HH	Out of stock	£1.63 £1.36
121	HA111-1196	Kit 2 Piece Con Rod	Out of stock	£49.06 £40.88
122	HAHY300154	Use Hy300154 Bearing 1/2 Ball Uralan	In stock	£3.72 £3.10
123	HA09544	Nut-Nyloc (20,123)	Out of stock	£1.56 £1.30
