Hayter Harrier 41 AD VS - 413E (413E280000001 - 413E280999999) - Mainframe Assembly

Description

Hayter Harrier 41 - Autodrive Variable Speed Mower - 413E

Serial No: 413E280000001 - 413E280999999

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA410010V Available to backorder	Mainframe	£224.76 £187.30
2	HA410033 In stock	Cover- Side Rh	£16.56 £13.80
3	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.68 £1.40
4	HA305103 Available to backorder	Deflector Rod	£4.04 £3.37
5	HA1662 In stock	Key-Woodruff	£1.50 £1.25
9	HAHY234051 In stock	Cap-Nut	£1.60 £1.33
10	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
11	HA480134 In stock	Knob-Hoc	£2.14 £1.78
12	HA410030 Available to backorder	Spring-Deflector	£6.14 £5.12
14	HA410034W In stock	Handlebar - Lower	£7.06 £5.88
15	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
16	HA480088 In stock	Knob-Handlebar	£5.48 £4.57
17	HA300160 Available to backorder	Plug	£1.66 £1.38
18	HA305093 In stock	Guide Rope	£1.70 £1.42
19	HA09472 Available to backorder	Washer-Plain	£1.50 £1.25
23	HA09780 Available to backorder	Setscrew	£1.80 £1.50
24	HA09438 Available to backorder	Nut-Nyloc	£1.66 £1.38
25	HA410035 In stock	Control - Throttle	£27.22 £22.68
26	HA111-1150 Available to backorder	Control - Variable Speed	£38.38 £31.98
27	HA341033 In stock	Fastener-Drive	£1.70 £1.42
28	HA340182 In stock	Pin-Pivot	£1.66 £1.38
29	HA09546 Available to backorder	Screw-Taptite	£1.68 £1.40
30	HA09688 Available to backorder	Washer	£0.70 £0.58
31	HA305145W In stock	Handlebar - Upper	£66.32 £55.27
32	HA111-1921-03 In stock	Lever-Clutch	£43.56 £36.30
33	HA09687 In stock	Screw	£1.68 £1.40
34	HA111-9662 In stock	Lever-Engine	£18.24 £15.20
35	HA111-1151 In stock	Cable - Clutch	£18.76 £15.63
36	HA410037 In stock	Guide-Cable	£1.50 £1.25
37	HA560041 In stock	Cable Engine Brake	£11.10 £9.25
38	HA410038W In stock	Frame - Grassbag	£36.00 £30.00
39	HA410039 Available to backorder	Fabric - Grassbag	£47.92 £39.93
40	HA410028 In stock	Rear Deflector	£24.96 £20.80
41	HA09379 Available to backorder	Bolt-Coach	£1.56 £1.30
42	HA300144 Available to backorder	Fastener Drive	£1.70 £1.42
43	HAHY410006 In stock	Ratchet - Hoc	£4.24 £3.53
44	HA320006 In stock	Decal-Hoc	£1.66 £1.38
45	HA09349 In stock	Screw	£1.66 £1.38
46	HA410087 In stock	Decal	£5.66 £4.72
47	HA410058 In stock	Chute	£50.16 £41.80
48	HA410076 Available to backorder	Nut	£1.86 £1.55
49	HA410060 Available to backorder	Cover - Underdeck	£22.66 £18.88
50	HA410059 In stock	Throwplate	£11.06 £9.22
51	HAHY412003 Available to backorder	Bracket Cable	£4.70 £3.92
52	HAHY412004 In stock	Spring-Variator	£5.86 £4.88
53	HA411031 In stock	Bushing-Pivot	£8.64 £7.20
55	HA411014 Available to backorder	Lever Variable Pulley	£10.82 £9.02
56	HA09270 In stock	Washer-Plain	£1.68 £1.40
57	HA09787 Available to backorder	Screw-Taptite	£1.56 £1.30
58	HA411001 In stock	Pulley Variator Asm	£61.76 £51.47
59	HA411019 In stock	Pulley	£15.14 £12.62
60	HA411023 Available to backorder	Pin	£1.60 £1.33
61	HA411025 In stock	Belt Variator	£9.96 £8.30
63	HA411021 Available to backorder	Spring	£2.12 £1.77
64	HA411020 Available to backorder	Clutch Lever	£7.52 £6.27
65	HA410080 Available to backorder	Box - Battery	£12.42 £10.35
67	HA411024 In stock	Belt-Variator (520)	£12.18 £10.15
68	HA410016 Available to backorder	Bracket - Roller Suport Rh	£23.88 £19.90
69	HA411012 In stock	Bracket - Gearbox Support	£8.30 £6.92
70	HA09575 In stock	Screw-Taptite	£1.66 £1.38
71	HA219037 Available to backorder	Plate-Securing	£1.70 £1.42
72	HA132-9286 In stock	Bearing	£7.50 £6.25
73	HA410047 Available to backorder	Housing-Gearbox. Bearing (Rh)	£8.64 £7.20
74	HA04020 In stock	Grip-Fix	£1.60 £1.33
75	HA411002 In stock	Gearbox	£101.40 £84.50
76	HAHY410002 In stock	Bracket - Roller Suport Lh	£30.56 £25.47
77	HA340154 Available to backorder	Bushing	£5.80 £4.83
78	HA410048 In stock	Housing-Pivot Bearing. Lh	£8.54 £7.12
79	HA410032 In stock	Cover - Side Lh	£16.56 £13.80
80	HA480128 Available to backorder	Lever - Hoc	£8.36 £6.97
81	HA480132 In stock	Spring-Torsion. Hoc	£1.14 £0.95
82	HA09786 In stock	Screw - Taptite M6 x 35	£1.96 £1.63
83	HA410011W In stock	Frame - Roller W/A	Was £129.00 £107.50 Special Price £92.06 £76.72
84	HA410044 In stock	Roller	£70.22 £58.52
85	HA411038 In stock	Shaft - Roller	£31.36 £26.13
86	HA411037 In stock	Key	£5.12 £4.27
87	HA411013 In stock	Cover-Drive	£4.56 £3.80
88	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£11.88 £9.90
89	HA411010 In stock	Sprocket 18T	£22.22 £18.52
90	HA09545 In stock	Screw-Taptite	£1.66 £1.38
91	HA219102 In stock	Housing-Bearing. Roller	£12.98 £10.82
92	HA411011 In stock	Sprocket-Gearbox	£13.20 £11.00
93	HA03997 In stock	Pin-Roll	£1.66 £1.38
94	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
95	HA410050 In stock	Spring-Counter Balance	£7.38 £6.15
96	HA09491 Available to backorder	Washer-Plain	£1.60 £1.33
97	HA111-1050 Available to backorder	Rod - Connecting	£27.90 £23.25
98	HA09262 Available to backorder	Washer	£1.68 £1.40
99	HAHY201026 In stock	Cutter Blade	£25.70 £21.42
100	HA410057W In stock	Disc-Friction	£27.78 £23.15
101	HA410078 In stock	Carrier-Blade	£42.82 £35.68
102	HAHY4014 In stock	Spacer-Distance. Cutterbar	£11.82 £9.85
103	HA09273 In stock	Washer-Spring	£1.66 £1.38
104	HA09788 In stock	Bolt-Unf	£1.54 £1.28
105	HA111-1250 In stock	Wheel-Ribbed	£33.18 £27.65
106	HAHY4486 In stock	Nut-Unf	£1.62 £1.35
107	HA111-1251 Available to backorder	Cap-Hub	£1.86 £1.55
108	HA410069 In stock	Bearing-Axle. Front	£1.68 £1.40
109	HA410051 Available to backorder	Axle - Front W/A	£59.58 £49.65
110	HA410055 Available to backorder	Fins	£9.36 £7.80
111	HA410081 Available to backorder	Cover - Battery	£10.02 £8.35
116	HA410082 Available to backorder	Fastner - Panel Edge	£1.60 £1.33
117	HAHY03354 In stock	Pin-Spring. Selloc	£1.62 £1.35
118	HA343025 Available to backorder	Cap-Plastic	£1.68 £1.40

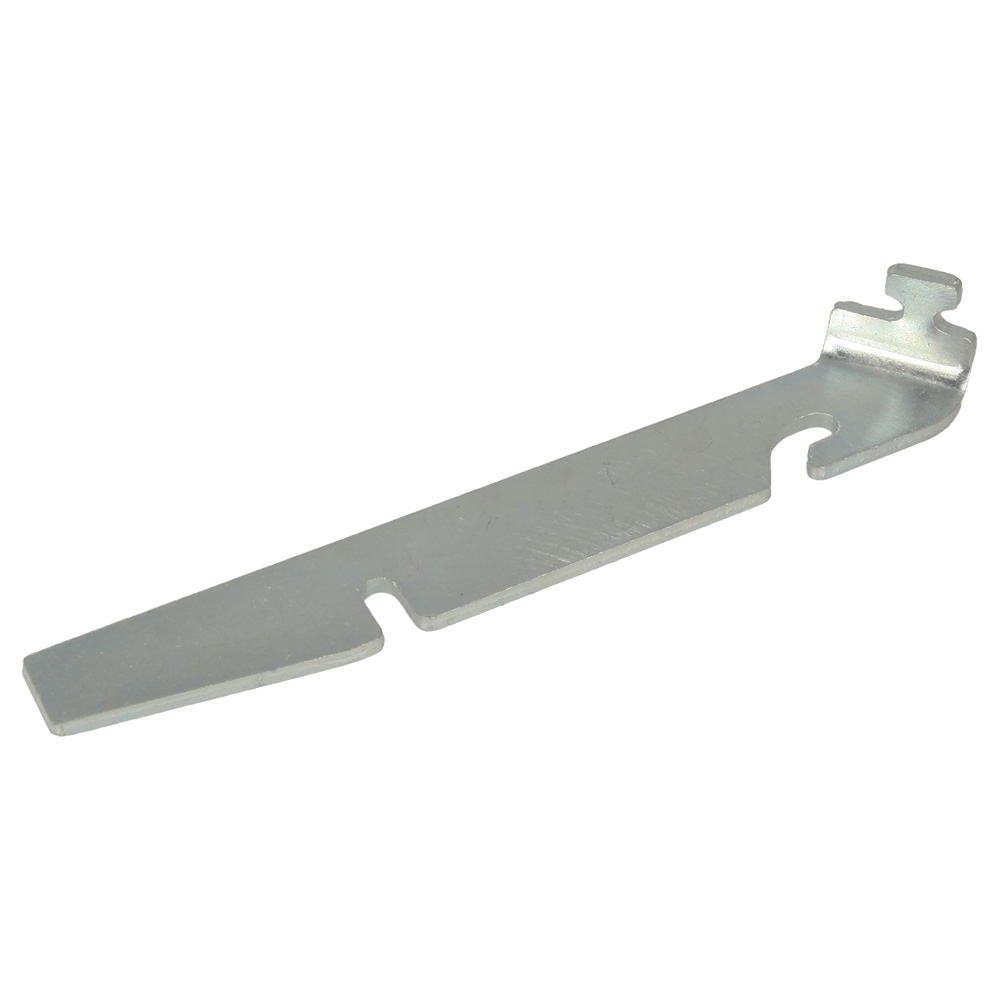

119	HA111-0073 Available to backorder	Mount-Spring	£4.18 £3.48
120	HA09364 Available to backorder	Screw-HH	£1.60 £1.33
121	HA111-1196 Available to backorder	Kit 2 Piece Con Rod	£45.16 £37.63
122	HAHY300154 In stock	Use Hy300154 Bearing 1/2 Ball Uralan	£3.54 £2.95
123	HA09544 Available to backorder	Nut-Nyloc (20, 123)	£1.60 £1.33
