Hayter Harrier 41 AD VS - 413D (413D260000001 - 413D260999999) - Mainframe Assembly

Description

Hayter Harrier 41 - Autodrive Variable Speed Mower - 413D

Serial No: 413D260000001 - 413D260999999

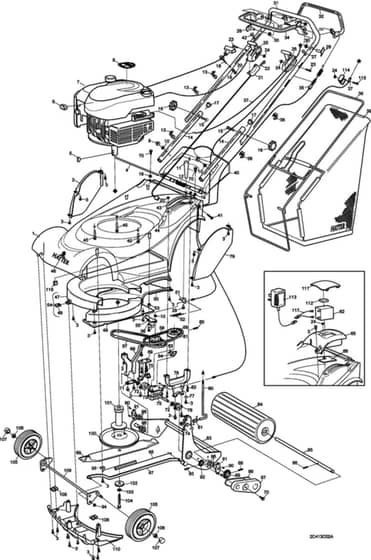

Mainframe Assembly - Parts Diagram

	Part No.	Details
1	HA410010V Available to backorder	Mainframe	£239.52 £199.60
2	HA410033 In stock	Cover- Side Rh	£18.24 £15.20
3	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.84 £1.53
4	HA305103 Available to backorder	Deflector Rod	£4.31 £3.59
5	HA1662 In stock	Key-Woodruff	£1.66 £1.38
9	HAHY234051 In stock	Cap-Nut	£1.76 £1.47
10	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
11	HA480134 In stock	Knob-Hoc	£2.36 £1.97
12	HA410030 In stock	Spring-Deflector	£6.78 £5.65
14	HA410034W In stock	Handlebar - Lower	£7.81 £6.51
15	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
16	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
17	HA300160 Available to backorder	Plug	£1.76 £1.47
18	HA305093 In stock	Guide Rope	£1.87 £1.56
19	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
20	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
23	HA09780 Available to backorder	Setscrew	£1.86 £1.55
24	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
25	HA410035 In stock	Control - Throttle	£30.01 £25.01
27	HA341033 In stock	Fastener-Drive	£1.84 £1.53
28	HA340182 In stock	Pin-Pivot	£1.84 £1.53
29	HA09546 In stock	Screw-Taptite	£1.85 £1.54
30	HA09688 In stock	Washer	£0.78 £0.65
31	HA305145W In stock	Handlebar - Upper	£70.64 £58.87
32	HA111-1921-03 In stock	Lever-Clutch	£46.68 £38.90
33	HA09687 In stock	Screw	£1.84 £1.53
34	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
35	HA412006 In stock	Cable - Clutch	£15.48 £12.90
36	HA410037 In stock	Guide-Cable (13, 36)	£1.66 £1.38
38	HA410038W In stock	Frame - Grassbag	£39.70 £33.08
39	HA410039 In stock	Fabric - Grassbag	£52.85 £44.04
40	HA410028 In stock	Rear Deflector	£27.53 £22.94
41	HA09379 Available to backorder	Bolt-Coach	£1.76 £1.47
42	HA300144 Available to backorder	Fastener Drive	£1.76 £1.47
43	HAHY410006 In stock	Ratchet Hoc	£4.70 £3.92
44	HA320006 In stock	Decal-Hoc	£1.79 £1.49
45	HA09349 In stock	Screw	£1.84 £1.53
46	HA410087 In stock	Decal	£6.24 £5.20
47	HA410058 In stock	Chute	£55.28 £46.07
48	HA410076 In stock	Nut	£2.06 £1.72
49	HA410060 In stock	Cover - Underdeck	£24.98 £20.82
50	HA410059 In stock	Throwplate	£12.20 £10.17
53	HA411031 In stock	Bushing-Pivot	£9.26 £7.72
55	HA411014 Available to backorder	Lever Variable Pulley	£11.20 £9.33

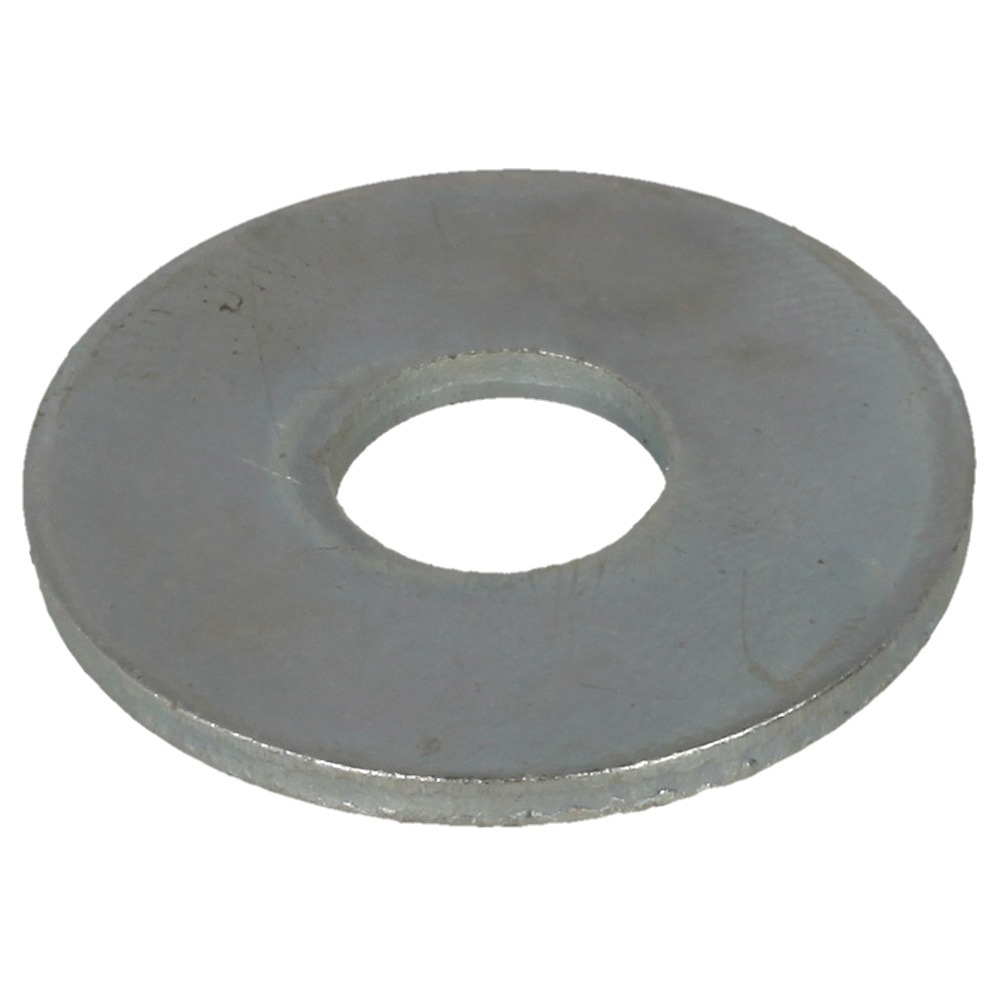

56	HA09270 In stock	Washer-Plain	£1.79 £1.49
57	HA09787 Available to backorder	Screw-Taptite	£1.60 £1.33
58	HA411001 In stock	Pulley Variator Asm	£65.80 £54.83
59	HA411019 In stock	Pulley	£16.69 £13.91
60	HA411023 In stock	Pin	£1.76 £1.47
61	HA411025 In stock	Belt Variator	£10.68 £8.90

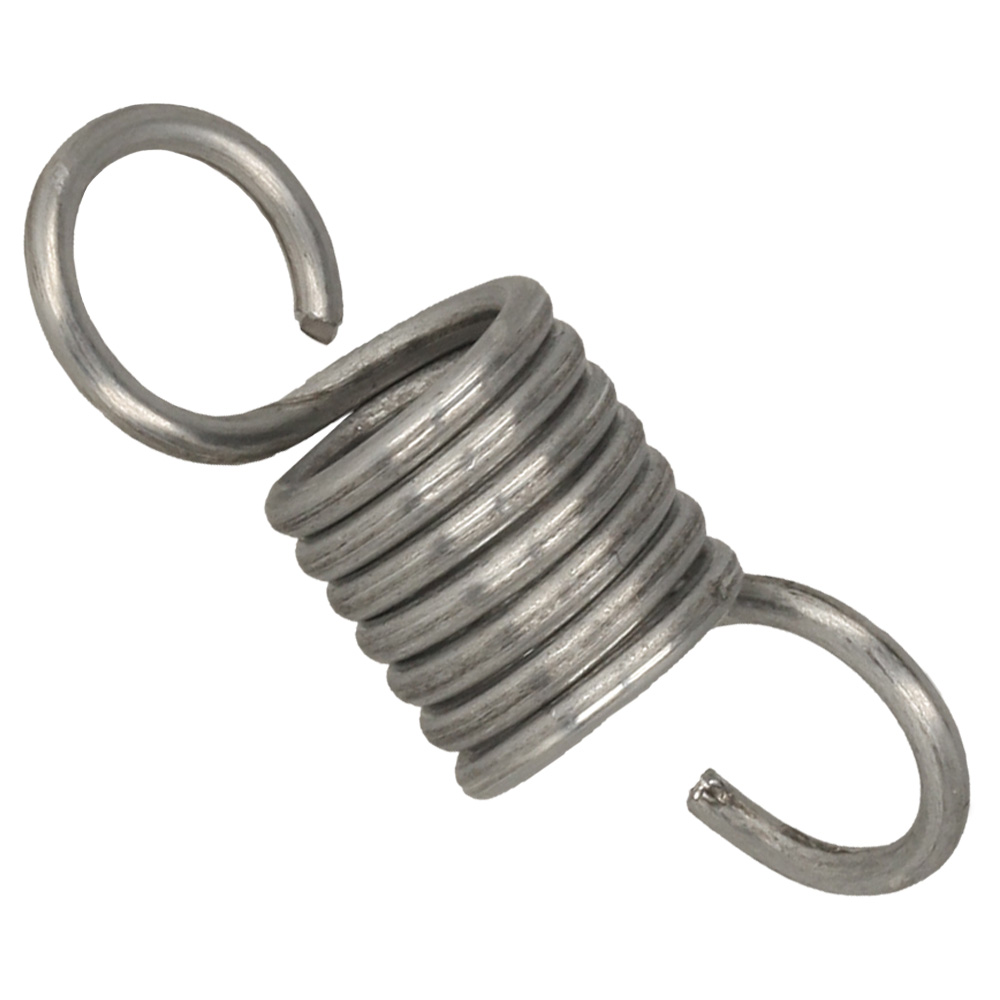

63	HA411021 Available to backorder	Spring	£2.20 £1.83
64	HA411020 Available to backorder	Clutch Lever	£7.78 £6.48
65	HA410080 Available to backorder	Box - Battery	£12.85 £10.71
67	HA411024 In stock	Belt-Variator (520)	£11.40 £9.50
68	HA410016 In stock	Bracket - Roller Suport Rh	£26.32 £21.93
69	HA411012 In stock	Bracket - Gearbox Support	£9.16 £7.63
70	HA09575 In stock	Screw-Taptite	£1.84 £1.53
71	HA219037 In stock	Plate-Securing	£1.80 £1.50
72	HA132-9286 In stock	Bearing	£8.28 £6.90
73	HA410047 In stock	Housing-Gearbox. Bearing (Rh)	£9.54 £7.95
74	HA04020 In stock	Grip-Fix	£1.76 £1.47
75	HA411002 In stock	Gearbox	£112.48 £93.73
76	HAHY410002 In stock	Bracket - Pivot Lh	£33.67 £28.06
77	HA340154 Available to backorder	Bushing	£6.00 £5.00
78	HA410048 In stock	Housing-Pivot Bearing. Lh	£9.42 £7.85
79	HA410032 In stock	Cover - Side Lh	£18.24 £15.20
80	HA480128 Available to backorder	Lever - Hoc	£8.65 £7.21
81	HA480132 In stock	Spring-Torsion. Hoc	£1.27 £1.06
82	HA09786 In stock	Screw - Taptite M6 x 35	£2.17 £1.81
83	HA410011W Available to backorder	Frame - Roller W/A	£127.92 £106.60
84	HA410044 In stock	Roller	£74.74 £62.28
85	HA411038 In stock	Shaft - Roller	£34.60 £28.83
86	HA411037 In stock	Key	£5.66 £4.72
87	HA411013 In stock	Cover-Drive	£5.02 £4.18
88	HA411016 In stock	Chain-40 Pitches (3/8 Inch Link)	£13.09 £10.91
89	HA411010 In stock	Sprocket 18T	£24.52 £20.43
90	HA09545 In stock	Screw-Taptite	£1.84 £1.53
91	HA219102 In stock	Housing-Bearing. Roller	£14.33 £11.94
92	HA411011 In stock	Sprocket-Gearbox	£14.56 £12.13
93	HA03997 In stock	Pin-Roll	£1.84 £1.53
94	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
95	HA410050 In stock	Spring-Counter Balance	£8.12 £6.77
96	HA09491 Available to backorder	Washer-Plain	£1.66 £1.38

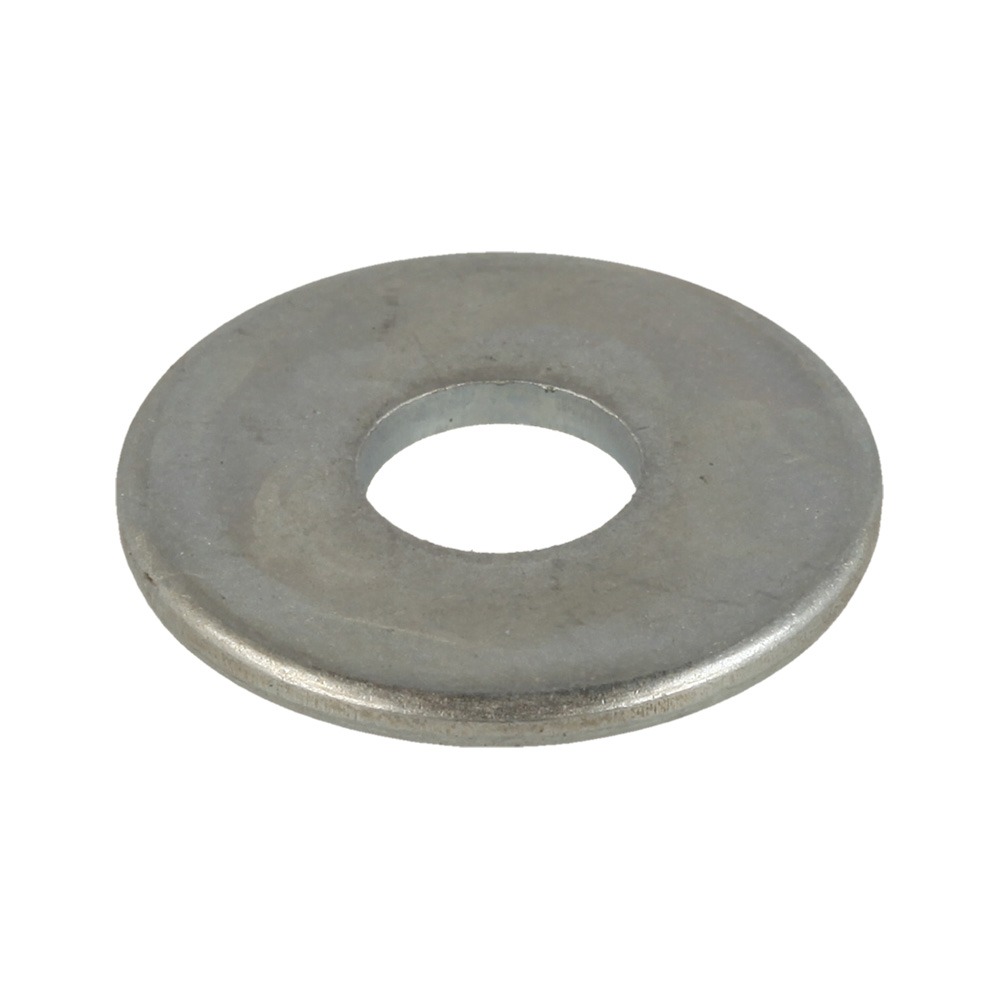

98	HA09262 Available to backorder	Washer	£1.74 £1.45
99	HAHY201026 In stock	Cutterbar 16"	£28.36 £23.63
100	HA410057W In stock	Friction Disc	£30.64 £25.53
101	HA410078 In stock	Carrier-Blade	£47.21 £39.34
103	HA09273 In stock	Washer-Spring	£1.84 £1.53
104	HA09788 In stock	Bolt-Unf	£1.69 £1.41
105	HA111-1250 In stock	Wheel-Ribbed	£35.56 £29.63
106	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.81 £1.51
107	HA219143 Available to backorder	Hub Cap	£7.26 £6.05
108	HA410069 In stock	Bearing-Axle. Front	£1.84 £1.53
109	HA410051 Available to backorder	Axle - Front W/A	£61.63 £51.36
110	HA410055 Available to backorder	Fins	£9.95 £8.29
111	HA410081 In stock	Cover - Battery	£11.04 £9.20
116	HA410082 Available to backorder	Fastner - Panel Edge	£1.66 £1.38
