Hayter Harrier 2 19 - 216 (216-80301 - 216-99999) - Mainframe Assembly

Name: Hayter Harrier 2 19 - 216 (216-80301 - 216-99999) - Mainframe Assembly
SKU: harrier 2 19 psei646 mainframe assembly-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 2 19 - 216 (216-80301 - 216-99999) - Mainframe Assembly

Description

Hayter Harrier 2 19 - 216

Serial No: 216-80301 - 216-99999

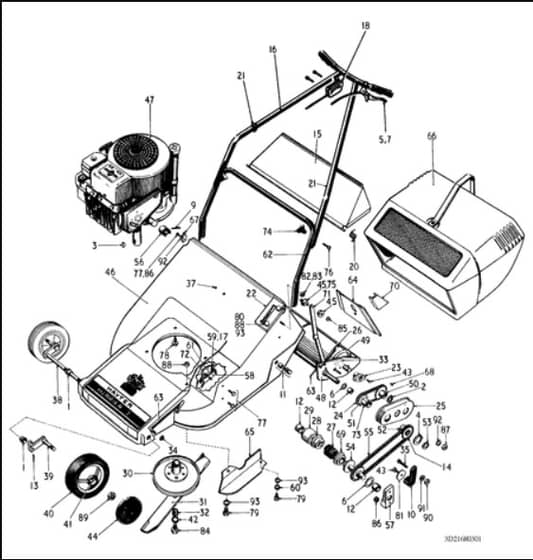

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
3	HA1662 Out of stock	Key-Woodruff	£1.55 £1.29
4	HA02708 Out of stock	Circlip Ext 3/4"	£0.23 £0.19
5	HA5406 Out of stock	Ass-Y. Worm & Gear Box	£28.61 £23.84
6	HA02575 In stock	Washer	£1.72 £1.43
12	HA3296 Out of stock	19 Nut	£1.63 £1.36
13	HAHY03354 Out of stock	Pin-Spring. Selloc	£1.67 £1.39
14	HA5426 Out of stock	Sprocket 15T 3/4 A/F Hex Bore	£38.60 £32.17
20	HAHY5455 Out of stock	Spring Deflector Plate	£2.98 £2.48
21	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
23	HA3971 Out of stock	Housing Bearing Roller	£9.43 £7.86
26	HA5421 Out of stock	Spring Rear Axle Tension	£2.86 £2.38
29	HA5408 Out of stock	Shroud Clutch Moulding	£4.51 £3.76
31	HA4013 Out of stock	Cutterbar 19" For Harrier	£30.25 £25.21
32	HAHY216008 Out of stock	Piece Cutterbar Distance	£13.22 £11.02
33	HA4017 Out of stock	Washer Nylon	£2.75 £2.29
34	HA04020 In stock	Grip-Fix	£1.61 £1.34
35	HA09373 Out of stock	Bolt-Coach	£1.61 £1.34
38	HA4478 Out of stock	Axle Front	£49.36 £41.13
39	HA4479 Out of stock	Plate Front Axle N/S	£47.26 £39.38
40	HA111-1250 In stock	Wheel-Ribbed	£30.24 £25.20
41	HA5221 Out of stock	Bearing 1/2" Ball Assy	£3.05 £2.54
42	HA09273 In stock	Washer-Spring	£1.61 £1.34
43	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.72 £1.43
44	HA219143 Out of stock	Cap Hub	£7.62 £6.35
53	HA03096 In stock	Circlip	£1.63 £1.36
55	HA5418 Out of stock	Chain 76 Pitch x 3/8"& Spr Lnk	£17.70 £14.75
58	HAHY5277 Out of stock	Fork Clutch	£6.52 £5.43
59	HAHY5278 Out of stock	Spring Clutch Fork Compression	£1.40 £1.17
64	HA5283 Out of stock	Plate Cover	£72.60 £60.50
69	HA5414 Out of stock	Cover Clutch Moulding	£3.91 £3.26
72	HA5404 Out of stock	Spacer Clutch Fork	£5.48 £4.57
74	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
76	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
77	HA09039 Out of stock	Setscrew Unf 1/4 x 5/8 S Qual	£1.72 £1.43
83	HA09442 Out of stock	Nut	£1.72 £1.43
84	HA09116 Out of stock	Screw Hex Hd 3/8 Unf x11/4	£1.72 £1.43
86	HA09201 Out of stock	Nut	£1.72 £1.43
89	HAHY4486 Out of stock	Nut Unf 1/2"Nyloc Ext Thin5/16	£1.58 £1.32
90	HAZNH1H000U Out of stock	Nut M8 Plain	£1.72 £1.43
92	HA09261 Out of stock	Washer-Plain	£1.72 £1.43
93	HA09266 Out of stock	Washer-Plain	£1.52 £1.27
