Hayter Harrier 2 19 - 216 (216-63076 - 216-79135) - Mainframe Assembly

Hayter Harrier 2 19 - 216 (216-63076 - 216-79135) - Mainframe Assembly
Hayter Harrier 2 19 - 216 (216-63076 - 216-79135) - Mainframe Assembly

Description

Hayter Harrier 2 19 - 216

Serial No: 216-63076 - 216-79135

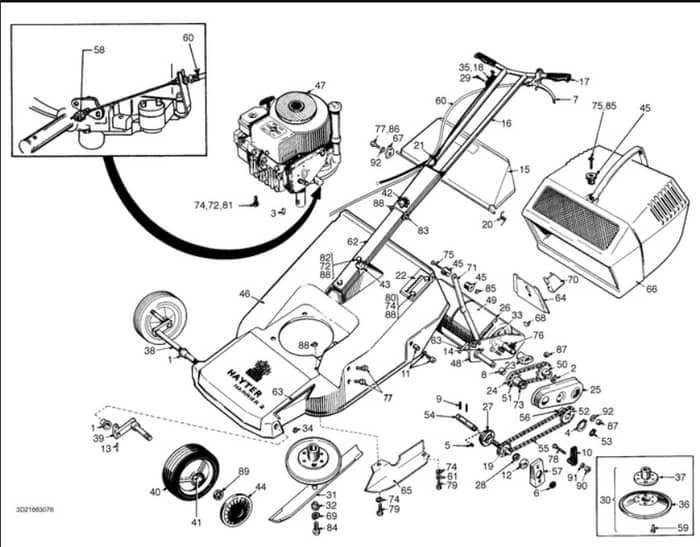

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  2 1/4-20 x 5/8 Hex Hd. Cap Screw
1/4-20 x 5/8 Hex Hd. Cap Screw
HA1428
Available to backorder
1/4-20 x 5/8 Hex Hd. Cap Screw
£1.68 £1.40

  3 Key-Woodruff
Key-Woodruff
HA1662
In stock
Key-Woodruff
£1.50 £1.25

  4 Circlip Ext 3/4
Circlip Ext 3/4
HA02708
In stock
Circlip Ext 3/4"
£0.48 £0.40

  5 Oilite Bush 3/8*1/2*1.1/4
Oilite Bush 3/8*1/2*1.1/4
HAHY3070
Available to backorder
Oilite Bush 3/8*1/2*1.1/4
£3.22 £2.68

  6 Tine L.H.
Tine L.H.
HA4331
Available to backorder
Tine L.H.
£2.32 £1.93

  9 Pin-Roll
Pin-Roll
HA03997
In stock
Pin-Roll
£1.66 £1.38

  12 19 Nut
19 Nut
HA3296
Available to backorder
19 Nut
£1.68 £1.40

  13 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354
In stock
Pin-Spring. Selloc
£1.62 £1.35

  14 Rivet Dia 3/16
Rivet Dia 3/16
HAHY03667
Available to backorder
Rivet Dia 3/16"*1/2" Flat Hd
£1.64 £1.37

  16 Handlebar Upper
Handlebar Upper
HA3958
Available to backorder
Handlebar Upper
£75.48 £62.90

  28 Washer
Washer
HA02575
Available to backorder
Washer
£1.58 £1.32

  31 Cutterbar 19
Cutterbar 19
HA480149
In stock
Cutterbar 19" For Harrier
£26.36 £21.97

  34 Grip-Fix
Grip-Fix
HA04020
In stock
Grip-Fix
£1.60 £1.33

  38 Axle Front
Axle Front
HA4478
Available to backorder
Axle Front
£49.36 £41.13

  39 Plate Front Axle N/S
Plate Front Axle N/S
HA4479
Available to backorder
Plate Front Axle N/S
£47.26 £39.38

  40 Wheel-Ribbed
Wheel-Ribbed
HA111-1250
In stock
Wheel-Ribbed
£33.18 £27.65

  41 Bearing 1/2
Bearing 1/2
HA104-8699
Available to backorder
Bearing 1/2" Ball Assy
£5.26 £4.38

  42 Handwheel Triangular
Handwheel Triangular
HA226013
In stock
Handwheel Triangular
£6.98 £5.82

  44 Cap Hub
Cap Hub
HA219143
Available to backorder
Cap Hub
£7.02 £5.85

  53 Circlip
Circlip
HA03096
In stock
Circlip
£1.58 £1.32

  61 Washer-Spring
Washer-Spring
HA03469
Available to backorder
Washer-Spring
£1.58 £1.32

  64 Plate Cover
Plate Cover
HA5283
Available to backorder
Plate Cover
£72.60 £60.50

  69 Washer-Spring
Washer-Spring
HA09273
In stock
Washer-Spring
£1.66 £1.38

  72 Washer-Plain
Washer-Plain
HA09267
Available to backorder
Washer-Plain
£1.56 £1.30

  74 Washer-Plain
Washer-Plain
HA09266
Available to backorder
Washer-Plain
£1.40 £1.17

  77 Setscrew Unf 1/4 x 5/8 S Qual
Setscrew Unf 1/4 x 5/8 S Qual
HA09039
Available to backorder
Setscrew Unf 1/4 x 5/8 S Qual
£1.58 £1.32

  78 Bolt-Coach
Bolt-Coach
HA09373
Available to backorder
Bolt-Coach
£1.48 £1.23

  81 5/16
5/16
HA09345
Available to backorder
5/16" Unf x 1 1/2" Bolt
£1.50 £1.25

  84 Screw Hex Hd 3/8 Unf x11/4
Screw Hex Hd 3/8 Unf x11/4
HA09116
Available to backorder
Screw Hex Hd 3/8 Unf x11/4
£1.58 £1.32

  86 Nut
Nut
HA09201
Available to backorder
Nut
£1.58 £1.32

  90 Nut M8 Plain
Nut M8 Plain
HAZNH1H000U
Available to backorder
Nut M8 Plain
£1.68 £1.40

  92 Washer-Plain
Washer-Plain
HA09261
Available to backorder
Washer-Plain
£1.58 £1.32


Description

Hayter Harrier 2 19 - 216

Serial No: 216-63076 - 216-79135

Mainframe Assembly - Parts Diagram
