Hayter Harrier 19 - 083 (083-54026 - 083-99999) - Mainframe Assembly

Name: Hayter Harrier 19 - 083 (083-54026 - 083-99999) - Mainframe Assembly
SKU: harrier 19 psei642 mainframe assembly-group
Price: 0.4 GBP
Availability: InStock

Part No. harrier 19 psei642 mainframe assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 19 - 083 (083-54026 - 083-99999) - Mainframe Assembly

Description

Hayter Harrier 19 - 083

Serial No: 083-54026 - 083-99999

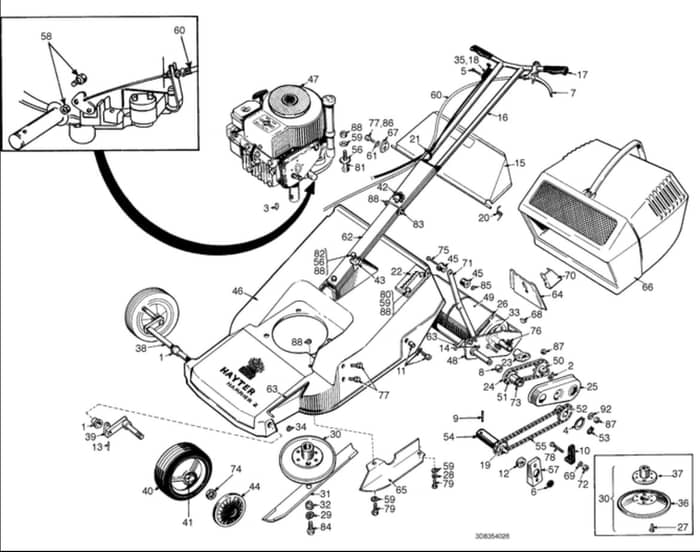

Mainframe Assembly - Parts Diagram

	Part No.	Details
2	HA1428 Available to backorder	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.76 £1.47
3	HA1662 In stock	Key-Woodruff	£1.66 £1.38
4	HA02708 In stock	Circlip Ext 3/4"	£0.48 £0.40
6	HA4331 Available to backorder	Tine L.H.	£2.28 £1.90
9	HA03997 In stock	Pin-Roll	£1.84 £1.53
12	HA3296 Available to backorder	19 Nut	£1.74 £1.45
13	HAHY03354 In stock	Pin-Spring. Selloc	£1.81 £1.51
14	HAHY03667 Available to backorder	Rivet Dia 3/16"*1/2" Flat Hd	£1.69 £1.41
16	HA3958 Available to backorder	Handlebar Upper	£74.88 £62.40
28	HA03469 Available to backorder	Washer-Spring	£1.63 £1.36
29	HA09273 In stock	Washer-Spring	£1.84 £1.53
31	HA480149 In stock	Cutterbar 19" For Harrier	£29.04 £24.20
34	HA04020 In stock	Grip-Fix	£1.76 £1.47
38	HA4478 Available to backorder	Axle Front	£48.62 £40.52
39	HA4479 Available to backorder	Plate Front Axle N/S	£46.55 £38.79
40	HA111-1250 In stock	Wheel-Ribbed	£35.56 £29.63
41	HA104-8699 In stock	Bearing 1/2" Ball Assy	£5.77 £4.81
44	HA219143 Available to backorder	Cap Hub	£7.26 £6.05
53	HA03096 In stock	Circlip	£1.75 £1.46
56	HA09267 Available to backorder	Washer-Plain	£1.76 £1.47
59	HA09266 Available to backorder	Washer-Plain	£1.45 £1.21
61	HA09261 Available to backorder	Washer-Plain	£1.63 £1.36
64	HA5283 Available to backorder	Plate Cover	£72.00 £60.00
72	HAZNH1H000U Available to backorder	Nut M8 Plain	£1.74 £1.45
77	HA09039 Available to backorder	Setscrew Unf 1/4 x 5/8 S Qual	£1.63 £1.36
78	HA09373 Available to backorder	Bolt-Coach	£1.66 £1.38
81	HA09345 Available to backorder	5/16" Unf x 1 1/2" Bolt	£1.55 £1.29
84	HA09116 In stock	Screw Hex Hd 3/8 Unf x11/4	£1.69 £1.41
86	HA09201 Available to backorder	Nut	£1.63 £1.36
