Hayter Harrier 19 - 083 (083-30526 - 083-42198) - Mainframe Assembly

Name: Hayter Harrier 19 - 083 (083-30526 - 083-42198) - Mainframe Assembly
SKU: harrier 19 psei640 mainframe assembly-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 19 - 083 (083-30526 - 083-42198) - Mainframe Assembly

Description

Hayter Harrier 19 - 083

Serial No: 083-30526 - 083-42198

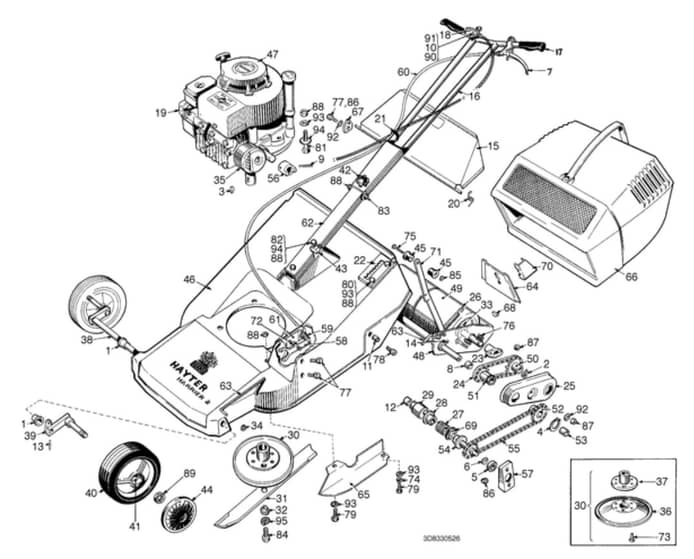

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA1428 Out of stock	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.63 £1.36
3	HA1662 In stock	Key-Woodruff	£1.63 £1.36
4	HA2382 Out of stock	Circlip Ext 3/4"	£0.38 £0.32
5	HA2562 Out of stock	Bearing	£9.43 £7.86
6	HA02575 Out of stock	Washer	£1.72 £1.43
11	HA5263 Out of stock	Bolt Assy Axle Pivot	£5.60 £4.67
12	HA3296 Out of stock	19 Nut	£1.63 £1.36
13	HAHY03354 In stock	Pin-Spring. Selloc	£1.76 £1.47
14	HAHY03667 Out of stock	Rivet Dia 3/16"*1/2" Flat Hd	£1.67 £1.39
16	HA3958 Out of stock	Handlebar Upper	£75.48 £62.90
18	HA3961 Out of stock	Throttle Contr 5914/L2	£34.97 £29.14
20	HA3965 Out of stock	Spring Deflector Plate	£2.32 £1.93
21	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
23	HA3971 Out of stock	Housing Bearing Roller	£9.43 £7.86
29	HA5408 Out of stock	Shroud Clutch Moulding	£4.51 £3.76
31	HA4013 Out of stock	Cutterbar 19" For Harrier	£32.06 £26.72
32	HA4014 Out of stock	Drag Plate	£12.24 £10.20
33	HA4017 Out of stock	Washer Nylon	£2.75 £2.29
34	HA04020 In stock	Grip-Fix	£1.74 £1.45
35	HA4100 Out of stock	Silencer	£32.14 £26.78
38	HA4478 Out of stock	Axle Front	£49.36 £41.13
39	HA4479 Out of stock	Plate Front Axle N/S	£47.26 £39.38
40	HA111-1250 In stock	Wheel-Ribbed	£32.40 £27.00
41	HA5221 Out of stock	Bearing 1/2" Ball Assy	£3.05 £2.54
44	HA219143 Out of stock	Cap Hub	£7.32 £6.10
55	HA5418 Out of stock	Chain 76 Pitch x 3/8"& Spr Lnk	£17.70 £14.75
57	HA5276 Out of stock	Housing Bearing Drive Shaft	£7.56 £6.30
58	HAHY5277 Out of stock	Fork Clutch	£6.52 £5.43
59	HAHY5278 Out of stock	Spring Clutch Fork Compression	£1.40 £1.17
60	HA5406 Out of stock	Ass-Y. Worm & Gear Box	£28.61 £23.84
64	HA5283 Out of stock	Plate Cover	£72.60 £60.50
69	HA5414 Out of stock	Cover Clutch Moulding	£3.91 £3.26
72	HA5404 Out of stock	Spacer Clutch Fork	£5.48 £4.57
74	HA03469 Out of stock	Washer-Spring	£1.72 £1.43
77	HA09039 Out of stock	Setscrew Unf 1/4 x 5/8 S Qual	£1.72 £1.43
81	HA09345 Out of stock	5/16" Unf x 1 1/2" Bolt	£1.63 £1.36
84	HA09116 Out of stock	Screw Hex Hd 3/8 Unf x11/4	£1.72 £1.43
86	HA09201 Out of stock	Nut	£1.72 £1.43
89	HAHY4486 In stock	Nut Unf 1/2"Nyloc Ext Thin5/16	£1.76 £1.47
91	HA09257 Out of stock	Washer	£1.72 £1.43
92	HA09261 Out of stock	Washer-Plain	£1.72 £1.43
93	HA09266 Out of stock	Washer-Plain	£1.52 £1.27
94	HA09267 Out of stock	Washer-Plain	£1.69 £1.41
95	HA09273 In stock	Washer-Spring	£1.81 £1.51
