Hayter Harrier 19 - 083 (083-27526 - 083-30525) - Mainframe Assembly

Part No. harrier 19 psei639 mainframe assembly-group
Hayter Harrier 19 - 083 (083-27526 - 083-30525) - Mainframe Assembly
Hayter Harrier 19 - 083 (083-27526 - 083-30525) - Mainframe Assembly

Description

Hayter Harrier 19 - 083

Serial No: 083-27526 - 083-30525

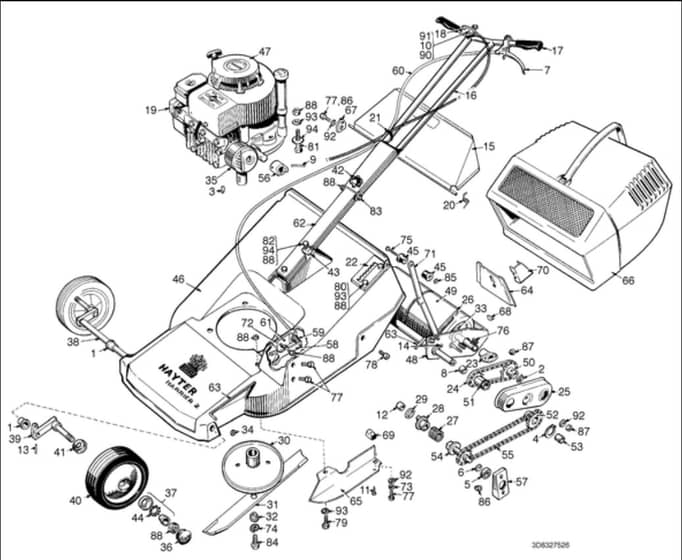

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  2 1/4-20 x 5/8 Hex Hd. Cap Screw
1/4-20 x 5/8 Hex Hd. Cap Screw
HA1428
Available to backorder
1/4-20 x 5/8 Hex Hd. Cap Screw
£1.76 £1.47

  3 Key-Woodruff
Key-Woodruff
HA1662
In stock
Key-Woodruff
£1.66 £1.38

  4 Circlip Ext 3/4
Circlip Ext 3/4
HA2382
Available to backorder
Circlip Ext 3/4"
£0.37 £0.31

  6 Washer
Washer
HA02575
Available to backorder
Washer
£1.68 £1.40

  12 19 Nut
19 Nut
HA3296
Available to backorder
19 Nut
£1.74 £1.45

  13 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354
In stock
Pin-Spring. Selloc
£1.81 £1.51

  14 Rivet Dia 3/16
Rivet Dia 3/16
HAHY03667
Available to backorder
Rivet Dia 3/16"*1/2" Flat Hd
£1.69 £1.41

  16 Handlebar Upper
Handlebar Upper
HA3958
Available to backorder
Handlebar Upper
£74.88 £62.40

  31 Cutterbar 19
Cutterbar 19
HA480149
In stock
Cutterbar 19" For Harrier
£29.04 £24.20

  34 Grip-Fix
Grip-Fix
HA04020
In stock
Grip-Fix
£1.76 £1.47

  35 Silencer
Silencer
HA4100
Available to backorder
Silencer
£31.66 £26.38

  38 Axle Front
Axle Front
HA4478
Available to backorder
Axle Front
£48.62 £40.52

  39 Plate Front Axle N/S
Plate Front Axle N/S
HA4479
Available to backorder
Plate Front Axle N/S
£46.55 £38.79

  40 Wheel Assy 7
Wheel Assy 7
HA4568
Available to backorder
Wheel Assy 7"x 1.1/2"
£22.43 £18.69

  41 Decal
Decal
HA93-1122
Available to backorder
Decal
£11.14 £9.28

  57 Housing Bearing Drive Shaft
Housing Bearing Drive Shaft
HA5276
Available to backorder
Housing Bearing Drive Shaft
£7.45 £6.21

  58 Fork Clutch
Fork Clutch
HAHY5277
Available to backorder
Fork Clutch
£6.20 £5.17

  59 Spring Clutch Fork Compression
Spring Clutch Fork Compression
HAHY5278
Available to backorder
Spring Clutch Fork Compression
£1.33 £1.11

  61 Knob-Lift Control
Knob-Lift Control
HA5280
Available to backorder
Knob-Lift Control
£43.26 £36.05

  64 Plate Cover
Plate Cover
HA5283
Available to backorder
Plate Cover
£72.00 £60.00

  72 Spacer Clutch Fork
Spacer Clutch Fork
HA5404
Available to backorder
Spacer Clutch Fork
£5.40 £4.50

  73 Washer-Spring
Washer-Spring
HA1-805004
Available to backorder
Washer-Spring
£1.14 £0.95

  74 Washer-Spring
Washer-Spring
HA09273
In stock
Washer-Spring
£1.84 £1.53

  77 Setscrew Unf 1/4 x 5/8 S Qual
Setscrew Unf 1/4 x 5/8 S Qual
HA09039
Available to backorder
Setscrew Unf 1/4 x 5/8 S Qual
£1.63 £1.36

  81 5/16
5/16
HA09345
Available to backorder
5/16" Unf x 1 1/2" Bolt
£1.55 £1.29

  84 Screw Hex Hd 3/8 Unf x11/4
Screw Hex Hd 3/8 Unf x11/4
HA09116
In stock
Screw Hex Hd 3/8 Unf x11/4
£1.69 £1.41

  86 Nut
Nut
HA09201
Available to backorder
Nut
£1.63 £1.36

  91 Washer
Washer
HA09257
Available to backorder
Washer
£1.63 £1.36

  92 Washer-Plain
Washer-Plain
HA09261
Available to backorder
Washer-Plain
£1.63 £1.36

  93 Washer-Plain
Washer-Plain
HA09266
Available to backorder
Washer-Plain
£1.45 £1.21

  94 Washer-Plain
Washer-Plain
HA09267
Available to backorder
Washer-Plain
£1.76 £1.47


Description

Hayter Harrier 19 - 083

Serial No: 083-27526 - 083-30525

Mainframe Assembly - Parts Diagram
