Hayter Harrier 19 - 046 (046-H19351 - 046-H22350) - Mainframe Assembly

Name: Hayter Harrier 19 - 046 (046-H19351 - 046-H22350) - Mainframe Assembly
SKU: harrier 19 psei631 mainframe assembly-group
Price: 1.38 GBP
Availability: InStock

Part No. harrier 19 psei631 mainframe assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 19 - 046 (046-H19351 - 046-H22350) - Mainframe Assembly

Description

Hayter Harrier 19 - 046

Serial No: 046-H19351 - 046-H22350

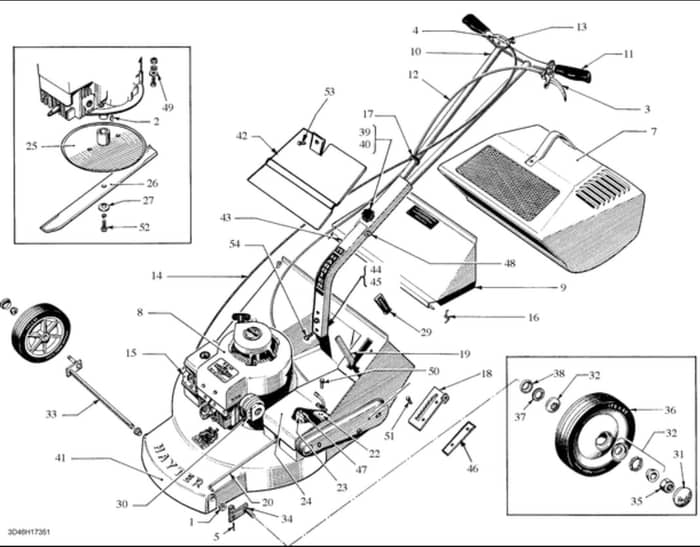

Mainframe Assembly - Parts Diagram

	Part No.	Details
2	HA1662 In stock	Key-Woodruff	£1.66 £1.38
5	HAHY03354 In stock	Pin-Spring. Selloc	£1.81 £1.51
7	HA3955 Available to backorder	Grassbag Assy	£137.40 £114.50
10	HA3958 Available to backorder	Handlebar Upper	£74.88 £62.40
26	HA480149 In stock	Cutterbar 19" For Harrier	£29.04 £24.20
29	HAHY4097 Available to backorder	Handle Grip	£13.66 £11.38
30	HA4100 Available to backorder	Silencer	£31.66 £26.38
33	HA4478 Available to backorder	Axle Front	£48.62 £40.52
34	HA4479 Available to backorder	Plate Front Axle N/S	£46.55 £38.79
35	HA4486 In stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.81 £1.51
36	HA4568 Available to backorder	Wheel Assy 7"x 1.1/2"	£22.43 £18.69
38	HA93-1122 Available to backorder	Decal	£11.14 £9.28
