Hayter Harrier 19 - 046 (046-H17351 - 046-H19350) - Transmission Assembly

Description

Hayter Harrier 19 - 046

Serial No: 046-H17351 - 046-H19350

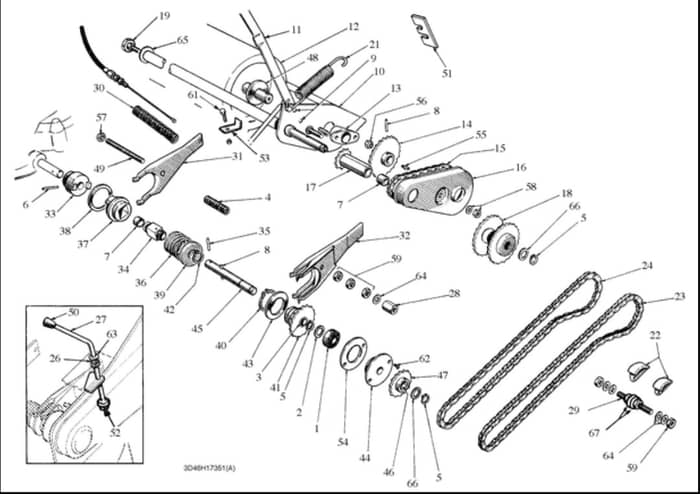

Transmission Assembly - Parts Diagram

	Part No.	Details
2	HA02575 Available to backorder	Washer	£1.68 £1.40
5	HA03096 In stock	Circlip	£1.75 £1.46
7	HA3296 Available to backorder	19 Nut	£1.74 £1.45
8	HAHY03354 In stock	Pin-Spring. Selloc	£1.81 £1.51
9	HAHY03667 Available to backorder	Rivet Dia 3/16"*1/2" Flat Hd	£1.69 £1.41
12	HA3970 Available to backorder	Roller 19" Rear (6158)	£54.46 £45.38
18	HA3976 Available to backorder	Sleeve Sprocket 24T	£64.56 £53.80
27	HA3988 Available to backorder	Lever Speed Control	£36.29 £30.24
32	HA102119 Available to backorder	Throttle Control	£66.00 £55.00
35	HA03997 In stock	Pin-Roll	£1.84 £1.53
42	HA04004 Available to backorder	Circlip Ext 13/16	£1.63 £1.36
45	HA4007 Available to backorder	Shaft Extension	£65.64 £54.70
47	HA4009 Available to backorder	Sprocket 15T	£106.08 £88.40
52	HA4896 Available to backorder	Boss Lever Gear Change	£28.03 £23.36
