Hayter Envoy 36 - 100J (402000000 - 599999999) - Mainframe Assembly

Description

Hayter Envoy 36 - 100J

Serial No: 402000000 - 599999999

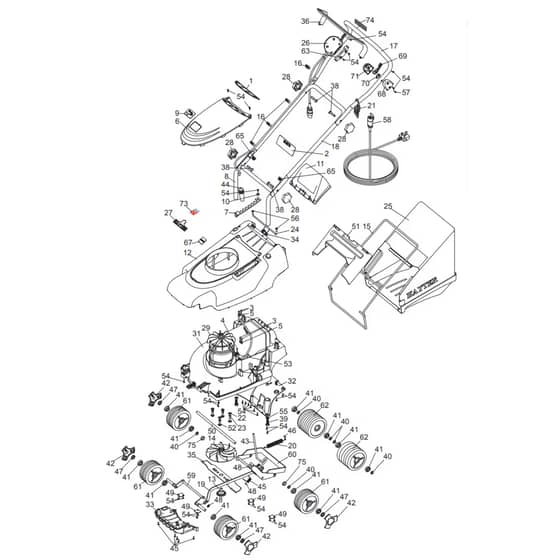

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-8124 Available to backorder	Moulding-Vent. Support	£119.99 £99.99
2	HA111-5173 Available to backorder	Decal-Safety. Electric	£2.75 £2.29
3	HA111-9903 In stock	Screw	£1.56 £1.30
4	HA134-0439 Available to backorder	Screw	£1.78 £1.48
5	HA111-0117 Available to backorder	Clamp-Cable	£0.43 £0.36
6	HA111-0538 Available to backorder	Cover Electric Trim	£53.54 £44.62
7	HA111-0539 Available to backorder	Plate-Hoc	£18.00 £15.00
8	HA111-0540-03 Available to backorder	Handlebar-Lower	£20.72 £17.27
9	HA111-4441 Available to backorder	Decal Envoy Electric China Only)	£3.64 £3.03
10	HA111-0543 Available to backorder	Cover-Screw. Hoc	£1.66 £1.38
11	HA111-1042 Available to backorder	Deflector-Rear	£22.18 £18.48
12	HA111-1055 Available to backorder	Top Cover	£59.30 £49.42
13	HA134-3399 In stock	Bolt-Fixing. Cutterbar	£3.14 £2.62
14	HA100014 In stock	Carrier-Cutterbar	£16.22 £13.52
15	HA100016-03 Available to backorder	Frame-Grassbag	£23.68 £19.73
16	HA100023 Available to backorder	Clip-Cable	£1.78 £1.48
17	HA100024 Available to backorder	Handlebar-Upper	£62.34 £51.95
18	HA100025-03 Available to backorder	Handlebar-Middle	£24.44 £20.37
19	HA100037 Available to backorder	Rod-Connecting	£9.70 £8.08
20	HA100080 Available to backorder	Spring-Balance. Counter	£1.24 £1.03
21	HA100105 Available to backorder	Cleat-Cable	£4.04 £3.37
22	HA09475 Available to backorder	Washer	£1.58 £1.32
23	HA03469 Available to backorder	Washer-Spring	£1.58 £1.32
24	HA100126 Available to backorder	Rod-Deflector	£1.96 £1.63
25	HA100513 Available to backorder	Grassbag - Fabric	£55.84 £46.53
26	HA100515 In stock	Switch - Assy/ Trailing Lead	£40.00 £33.33
27	HA410087 In stock	Decal	£5.66 £4.72
28	HA480088 In stock	Knob-Handlebar	£5.48 £4.57
31	HAHY100003 Available to backorder	Underdeck	£101.14 £84.28
32	HAHY100004 Available to backorder	Throwplate	£19.48 £16.23
33	HAHY100006 Available to backorder	Fins	£26.00 £21.67
34	HA111-7417 Available to backorder	Spring-Deflector	£1.68 £1.40
35	HAHY100012 In stock	Cutterbar	£23.16 £19.30
36	HA134-2162 Available to backorder	Arm-Bail	£7.62 £6.35
38	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
40	HAHY100030 Available to backorder	Spacer-Wheel. Rear	£1.75 £1.46
41	HAHY100033 In stock	Bearing-Wheel	£4.26 £3.55
42	HAHY100036 Available to backorder	Hub Cap	£1.88 £1.57
43	HAHY100038 Available to backorder	Lever-Hoc	£4.84 £4.03
44	HA480134 In stock	Knob-Hoc	£2.14 £1.78
45	HAHY100041 Available to backorder	Spring-Hoc	£1.75 £1.46
46	HAHY100042 Available to backorder	Pin-Spring. Hoc	£1.22 £1.02
48	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
49	HAHY100064 Available to backorder	Plate-Pivot. Axle	£1.75 £1.46
50	HAHY100068 Available to backorder	Rod-Axle. Rear	£11.48 £9.57
51	HAHY100075 Available to backorder	Top-Grassbag	£19.70 £16.42
52	HAHY100076 Available to backorder	Bolt-Motor	£1.22 £1.02
53	HAHY100077 Available to backorder	Block-Terminal	£1.75 £1.46

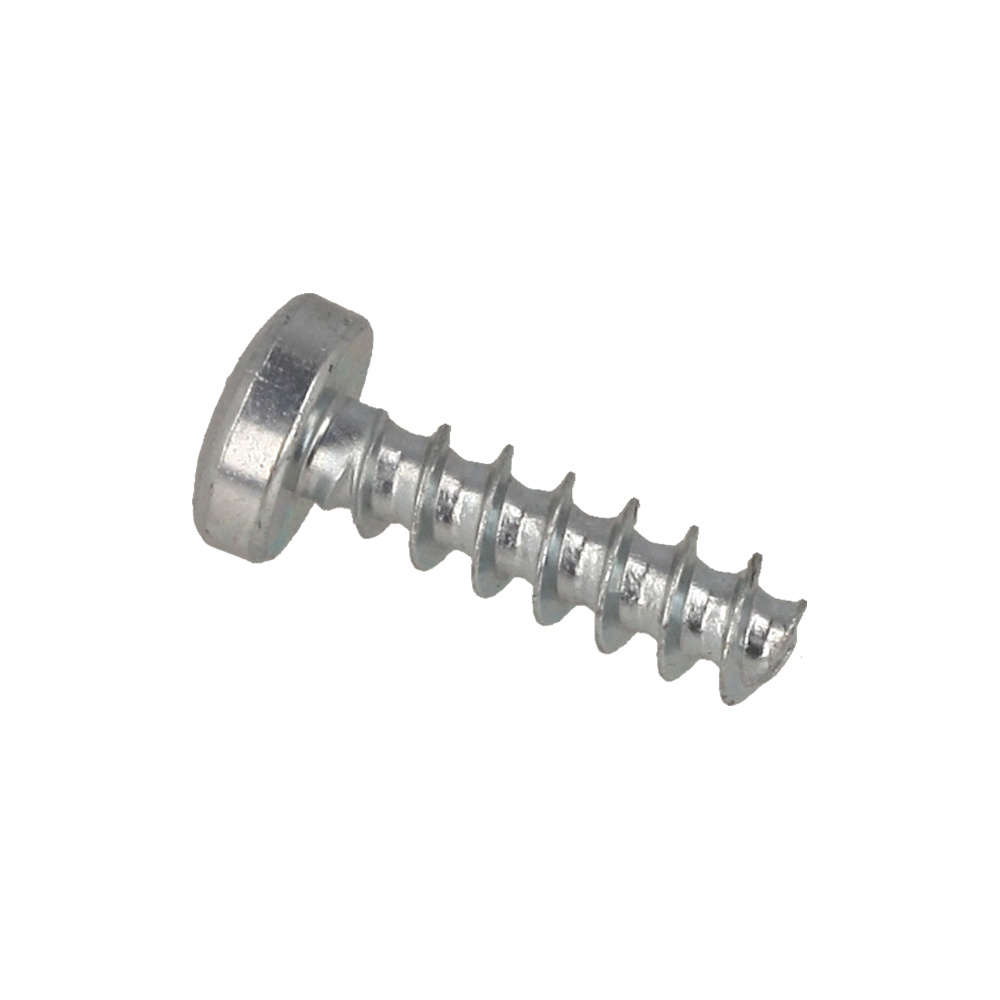

54	HA111-9904 In stock	Screw	£1.68 £1.40
55	HAHY100079 Available to backorder	Washer	£1.75 £1.46
56	HA134-0442 Available to backorder	Screw	£0.43 £0.36
57	HA134-0440 Available to backorder	Screw	£1.78 £1.48
58	HAHY100135 Available to backorder	Main Lead	£23.88 £19.90
59	HAHY100503 Available to backorder	Front Axle Asm	£29.98 £24.98
60	HAHY100504 Available to backorder	Rear Axle Asm	£28.32 £23.60
61	HAHY100505 Available to backorder	Wheel Asm	£14.20 £11.83
62	HAHY100506 Available to backorder	Wheel Assy Wide	£14.84 £12.37
63	HAHY100021 Available to backorder	Switch-Left. Lower	£2.51 £2.09
67	HA320006 In stock	Decal-Hoc	£1.66 £1.38
68	HA100085 Available to backorder	Mount-Left	£1.78 £1.48
69	HAHY100088 Available to backorder	Lever-Mount	£1.75 £1.46
70	HAHY100087 Available to backorder	Spring-Bailarm	£1.75 £1.46
71	HA100086 Available to backorder	Mount-Right	£1.78 £1.48
73	HA111-7722 Available to backorder	Made In Britain Decal	£1.48 £1.23
74	HA111-7418 Available to backorder	Decal - Restarting Motor	£2.16 £1.80
75	HAZWP1L000U Available to backorder	Washer-Plain	£2.32 £1.93
