Hayter Envoy 36 - 100J (400000000 - 401999999) - Mainframe Assembly

Name: Hayter Envoy 36 - 100J (400000000 - 401999999) - Mainframe Assembly
SKU: envoy 36 100j01 mainframe assembly-group
Price: 0.36 GBP
Availability: InStock

Part No. envoy 36 100j01 mainframe assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Envoy 36 - 100J (400000000 - 401999999) - Mainframe Assembly

Description

Hayter Envoy 36 - 100J

Serial No: 400000000 - 401999999

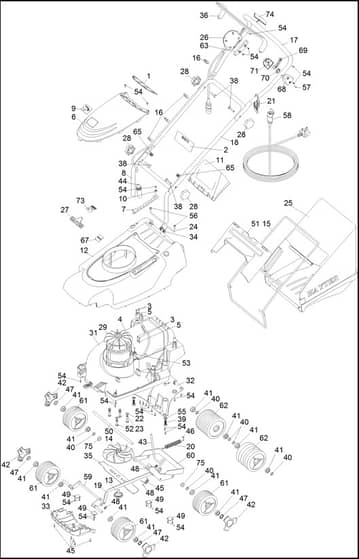

Mainframe Assembly - Parts Diagram

	Part No.	Details
1	HA111-0074 Available to backorder	Vent Mesh Asm	£5.40 £4.50
2	HA111-5173 Available to backorder	Decal-Safety. Electric	£2.75 £2.29
3	HA111-9903 In stock	Screw	£1.72 £1.43
4	HA134-0439 Available to backorder	Screw	£1.78 £1.48
5	HA111-0117 Available to backorder	Clamp-Cable	£0.43 £0.36
6	HA111-0538 Available to backorder	Cover Electric Trim	£55.39 £46.16
7	HA111-0539 Available to backorder	Plate-Hoc	£18.62 £15.52
8	HA111-0540-03 Available to backorder	Handlebar-Lower	£21.43 £17.86
9	HA111-4441 Available to backorder	Decal Envoy Electric China Only)	£3.64 £3.03
10	HA111-0543 Available to backorder	Cover-Screw. Hoc	£1.72 £1.43
11	HA111-1042 Available to backorder	Deflector-Rear	£23.60 £19.67
12	HA111-1055 Available to backorder	Top Cover	£61.34 £51.12
13	HA134-3399 In stock	Bolt-Fixing. Cutterbar	£3.46 £2.88
14	HA100014 In stock	Carrier-Cutterbar	£17.90 £14.92
15	HA100016-03 Available to backorder	Frame-Grassbag	£24.49 £20.41
16	HA100023 Available to backorder	Clip-Cable	£1.54 £1.28
17	HA100024 Available to backorder	Handlebar-Upper	£65.88 £54.90
18	HA100025-03 Available to backorder	Handlebar-Middle	£25.28 £21.07
19	HA100037 Available to backorder	Rod-Connecting	£9.70 £8.08
20	HA100080 Available to backorder	Spring-Balance. Counter	£1.24 £1.03
21	HA100105 Available to backorder	Cleat-Cable	£4.18 £3.48
22	HA09475 Available to backorder	Washer	£1.76 £1.47
23	HA03469 Available to backorder	Washer-Spring	£1.63 £1.36
24	HA100126 Available to backorder	Rod-Deflector	£2.03 £1.69
25	HA100513 Available to backorder	Grassbag - Fabric	£57.77 £48.14
26	HA100515 In stock	Switch - Assy/ Trailing Lead	£42.86 £35.72
27	HA410087 In stock	Decal	£6.24 £5.20
28	HA480088 In stock	Knob-Handlebar	£5.87 £4.89
31	HAHY100003 Available to backorder	Underdeck	£101.16 £84.30
32	HAHY100004 Available to backorder	Throwplate	£20.15 £16.79
33	HAHY100006 Available to backorder	Fins	£26.89 £22.41
34	HA111-7417 Available to backorder	Spring-Deflector	£1.49 £1.24
35	HAHY100012 In stock	Cutterbar	£25.49 £21.24
36	HA134-2162 Available to backorder	Arm-Bail	£8.11 £6.76
38	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
40	HAHY100030 Available to backorder	Spacer-Wheel. Rear	£1.51 £1.26
41	HAHY100033 In stock	Bearing-Wheel	£4.70 £3.92
42	HAHY100036 Available to backorder	Hub Cap	£1.94 £1.62
43	HAHY100038 Available to backorder	Lever-Hoc	£4.84 £4.03
45	HAHY100041 Available to backorder	Spring-Hoc	£1.51 £1.26
46	HAHY100042 Available to backorder	Pin-Spring. Hoc	£1.22 £1.02
48	HA0201086 In stock	Washer-Starlock	£1.84 £1.53
49	HAHY100064 Available to backorder	Plate-Pivot. Axle	£1.51 £1.26
50	HAHY100068 Available to backorder	Rod-Axle. Rear	£11.88 £9.90
51	HAHY100075 Available to backorder	Top-Grassbag	£21.54 £17.95
52	HAHY100076 Available to backorder	Bolt-Motor	£1.22 £1.02
53	HAHY100077 Available to backorder	Block-Terminal	£1.51 £1.26
54	HAHY100078 In stock	Screw	£1.68 £1.40
55	HAHY100079 Available to backorder	Washer	£1.51 £1.26
56	HA09687 In stock	Screw	£1.84 £1.53
58	HAHY100135 In stock	Main Lead	£25.52 £21.27
59	HAHY100503 Available to backorder	Front Axle Asm	£31.01 £25.84
60	HAHY100504 Available to backorder	Rear Axle Asm	£29.29 £24.41
61	HAHY100505 Available to backorder	Wheel Asm	£14.69 £12.24
62	HAHY100506 Available to backorder	Wheel Assy Wide	£15.35 £12.79
63	HAHY100021 Available to backorder	Switch-Left. Lower	£2.51 £2.09
67	HA320006 In stock	Decal-Hoc	£1.79 £1.49
68	HA100085 Available to backorder	Mount-Left	£1.54 £1.28
69	HAHY100088 Available to backorder	Lever-Mount	£1.55 £1.29
70	HAHY100087 Available to backorder	Spring-Bailarm	£1.75 £1.46
71	HA100086 Available to backorder	Mount-Right	£1.54 £1.28
73	HA111-7722 In stock	Made In Britain Decal	£1.66 £1.38
74	HA111-7418 Available to backorder	Decal - Restarting Motor	£2.16 £1.80
75	HAZWP1L000U Available to backorder	Washer-Plain	£2.54 £2.12
