Hayter Envoy 36 - 100J (315000001 - 316000100) - D Of C_Parts List Envoy 36 100J:En

Description

Hayter Envoy 36 - 100J

Serial No: 315000001 - 316000100

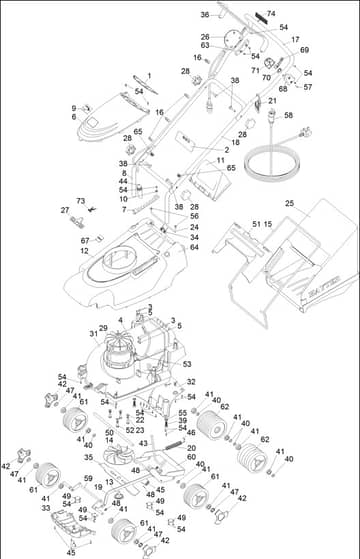

D Of C_Parts List Envoy 36 100J:En - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-0074 Out of stock	Vent Mesh Asm	£4.34 £3.62
2	HA111-5173 Out of stock	Decal-Safety. Electric	£2.10 £1.75
3	HA111-9903 In stock	Screw	£1.61 £1.34
4	HA134-0439 Out of stock	Screw	£1.24 £1.03
5	HA111-0117 Out of stock	Clamp-Cable	£119.99 £99.99
6	HA111-0538 Out of stock	Cover Electric Trim	£54.88 £45.73
7	HA111-0539 Out of stock	Plate-Hoc	£18.47 £15.39
8	HA111-0540-03 Out of stock	Handlebar-Lower	£21.25 £17.71
9	HA111-4441 Out of stock	Decal Envoy Electric China Only)	£3.64 £3.03
10	HA111-0543 Out of stock	Cover-Screw. Hoc	£1.69 £1.41
11	HA111-1042 Out of stock	Deflector-Rear	£22.73 £18.94
12	HA111-1055 Out of stock	Top Cover	£59.76 £49.80
13	HA134-3399 In stock	Bolt-Fixing. Cutterbar (Nylon)	£3.22 £2.68
14	HA100014 Out of stock	Carrier-Cutterbar	£15.83 £13.19
15	HA100016-03 Out of stock	Frame-Grassbag	£24.29 £20.24
16	HA100023 Out of stock	Clip-Cable	£1.52 £1.27
17	HA100024 Out of stock	Handlebar-Upper	£60.84 £50.70
18	HA100025-03 Out of stock	Handlebar-Middle	£25.04 £20.87
19	HA100037 Out of stock	Rod-Connecting	£9.70 £8.08
20	HA100080 Out of stock	Spring-Balance. Counter	£1.24 £1.03
21	HA100105 Out of stock	Cleat-Cable	£4.07 £3.39
22	HA09475 Out of stock	Washer	£1.72 £1.43
23	HA03469 Out of stock	Washer-Spring	£1.72 £1.43
24	HA100126 Out of stock	Rod-Deflector	£2.02 £1.68
25	HA100513 Out of stock	Grassbag - Fabric	£57.20 £47.67
26	HA100515 In stock	Switch - Assy/ Trailing Lead	£40.99 £34.16
27	HA410087 In stock	Decal	£5.86 £4.88
28	HA480088 In stock	Knob-Handlebar	£5.63 £4.69
31	HAHY100003 Out of stock	Underdeck	£96.24 £80.20
32	HAHY100004 Out of stock	Throwplate	£19.97 £16.64
33	HAHY100006 Out of stock	Fins	£26.63 £22.19
34	HA111-7417 Out of stock	Spring-Deflector	£1.48 £1.23
35	HAHY100012 In stock	Cutterbar	£27.85 £23.21
36	HA134-2162 Out of stock	Arm-Bail	£7.82 £6.52
38	HAHY226024 In stock	Bolt-Handlebar	£1.67 £1.39
40	HAHY100030 Out of stock	Spacer-Wheel. Rear	£1.50 £1.25
41	HAHY100033 Out of stock	Bearing-Wheel	£4.37 £3.64
42	HAHY100036 Out of stock	Hub Cap	£1.93 £1.61
43	HAHY100038 Out of stock	Lever-Hoc	£4.84 £4.03
45	HAHY100041 Out of stock	Spring-Hoc	£1.50 £1.25
46	HAHY100042 Out of stock	Pin-Spring. Hoc	£1.22 £1.02
48	HA0201086 In stock	Washer-Starlock	£1.61 £1.34
49	HAHY100064 Out of stock	Plate-Pivot. Axle	£1.50 £1.25
50	HAHY100068 Out of stock	Rod-Axle. Rear	£11.77 £9.81
51	HAHY100075 In stock	Top-Grassbag	£19.74 £16.45
52	HAHY100076 Out of stock	Bolt-Motor	£1.22 £1.02
53	HAHY100077 Out of stock	Block-Terminal	£1.50 £1.25
54	HAHY100078 Out of stock	Screw	£1.50 £1.25
55	HAHY100079 Out of stock	Washer	£1.50 £1.25
56	HA09687 In stock	Screw	£1.69 £1.41
58	HAHY100135 Out of stock	Main Lead	£51.20 £42.67
59	HAHY100503 Out of stock	Front Axle Asm	£30.72 £25.60
60	HAHY100504 Out of stock	Rear Axle Asm	£29.03 £24.19
61	HAHY100505 Out of stock	Wheel Asm	£14.56 £12.13
62	HAHY100506 Out of stock	Wheel Assy Wide	£15.23 £12.69
63	HAHY100021 Out of stock	Switch-Left. Lower	£1.86 £1.55
67	HA320006 In stock	Decal-Hoc	£1.69 £1.41
68	HA100085 Out of stock	Mount-Left	£1.52 £1.27
69	HAHY100088 Out of stock	Lever-Mount	£1.50 £1.25
70	HAHY100087 Out of stock	Spring-Bailarm	£1.22 £1.02
71	HA100086 Out of stock	Mount-Right	£1.52 £1.27
73	HA111-7722 Out of stock	Decal Made In Britain	£1.52 £1.27
74	HA111-7418 Out of stock	Decal - Restarting Motor	£2.16 £1.80
