Hayter Condor Ratchet Drive - 511L (511L001001 - 511L099999) - Transmission

Description

Hayter Condor Ratchet Drive - 511L

Serial No: 511L001001 - 511L099999

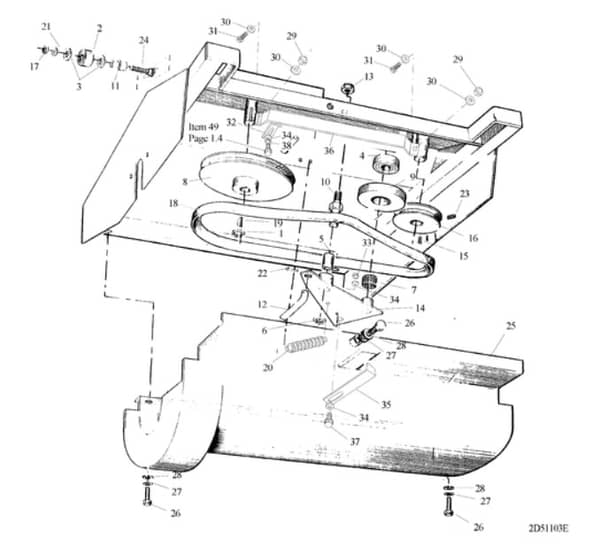

Transmission - Parts Diagram

	Part No.	Details
1	HA1428 Available to backorder	1/4-20 x 5/8 Hex Hd. Cap Screw	£1.76 £1.47
3	HA2575 Available to backorder	Washer	£1.68 £1.40
6	HA3096 In stock	Circlip	£1.75 £1.46
13	HA09216 Available to backorder	Nut-Hex. Ni	£1.74 £1.45
20	HA1246 Available to backorder	Spring Clutch Shoe Return	£3.25 £2.71
21	HA09266 Available to backorder	Washer-Plain	£1.45 £1.21
22	HA09303 Available to backorder	1/2"x3/32" Split Pin	£1.74 £1.45
29	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
30	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
31	HA09364 In stock	Screw-HH	£1.76 £1.47
32	HA511059W Available to backorder	Guide Belt - Short.	£119.99 £99.99
33	HA09442 Available to backorder	Nut	£1.63 £1.36
34	HA09475 Available to backorder	Washer	£1.76 £1.47
