Hayter Condor 30" Verge Attachment - 214L (214L001001 - 214L099999) - Transmission Assy

Description

Hayter Condor 30" Verge Attachment - 214L

Serial No: 214L001001 - 214L099999

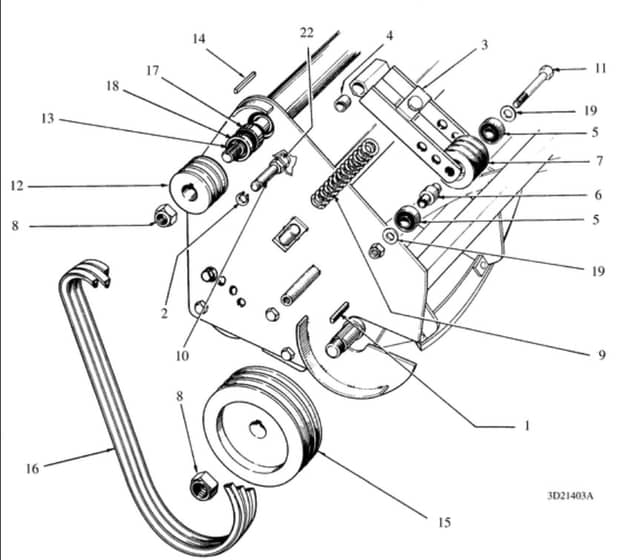

Transmission Assy - Parts Diagram

	Part No.	Details
1	HA1652 Available to backorder	Key.	£4.86 £4.05
2	HA3096 In stock	Circlip	£1.75 £1.46
3	HA3295 Available to backorder	Jockey Bracket	£85.50 £71.25
4	HA3296 Available to backorder	19 Nut	£1.74 £1.45
5	HA3297 Available to backorder	Bearing.	£14.14 £11.78
6	HA3298 Available to backorder	Jockey Spacer	£22.63 £18.86
7	HA3299 Available to backorder	Jockey Pulley 3 - Groove	£65.28 £54.40
8	HA3302 Available to backorder	Nut - 3/4" Unf Nyloc	£3.43 £2.86
9	HA3304 Available to backorder	Jockey Spring	£32.66 £27.22
10	HA3351 Available to backorder	Jockey Pivot Bolt	£21.58 £17.98
13	HA214024 Available to backorder	Countershaft	£160.08 £133.40
14	HAHY4299 Available to backorder	Key 3/16"1/4"1.3/16" Plain	£4.94 £4.12
15	HAHY4490 Available to backorder	Pulley Reel	£319.22 £266.02
19	HA09267 Available to backorder	Washer-Plain	£1.76 £1.47
20	HA09114 Available to backorder	3/8" Unf x 1" Setscrew	£1.74 £1.45
21	HA09216 Available to backorder	Nut-Hex. Ni	£1.74 £1.45
