Description

Hayter Ambassador Super 2 - 073

Serial No: 073-007037 - 073-099999

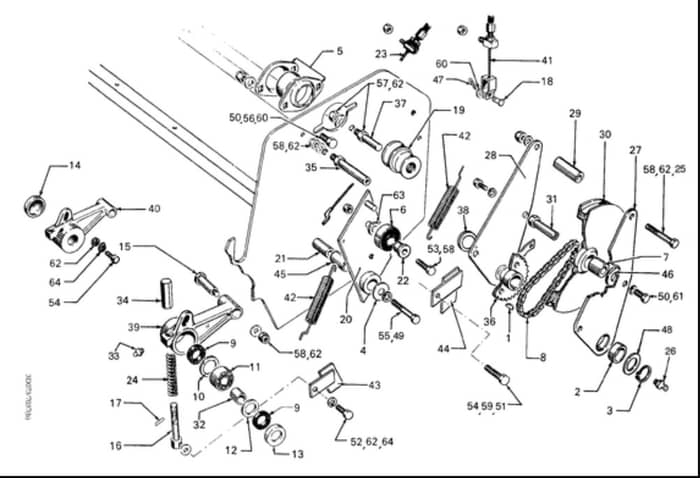

Transmission Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Key-Woodruff
Key-Woodruff
HA1662
In stock
Key-Woodruff
£1.50 £1.25

  7 Oilite Bush 3/8*1/2*1.1/4
Oilite Bush 3/8*1/2*1.1/4
HAHY3070
Available to backorder
Oilite Bush 3/8*1/2*1.1/4
£3.22 £2.68

  9 Seal Felt 1 7/16 x 7/8 x 3/16
Seal Felt 1 7/16 x 7/8 x 3/16
HA03078
Available to backorder
Seal Felt 1 7/16 x 7/8 x 3/16
£6.08 £5.07

  21 Sleeve Bearing Plate
Sleeve Bearing Plate
HA4692
Available to backorder
Sleeve Bearing Plate
£9.10 £7.58

  25 Bolt Unf 5/16 x 2.1/4 S Qual
Bolt Unf 5/16 x 2.1/4 S Qual
HA09091
Available to backorder
Bolt Unf 5/16 x 2.1/4 S Qual
£1.32 £1.10

  26 Nipple Bsp 1/8 Hyd Straight
Nipple Bsp 1/8 Hyd Straight
HA10-11-017
Available to backorder
Nipple Bsp 1/8 Hyd Straight
£2.12 £1.77

  29 Spacer Roller Dr Pulley Plate
Spacer Roller Dr Pulley Plate
HA4700
Available to backorder
Spacer Roller Dr Pulley Plate
£11.18 £9.32

  37 Pin Reel Drive Belt
Pin Reel Drive Belt
HA4710
Available to backorder
Pin Reel Drive Belt
£5.32 £4.43

  43 Closer Reel Slot
Closer Reel Slot
HA4726
Available to backorder
Closer Reel Slot
£44.54 £37.12

  45 Bush 5/8 x 3/4 x 1 Oilite
Bush 5/8 x 3/4 x 1 Oilite
HA4730
Available to backorder
Bush 5/8 x 3/4 x 1 Oilite
£2.28 £1.90

  47 1/2
1/2
HA09303
Available to backorder
1/2"x3/32" Split Pin
£1.68 £1.40

  48 Washer 1 x 1.7/8 x 15G Plain
Washer 1 x 1.7/8 x 15G Plain
HA09295
Available to backorder
Washer 1 x 1.7/8 x 15G Plain
£1.50 £1.25

  49 Washer-Spring
Washer-Spring
HA09273
In stock
Washer-Spring
£1.66 £1.38

  50 Setscrew Unf 1/4 x 1/2 S Qual
Setscrew Unf 1/4 x 1/2 S Qual
HA09036
Available to backorder
Setscrew Unf 1/4 x 1/2 S Qual
£1.40 £1.17

  51 Washer-Plain
Washer-Plain
HA09271
Available to backorder
Washer-Plain
£1.58 £1.32

  54 Setscrew Unf 5/16 x 5/8 S Qual
Setscrew Unf 5/16 x 5/8 S Qual
HA09068
Available to backorder
Setscrew Unf 5/16 x 5/8 S Qual
£1.58 £1.32

  55 Bolt
Bolt
HA09121
Available to backorder
Bolt
£1.68 £1.40

  56 Nut
Nut
HA09201
Available to backorder
Nut
£1.58 £1.32

  57 Nut
Nut
HA09207
Available to backorder
Nut
£1.58 £1.32

  59 Nut-Hex. Ni
Nut-Hex. Ni
HA09216
Available to backorder
Nut-Hex. Ni
£1.68 £1.40

  60 Washer-Plain
Washer-Plain
HA09261
Available to backorder
Washer-Plain
£1.58 £1.32

  62 Washer-Plain
Washer-Plain
HA09266
Available to backorder
Washer-Plain
£1.40 £1.17

  63 Washer-Plain
Washer-Plain
HA09267
Available to backorder
Washer-Plain
£1.56 £1.30

  64 Washer-Spring
Washer-Spring
HA03469
Available to backorder
Washer-Spring
£1.58 £1.32


Description

Hayter Ambassador Super 2 - 073

Serial No: 073-007037 - 073-099999

Transmission Assembly - Parts Diagram
