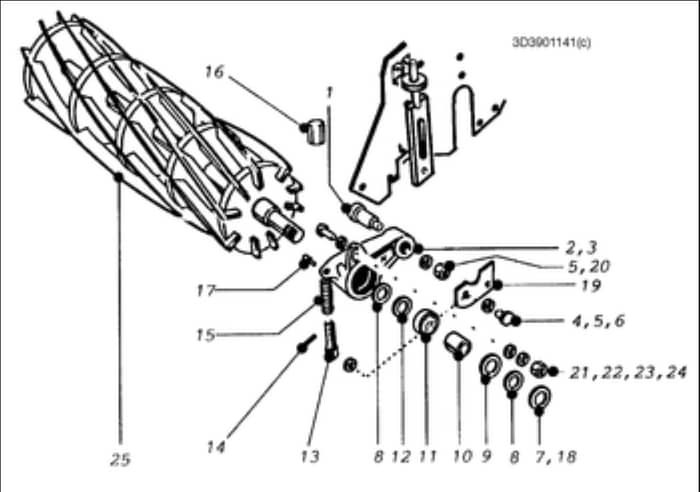

Hayter Ambassador 3 - 390T (390T001141 - 390T002000) - Reel Assembly

Description

Hayter Ambassador 3 - 390T

Serial No: 390T001141 - 390T002000

Reel Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	5		HA09266 Available to backorder	Washer-Plain		£1.40 £1.17
	8		HA03078 Available to backorder	Seal Felt 1 7/16 x 7/8 x 3/16		£6.08 £5.07
	21		HA09368 Available to backorder	Screw-HH		£1.58 £1.32
	22		HA09475 Available to backorder	Washer		£1.58 £1.32
	23		HA03469 Available to backorder	Washer-Spring		£1.58 £1.32
	24		HAZNH1H000U Available to backorder	Nut M8 Plain		£1.68 £1.40

Description

Hayter Ambassador 3 - 390T

Serial No: 390T001141 - 390T002000

Reel Assembly - Parts Diagram
