Hayter Ambassador 3 - 390L (390L001056 - 390L099999) - Upper Mainframe01

Name: Hayter Ambassador 3 - 390L (390L001056 - 390L099999) - Upper Mainframe01
SKU: ambassador 3 psei604 upper mainframe01-group
Price: 1.29 GBP
Availability: InStock

Part No. ambassador 3 psei604 upper mainframe01-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Ambassador 3 - 390L (390L001056 - 390L099999) - Upper Mainframe01

Description

Hayter Ambassador 3 - 390L

Serial No: 390L001056 - 390L099999

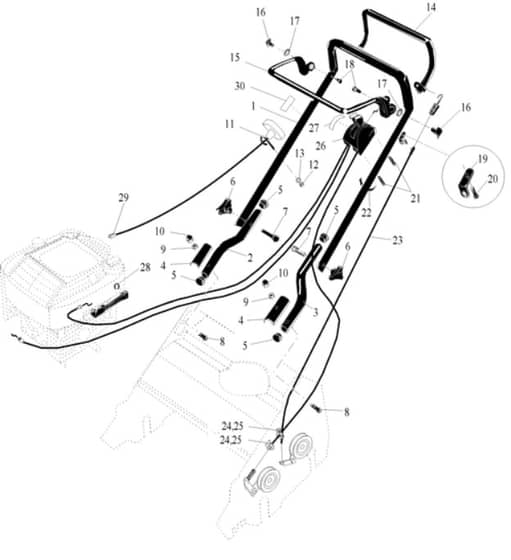

Upper Mainframe01 - Parts Diagram

	Part No.	Details
1	HA341029 Available to backorder	Upper Handlebar	£88.08 £73.40
4	HA340028 In stock	Plate-Clamp. Handlebar	£7.20 £6.00
6	HA226013 In stock	Triangular Handwheel	£7.68 £6.40
7	HAHY226024 In stock	Bolt-Handlebar	£1.81 £1.51
8	HA09379 Available to backorder	Bolt-Coach	£1.76 £1.47
9	HA09442 Available to backorder	Nut	£1.63 £1.36
10	HAHY234051 In stock	Cap-Nut	£1.76 £1.47
12	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
13	HA09472 Available to backorder	Washer-Plain	£1.55 £1.29
14	HA111-1921-03 In stock	Lever-Clutch	£46.68 £38.90
15	HA111-9662 In stock	Lever-Engine	£20.12 £16.77
16	HA340182 In stock	Pin-Pivot	£1.84 £1.53
18	HA09687 In stock	Screw	£1.84 £1.53
25	HA09546 In stock	Screw-Taptite	£1.85 £1.54
29	HAMU42189 Available to backorder	Rope Stop	£5.00 £4.17
