Hayter Ambassador 3 - 390 (390-001001 - 390-001040) - Mainframe Assembly

Description

Hayter Ambassador 3 - 390

Serial No: 390-001001 - 390-001040

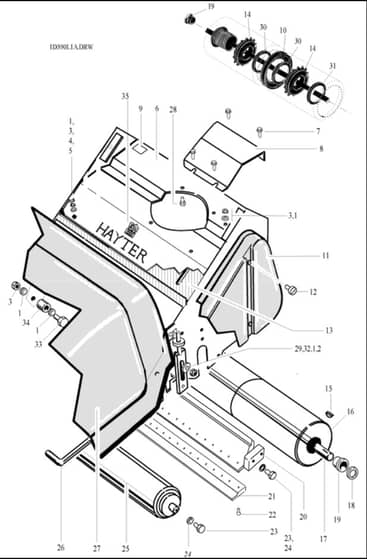

Mainframe Assembly - Parts Diagram

	Part No.	Details
1	HA09475 Available to backorder	Washer	£1.76 £1.47
2	HA03469 Available to backorder	Washer-Spring	£1.63 £1.36
3	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
5	HAHY234051 In stock	Cap-Nut	£1.76 £1.47
7	HA09546 In stock	Screw-Taptite	£1.85 £1.54
8	HA390057V Available to backorder	Drive Shaft Guard	£49.94 £41.62
9	HA111-0083 In stock	Decal - Caution	£2.60 £2.17
10	HA340168 In stock	Shroud-Freewheel	£13.08 £10.90
12	HA09374 Available to backorder	M6 Spring Washer	£1.55 £1.29
14	HA340150 In stock	Freewheel-Roller	£15.89 £13.24
19	HA340129 In stock	Bushing-Roller. Oilite	£10.93 £9.11
23	HA09391 Available to backorder	Screw-HH	£1.63 £1.36
24	HA09480 Available to backorder	Washer-Lock	£1.60 £1.33
29	HA09373 Available to backorder	Bolt-Coach	£1.66 £1.38
30	HA340157 In stock	Spacer Nylon	£2.36 £1.97
31	HA340163 In stock	Locknut	£28.92 £24.10
32	HAZNH1H000U Available to backorder	Nut M8 Plain	£1.74 £1.45
33	HA09631 Available to backorder	Bolt	£1.63 £1.36
35	HA410087 In stock	Decal Hayter Royal Warrant	£6.24 £5.20
