Hayter 21 Inch Heavy Duty - 455E (455E310000001 - 455E310999999) - Housing - Front Wheel Assembly

Name: Hayter 21 Inch Heavy Duty - 455E (455E310000001 - 455E310999999) - Housing - Front Wheel Assembly
SKU: 21 heavy duty 455E housing front wheel assembly-group
Price: 0.6 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter 21 Inch Heavy Duty - 455E (455E310000001 - 455E310999999) - Housing - Front Wheel Assembly

Description

Hayter 21 Inch Heavy Duty - 455E

Serial No: 455E310000001 - 455E310999999

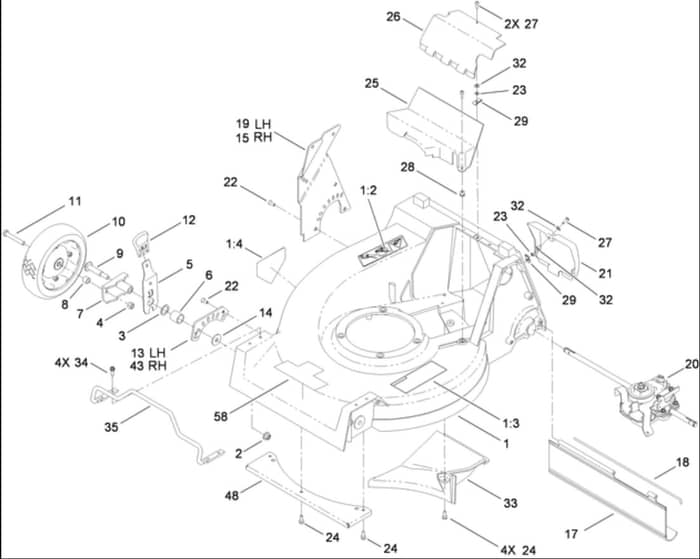

Housing - Front Wheel Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA115-3810 Available to backorder	Deck Asm	£456.62 £380.52
2	HA127-6852 In stock	Nut-Lock	£2.14 £1.78
3	HA115-0972 Available to backorder	Washer	£4.64 £3.87
4	HA32152-2 Available to backorder	Nut-Lock. Cone	£2.14 £1.78
5	HA119-2323 Available to backorder	Front Spring Arm Asm	£6.66 £5.55
6	HA75-5310 Available to backorder	Spacer-Bearing	£12.14 £10.12
7	HA61-8300 Available to backorder	Arm-Pivot. Front	£24.82 £20.68
8	HA52-2480 Available to backorder	Spacer-Wheel	£5.86 £4.88
9	HA114-3468 Available to backorder	Screw-Shoulder	£6.90 £5.75
10	HA115-3849 Available to backorder	Wheel And Tire Asm	£125.48 £104.57
11	HA323-12 Available to backorder	Screw-HH	£1.80 £1.50
12	HA110-0549 In stock	Knob-Hoc	£1.18 £0.98
12	HA110-4977 Available to backorder	Decal-Danger	£6.20 £5.17
13	HA115-4495 Available to backorder	Plate-Front Hoc. Lh	£25.92 £21.60
13	HA110-4978 Available to backorder	Decal-Danger	£12.90 £10.75
14	HA115-0956 Available to backorder	Washer	£2.58 £2.15
14	HA112-8760 Available to backorder	Decal-Danger	£13.16 £10.97
17	HA110-0509 Available to backorder	Sheild-Trailing	£59.52 £49.60
18	HA33-3202 Available to backorder	Rod-Shield	£6.54 £5.45
20	HA110-2100 Available to backorder	Gear Case Asm	£811.20 £676.00
21	HA107-4288 Available to backorder	Door-Access. Rear	£19.46 £16.22
22	HA32144-17 Available to backorder	Screw-HH	£4.82 £4.02
23	HA119-0350 Available to backorder	Nut-Push	£1.18 £0.98
24	HA32144-85 Available to backorder	Screw-Hwh	£1.90 £1.58
25	HA107-4297 Available to backorder	Cover-Belt. Lower	£19.46 £16.22
26	HA107-4298 Available to backorder	Cover-Belt. Upper	£19.46 £16.22
27	HA32144-32 Available to backorder	Screw	£2.74 £2.28
28	HA611380 Available to backorder	Nut-Clip	£2.64 £2.20
29	HA3290-171 Available to backorder	Nut-Type J	£4.82 £4.02
32	HA3256-14 Available to backorder	Washer-Flat	£0.72 £0.60
33	HA115-0973 Available to backorder	Baffle-Chute. Floor	£46.64 £38.87
34	HA49-2040 In stock	Screw-Hwhtf	£2.38 £1.98
35	HA110-4876 Available to backorder	Guard-Engine	£48.76 £40.63
43	HA115-4496 Available to backorder	Plate-Front Hoc. Rh	£25.92 £21.60
48	HA115-4476-03 Available to backorder	Shield-Front. Hi-Vac	£30.80 £25.67
58	HA410087 In stock	Decal	£5.66 £4.72
