Hayter 21 Inch Heavy Duty - 455E (455E290000001 - 455E290999999) - Handle Assembly

Description

Hayter 21 Inch Heavy Duty - 455E

Serial No: 455E290000001 - 455E290999999

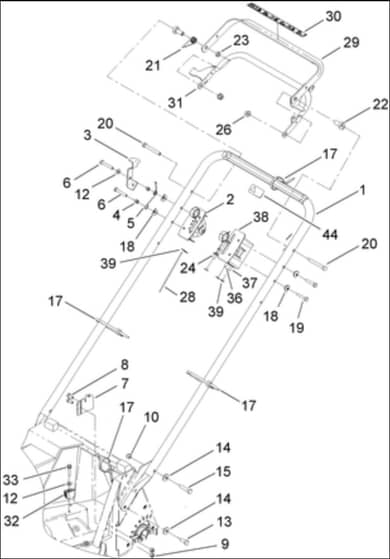

Handle Assembly - Parts Diagram

	Part No.	Details
1	HA119-7892-03 Available to backorder	Handle	£134.28 £111.90
2	HA116-0504 Available to backorder	Control-Shift	£141.60 £118.00
3	HA115-0999-01 Available to backorder	Latch-Lever. BBC	£35.06 £29.22
4	HA110-0542 Available to backorder	Spacer-Flange	£6.36 £5.30
5	HA115-0996 Available to backorder	Spring-Torsion. Latch	£4.34 £3.62
7	HA115-4453 Available to backorder	Anchor-Cable	£23.46 £19.55
8	HA321-3 Available to backorder	Screw-HH	£0.48 £0.40
9	HA3296-42 Available to backorder	Nut-Lock. Ni	£0.48 £0.40
10	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.59 £2.16
12	HA3256-1 Available to backorder	Washer-Flat	£0.64 £0.53
13	HA322-4 Available to backorder	Screw-HH	£0.60 £0.50
14	HA3290-456 Available to backorder	Washer-Belleville	£2.56 £2.13
15	HA322-7 Available to backorder	Screw-HH	£1.09 £0.91
17	HA3290-378 Available to backorder	Tie-Cable	£0.97 £0.81
18	HA115-0995 Available to backorder	Washer	£9.79 £8.16
19	HA321-13 Available to backorder	Screw-HH	£0.48 £0.40
20	HA322-12 Available to backorder	Screw-HH	£1.54 £1.28
21	HA115-0993 Available to backorder	Spring-Torsion	£4.34 £3.62
22	HA49-1631 Available to backorder	Spacer-Support	£5.66 £4.72
23	HA59-4310 Available to backorder	Spacer	£6.92 £5.77
24	HA107-4296 Available to backorder	Cable-BBC	£131.88 £109.90
26	HA3296-58 Available to backorder	Nut-Lock. Ni	£2.14 £1.78
28	HA107-4295 Available to backorder	Cable-Shift	£122.28 £101.90
29	HA115-4454-03 Available to backorder	Traction Bail Asm	£139.92 £116.60
30	HA110-2115 Available to backorder	Decal-Control	£12.62 £10.52
31	HA115-4452-03 Available to backorder	BBC Bail Asm	£107.72 £89.77
32	HA92-7729 Available to backorder	Anchor-Cable. Upper	£5.57 £4.64
33	HA32144-110 Available to backorder	Screw-Hwh	£1.18 £0.98
36	HA107-4294 Available to backorder	Cable-Traction	£127.08 £105.90
38	HA117-3544 Available to backorder	Control Head	£160.92 £134.10
39	HA32151-86 Available to backorder	E-Ring	£1.66 £1.38
44	HA98-4387 Available to backorder	Decal-Protection. Ear	£119.99 £99.99
