Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Gear Case Assembly No. 110-2100

Name: Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Gear Case Assembly No. 110-2100
SKU: 21 heavy duty 455E02 gear case assembly no 110 2100-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Gear Case Assembly No. 110-2100

Description

Hayter 21 Inch Heavy Duty - 455E

Serial No: 455E280000001 - 455E280999999

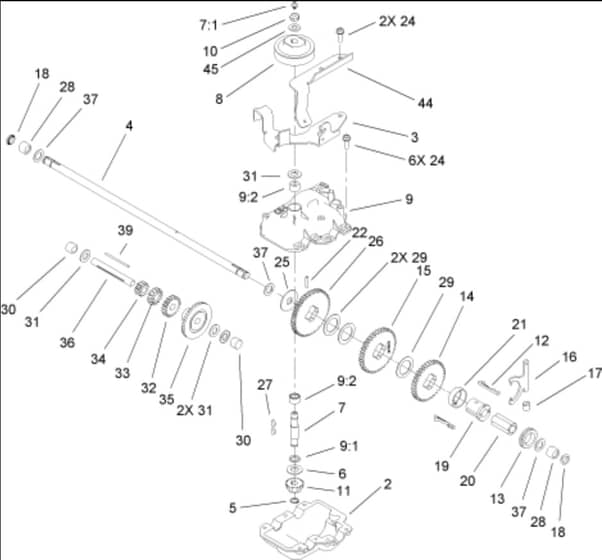

Gear Case Assembly No. 110-2100 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA119-7863 Available to backorder	Case-Gear. Lower	£74.00 £61.67
3	HA49-8461-03 Available to backorder	Bracket-Guide. Belt	£34.68 £28.90
4	HA74-1890 Available to backorder	Shaft-Output	£199.50 £166.25
5	HA32151-57 Available to backorder	Ring-Retaining	£3.08 £2.57
6	HA47-2910 Available to backorder	Washer-Thrust	£20.36 £16.97
7	HA13-5149 Available to backorder	Input Shaft Asm	£146.40 £122.00
8	HA39-6740 Available to backorder	Pulley	£48.28 £40.23
9	HA13-9739 Available to backorder	Upper Gearcase Asm	£123.88 £103.23
10	HA3296-5 Available to backorder	Nut-Hex	£3.24 £2.70
11	HA39-6660 Available to backorder	Pinion-Bevel	£33.70 £28.08
12	HA29-9330 Available to backorder	Key-Shift	£39.18 £32.65
13	HA29-9340 Available to backorder	Collar-Shift	£33.98 £28.32
15	HA29-9271 Available to backorder	Gear-42T	£133.54 £111.28
16	HA60-8870 Available to backorder	Yoke-Shift	£35.38 £29.48
17	HA29-9570 Available to backorder	Bushing-Yoke	£9.90 £8.25
18	HA47-6730 Available to backorder	Seal-Oil	£20.90 £17.42
19	HA55-8010 Available to backorder	Sleeve-Gear	£28.94 £24.12
20	HA39-6720 Available to backorder	Sleeve	£13.66 £11.38
21	HA55-8020 Available to backorder	Retainer-Key	£7.42 £6.18
22	HA3285-19 Available to backorder	Pin-Groove	£2.14 £1.78
24	HA49-2040 In stock	Screw-Hwhtf	£2.38 £1.98
25	HA29-9690 Available to backorder	Washer	£10.54 £8.78
26	HA46-3560 Available to backorder	Gear	£66.92 £55.77
27	HA3257-1 Available to backorder	Key-Woodruff	£1.70 £1.42
28	HA117-3500 Available to backorder	Bearing-Roller	£5.62 £4.68
29	HA36-4770 Available to backorder	Washer	£4.56 £3.80
30	HA252-103 Available to backorder	Bearing-Needle. Closed	£21.22 £17.68
31	HA36-4792 Available to backorder	Washer-Thrust	£1.06 £0.88
32	HA39-6650 Available to backorder	Gear-18T	£11.40 £9.50
33	HA46-3550 Available to backorder	Gear-14T	£18.90 £15.75
34	HA46-3540 Available to backorder	Gear-12T	£11.26 £9.38
35	HA74-1760 Available to backorder	Gear-Bevel	£33.68 £28.07
36	HA53-7950 Available to backorder	Shaft-Intermediate	£82.04 £68.37
37	HA36-4780 In stock	Washer-Plain	£10.34 £8.62
39	HA39-7842 Available to backorder	Key	£2.62 £2.18
44	HA108-2648-03 Available to backorder	Arm-Actuating. Gear Case	£29.24 £24.37
45	HA3256-45 Available to backorder	Washer-Flat	£0.48 £0.40
71	HA302-63 Available to backorder	Fitting-Grease. Zerk	£2.64 £2.20
91	HA47-7260 Available to backorder	Seal	£13.82 £11.52
92	HA47-7270 Available to backorder	Bearing-Needle	£35.88 £29.90
