Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Engine - Tank Assembly

Description

Hayter 21 Inch Heavy Duty - 455E

Serial No: 455E280000001 - 455E280999999

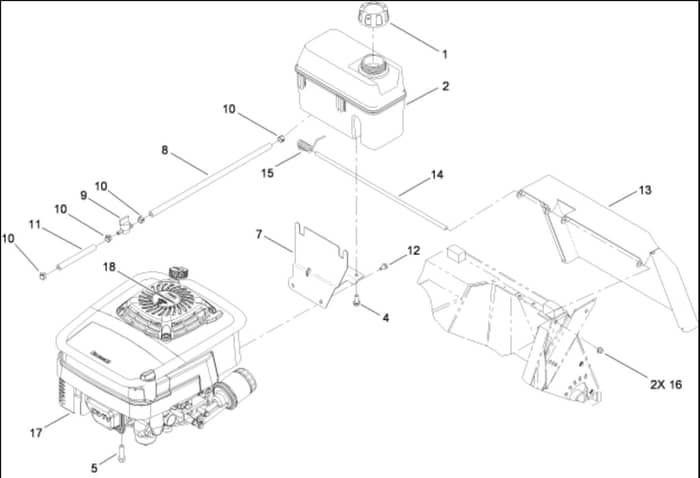

Engine - Tank Assembly - Parts Diagram

	Part No.	Details
1	HA93-7198 In stock	Cap-Gas	£19.24 £16.03
2	HA117-3510 Available to backorder	Tank-Fuel	£112.44 £93.70
4	HA46-8091 Available to backorder	Screw-Hwh	£4.44 £3.70
5	HA95-1727 In stock	Screw-Taptite	£2.21 £1.84
7	HA115-0954-03 Available to backorder	Mount-Tank	£49.51 £41.26
8	HA109-0296 Available to backorder	Hose-Fuel	£12.35 £10.29
9	HA1-603770 Available to backorder	Valve-Fuel	£9.64 £8.03
10	HA2412-98 Available to backorder	Clamp-Hose	£1.72 £1.43
11	HA109-0650 Available to backorder	Hose-Fuel	£9.02 £7.52
12	HA104-2628 Available to backorder	Screw	£1.50 £1.25
13	HA114-3445-03 Available to backorder	Door-Discharge. Rear	£139.92 £116.60
14	HA107-4286 Available to backorder	Rod-Door	£12.90 £10.75
15	HA110-5005 Available to backorder	Spring-Torsion. Door	£8.68 £7.23
16	HA32112-1 Available to backorder	Pushnut-Cap. Washer	£5.16 £4.30
