Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Blade - Brake - Clutch Assembly

Name: Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Blade - Brake - Clutch Assembly
SKU: 21 heavy duty 455E02 blade brake clutch assembly-group
Price: 0.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter 21 Inch Heavy Duty - 455E (455E280000001 - 455E280999999) - Blade - Brake - Clutch Assembly

Description

Hayter 21 Inch Heavy Duty - 455E

Serial No: 455E280000001 - 455E280999999

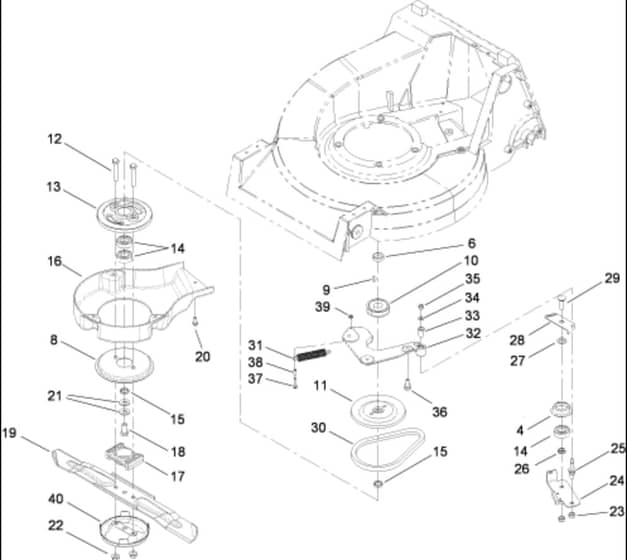

Blade - Brake - Clutch Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	HA138-3217 In stock	Retainer-Belt	£3.58 £2.98
6	HA110-2142 Available to backorder	Spacer-Pulley	£19.74 £16.45
8	HA138-3225 Available to backorder	Disc	£10.34 £8.62
9	HA3257-17 Available to backorder	Key-Woodruff	£4.64 £3.87
10	HA56-6180 Available to backorder	Pulley-Driver	£55.02 £45.85
11	HA107-4277-03 Available to backorder	Pulley-Driver. Upper	£166.28 £138.57
12	HA104-5936 Available to backorder	Screw-HH	£5.00 £4.17
13	HA126-8108 Available to backorder	Drum	£63.40 £52.83
14	HA38-7820 In stock	Bearing-Ball	£16.74 £13.95
15	HA107-4293 Available to backorder	Spacer-Plate. BBC	£14.34 £11.95
16	HA110-0508 Available to backorder	Shield-BBC	£57.90 £48.25
17	HA107-4275 Available to backorder	Spacer-Blade	£34.48 £28.73
18	HA3212-4 Available to backorder	Screw-HH	£4.28 £3.57
19	HA91-2256-03 Available to backorder	Blade-21 Inch	£41.04 £34.20
20	HA32144-85 Available to backorder	Screw-Hwh	£1.90 £1.58
21	HA1-603610 Available to backorder	Washer-Spring	£5.00 £4.17
22	HA127-6852 In stock	Nut-Lock	£2.14 £1.78
23	HA603773 Available to backorder	Locknut	£2.50 £2.08
24	HA125-1063 In stock	Brake Arm Asm	£26.30 £21.92
25	HA107-0759 Available to backorder	Bolt-Shoulder	£11.94 £9.95
26	HA107-0758 Available to backorder	Spacer-Bearing	£3.46 £2.88
27	HA605256 Available to backorder	Spacer	£2.82 £2.35
28	HA138-3222 Available to backorder	Plate-Guide	£5.32 £4.43
30	HA110-1790 In stock	Belt	£29.52 £24.60
31	HA108-3792 In stock	Spring-Tension. Brake	£13.16 £10.97
32	HA116-3572 Available to backorder	Plate-Mounting. BBC	£56.22 £46.85
33	HA107-0797 Available to backorder	Bushing	£5.74 £4.78
34	HA3256-16 Available to backorder	Washer-Flat	£0.72 £0.60
35	HA3296-42 Available to backorder	Nut-Lock. Ni	£0.44 £0.37
36	HA33104-020 Available to backorder	Screw-HHf	£3.24 £2.70
37	HA32144-9 Available to backorder	Screw-Tap	£4.78 £3.98
38	HA107-4292 Available to backorder	Spacer-BBC	£8.84 £7.37
39	HA3296-27 Available to backorder	Nut-Lock. Ni	£0.50 £0.42
40	HA80-2770 Available to backorder	Cup-Scalp. Anti	£24.12 £20.10
