Hayter 18-42 Ride On Tractor - HY1842 - Powered Grass Collector `94-`95

Name: Hayter 18-42 Ride On Tractor - HY1842 - Powered Grass Collector `94-`95
SKU: 18 42 ride on tractor psei1110 powered grass collector 94 95-gro
Price: 0.33 GBP
Availability: InStock

Part No. 18 42 ride on tractor psei1110 powered grass collector 94 95-gro

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter 18-42 Ride On Tractor - HY1842 - Powered Grass Collector `94-`95

Description

Hayter 18-42 Ride On Tractor - HY1842

Serial No: HY1842 - HY1842

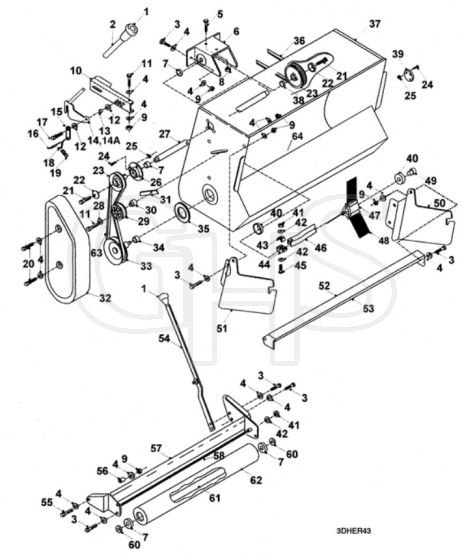

Powered Grass Collector `94-`95 - Parts Diagram

	Part No.	Details
2	WE40403100 Available to backorder	Sweeper Lever Locking Tool	£3.02 £2.52
5	WE01902300 Available to backorder	Bolt	£0.40 £0.33
12	8418 In stock	Washer Nylon	£0.48 £0.40
17	2183 In stock	Bolt	£0.58 £0.48
21	2189 Available to backorder	Bolt	£0.94 £0.78
28	WE31351100 Available to backorder	Sweeper Jockey Cap Boss	£44.03 £36.69
29	WE20811500 In stock	Jockey Pulley	£24.72 £20.60
31	WE30121900 Available to backorder	Belt Tension Plate	£4.04 £3.37
55	HA09345 Available to backorder	Bolt	£1.55 £1.29
56	WE31350600 Available to backorder	Roller Plate Bush	£4.49 £3.74
