Hayter 155N Ride On Tractor - 155N - Rear Body Assy

Name: Hayter 155N Ride On Tractor - 155N - Rear Body Assy
SKU: 155n ride on tractor psei1003 rear body assy-group
Price: 0.3 GBP
Availability: InStock

Part No. 155n ride on tractor psei1003 rear body assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter 155N Ride On Tractor - 155N - Rear Body Assy

Description

Hayter 155N Ride On Tractor - 155N

Serial No: 155N001001 - 155N099999

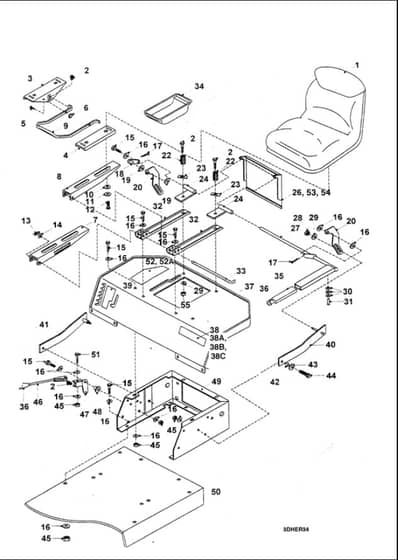

Rear Body Assy - Parts Diagram

	Part No.	Details
4	WE30118000 Available to backorder	Seat Plate Adjuster L/H	£8.54 £7.12
5	WE012885800 Available to backorder	Rivet	£0.36 £0.30
6	WE08868700 Available to backorder	Starlock Washer	£0.48 £0.40
7	WE30117700 Available to backorder	Adjustable Seat Channel R/H	£16.78 £13.98
8	WE30117800 Available to backorder	Adjustable Seat Channel L/H	£16.78 £13.98
9	WE30203100 Available to backorder	Seat Handle	£13.63 £11.36
12	HA09111 Available to backorder	Bolt	£1.55 £1.29
21	2065 In stock	Bolt	£0.84 £0.70
26	WE178967100 Available to backorder	Pto Flap	£57.16 £47.63
32	WE30114900 Available to backorder	Seat Channel	£14.48 £12.07
40	WE32725900 Available to backorder	Sweeper Link Arm (L/H)	£132.24 £110.20
48	WE31305100 Available to backorder	Pto Engage Plate Boss	£59.75 £49.79
50	WE32702400 Available to backorder	Chassis Assembly	£288.24 £240.20
51	WE01820700 Available to backorder	Bolt	£0.54 £0.45
53	WE35891200 Available to backorder	Decal Sweeper Belt (Not Illustrated)	£5.89 £4.91
54	WE35809500 Available to backorder	Decal Pto Danger (Not Illustrated)	£32.11 £26.76
