Hayter 14-38 Ride On Tractor - HY1438 - Tuff Torq.Hyd.Trans

Description

Hayter 14-38 Ride On Tractor - HY1438

Serial No: HY1438 - HY1438

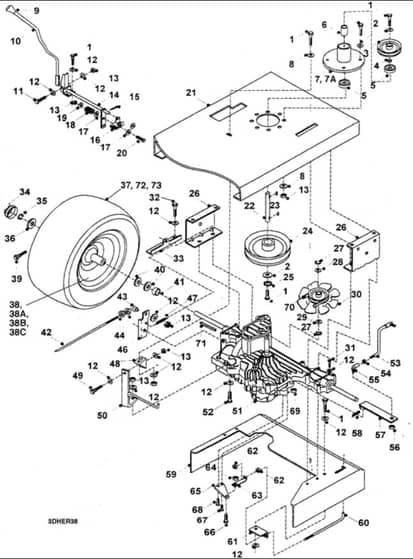

Tuff Torq.Hyd.Trans - Parts Diagram

	Part No.	Details
6	WE31334800 Available to backorder	P.T.O. Centre Spacer	£24.62 £20.52
7	WE40835800 Available to backorder	P.T.O. Bearing Housing	£279.96 £233.30
14	WE32724300 Available to backorder	Gear Change Cross Over Assembly	£94.68 £78.90
24	WE20870702 Available to backorder	Pulley	£86.52 £72.10
31	2029 In stock	Bolt	£0.91 £0.76
38	HA0201086 In stock	Washer Shakeproof	£1.84 £1.53
39	WE14889200 Available to backorder	Valve Assembly	£11.30 £9.42
41	WE31324900 Available to backorder	Wheel Spacer	£40.26 £33.55
43	WE18325000 Available to backorder	Brake Rod Trunnion	£7.78 £6.48
47	WE25813801 Available to backorder	Safety Switch Spring	£10.31 £8.59
57	WE31206000 Available to backorder	Speed Control Arm	£24.55 £20.46
58	WE05916800 Available to backorder	Roll Pin	£1.94 £1.62
60	WE18322800 Available to backorder	Dump Valve Rod	£9.74 £8.12
61	WE30138700 Available to backorder	Dump Rod Bracket	£2.16 £1.80
62	2030 In stock	Nut Nyloc	£0.48 £0.40
68	WE01848700 Available to backorder	Bolt	£1.69 £1.41
69	WE04917100 Available to backorder	Nut Nyloc	£0.48 £0.40
