Hayter 14-38 Ride On Tractor - HY1438 - Pto Transmission Assy

Description

Hayter 14-38 Ride On Tractor - HY1438

Serial No: HY1438 - HY1438

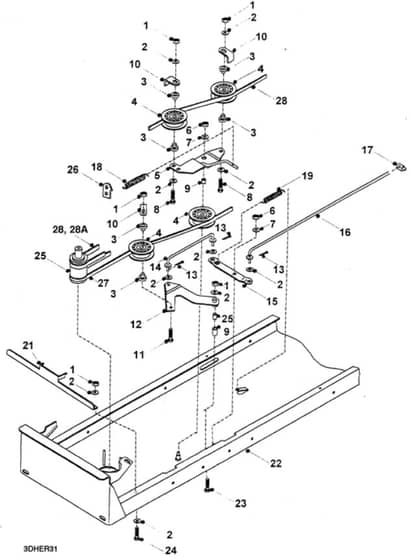

Pto Transmission Assy - Parts Diagram

	Part No.	Details
3	HAC18-8316-00 Available to backorder	Jockey Pulley Spacer	£45.41 £37.84
4	WE20811500 In stock	Jockey Pulley	£24.72 £20.60
5	WE32706402 Available to backorder	Jockey Pulley Plate Assembly	£67.56 £56.30
11	WE01820700 Available to backorder	Bolt	£0.54 £0.45
13	2197 In stock	Split	£0.48 £0.40
15	WE27103800 Available to backorder	Snake Plate	£4.84 £4.03
16	WE31805700 Available to backorder	P.T.O. Engage Rod	£23.00 £19.17
17	WE18806100 Available to backorder	P.T.O. Engage Rod Trunnion	£7.70 £6.42
20	WE31302500 Available to backorder	Spacer	£3.50 £2.92
22	WE32702400 Available to backorder	Chassis Assembly	£288.24 £240.20
26	WE30118300 Available to backorder	Brake Spring Plate	£7.90 £6.58
28	WE2281110A In stock	Belt Manuel Transaxles Only	£60.13 £50.11
