Gyro 900e - 2023 - 2F7064705/ST1 - Stiga Zero Turn Mower Mower Deck Diagram

Description

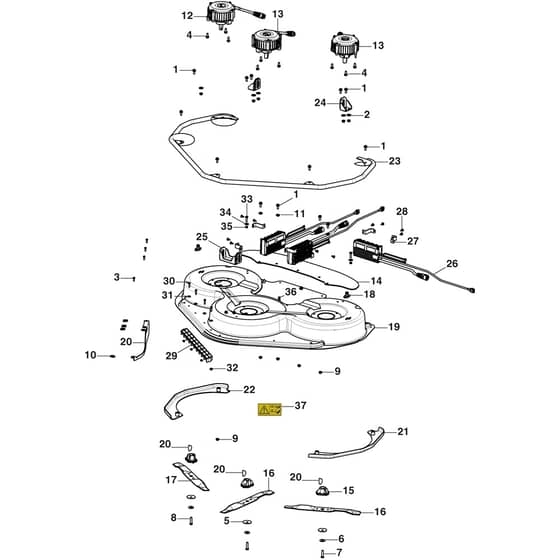

Stiga Gyro 900e Parts Diagram

Product Name - Gyro 900e

Model Year - 2023

Model Type - AM125 LI 48 V3

Art.N - 2F7064705/ST1

Engine Model -

	Part No.	Details
1	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
2	MO112523060/0 In stock	Washer	£1.55 £1.29
3	MO112791213/1 In stock	Screw	£1.55 £1.29
5	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
6	MO112523080/0 In stock	Washer	£1.55 £1.29
7	MO112735694/0 In stock	Screw	£1.97 £1.64
8	MO112735695/1 In stock	Screw	£3.79 £3.16
9	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
10	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
11	MO1134-4185-01 Available to backorder	Flange Washer	£6.46 £5.38
12	MO118563761/1 Available to backorder	Right Blade Engine	£662.69 £552.24
12	MO118563761/0 Available to backorder	Right Blade Engine Replacing part 118563761.1	£662.69 £552.24
13	MO118563762/0 Available to backorder	Left Blade Engine	£662.69 £552.24
13	MO118563762/1 Available to backorder	Left Blade Engine Replacing part 118563762.1	£662.69 £552.24
14	MO337600058/0 Available to backorder	Protection	£46.10 £38.42
15	MO125463200/0 In stock	Blade Holder	£9.07 £7.56
16	MO182004382/0 Available to backorder	Blade. Left	£29.06 £24.22
17	MO182004381/0 Available to backorder	Blade. Right	£29.06 £24.22
18	MO325033086/0 In stock	Water Hose Connection	£1.55 £1.29
19	MO387561541/0 Available to backorder	Cutting Deck	£466.26 £388.55
20	MO337140005/0 Available to backorder	Deflector	£56.56 £47.13
21	MO1134-7520-01 Available to backorder	Wear Protection Assy-Lh Replacing part 387603353.0	£131.60 £109.67
21	MO387603353/0 Available to backorder	Wear Protection Assy-Lh	£131.60 £109.67
22	MO1134-7520-02 Available to backorder	Wear Protection Assy-Rh Replacing part 387603351.0	£131.60 £109.67
22	MO387603351/0 Available to backorder	Wear Protection Assy-Rh	£131.60 £109.67
23	MO387869285/0 Available to backorder	Protection Frame	£218.46 £182.05
24	MO387773625/0 Available to backorder	Clamp	£29.30 £24.42
25	MO387773627/0 Available to backorder	Clamp	£42.64 £35.53
26	MO118361076/0 Available to backorder	Controller	£241.49 £201.24
27	MO337546737/0 Available to backorder	Support	£11.81 £9.84
28	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
29	MO325600157/0 Available to backorder	Blade Guard	£8.46 £7.05
30	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
31	MO112523040/0 In stock	Washer	£1.55 £1.29
32	MO112154510/0 In stock	Nut	£1.55 £1.29
33	MO112727795/0 Available to backorder	Screw	£1.33 £1.11
34	MO112523020/0 In stock	Washer	£1.55 £1.29
35	MO112154330/0 In stock	Nut	£1.55 £1.29
36	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
37	MO114356699/1 Available to backorder	Cutting Deck Danger Label	£1.63 £1.36
