Gyro 700e - 2022-2025 - 2F7063605/ST1 - Stiga Zero Turn Mower Seat Diagram

Description

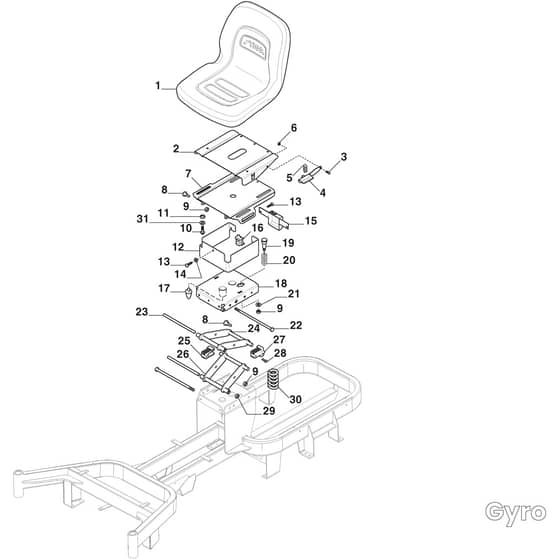

Stiga Gyro 700e Parts Diagram

Product Name - Gyro 700e

Model Year - 2022-2025

Model Type - AM108 LI 48 V2

Art.N - 2F7063605/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO137722602/1 Available to backorder	Seat	£422.32 £351.93
2	MO1134-6090-01 Available to backorder	Slide Plate-Upper	£98.54 £82.12
3	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
4	MO337315025/0 Available to backorder	Seat Adjustment Lever	£28.51 £23.76
5	MO1134-3262-01 Available to backorder	Spring	£8.45 £7.04
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO387773513/0 Available to backorder	Bracket	£94.32 £78.60
8	MO1134-0240-00 In stock	Screw	£8.80 £7.33
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO112793301/0 In stock	Screw	£1.55 £1.29
11	MO1134-6078-01 Available to backorder	Flange Washer	£5.48 £4.57
12	MO387605033/0 Available to backorder	Protection	£64.33 £53.61
13	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
14	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
15	MO387602511/0 Available to backorder	Protection	£35.20 £29.33
16	MO1134-3156-01 Available to backorder	Switch	£43.64 £36.37
17	MO1137-0064-01 Available to backorder	Rubber Cone	£40.54 £33.78
18	MO387773509/2 Available to backorder	Bracket	£93.61 £78.01
19	MO137510338/0 Available to backorder	Push Pin	£5.20 £4.33
20	MO137430122/0 Available to backorder	Spring	£3.88 £3.23
21	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
23	MO1137-0263-01 Available to backorder	Shaft	£9.28 £7.73
24	MO1137-0261-01 Available to backorder	Link Assy B	£64.75 £53.96
25	MO1137-0033-02 Available to backorder	Block	£2.95 £2.46
26	MO1137-0260-01 Available to backorder	Link Assy A	£64.48 £53.73
27	MO1137-0033-01 Available to backorder	Block	£2.95 £2.46
28	MO112728697/0 In stock	Screw	£1.55 £1.29
29	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
30	MO1134-4160-01 Available to backorder	Spring	£24.64 £20.53
31	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
