Gyro 700e - 2022-2025 - 2F7063605/ST1 - Stiga Zero Turn Mower El.Equipment Diagram

Name: Gyro 700e - 2022-2025 - 2F7063605/ST1 - Stiga Zero Turn Mower El.Equipment Diagram
SKU: gyro_700e_2f7063605_st1_el_equipment-group
Price: 1.29 GBP
Availability: InStock

Part No. gyro_700e_2f7063605_st1_el_equipment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Gyro 700e - 2022-2025 - 2F7063605/ST1 - Stiga Zero Turn Mower El.Equipment Diagram

Description

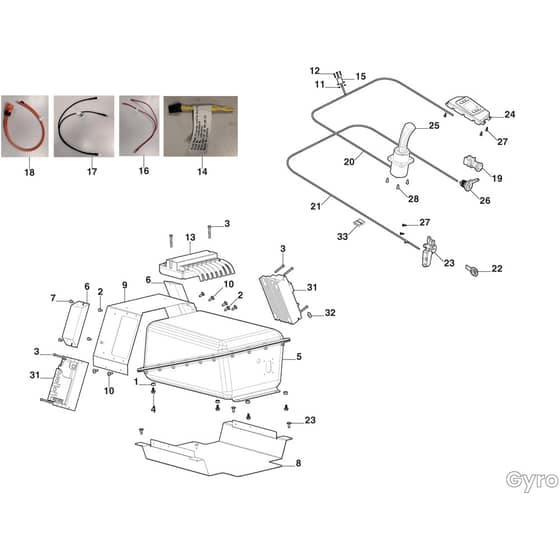

Stiga Gyro 700e Parts Diagram

Product Name - Gyro 700e

Model Year - 2022-2025

Model Type - AM108 LI 48 V2

Art.N - 2F7063605/ST1

Engine Model -

	Part No.	Details
1	MO112155000/0 In stock	Nut	£1.55 £1.29
3	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
4	MO112792611/0 In stock	Screw	£1.55 £1.29
6	MO118361058/0 Available to backorder	Battery Resistance	£76.34 £63.62
7	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
8	MO387547075/0 Available to backorder	Battery Fixing Plate	£147.79 £123.16
9	MO387785279/0 Available to backorder	Component Support	£57.86 £48.22
10	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
12	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
13	MO118361070/0 Available to backorder	Vms Controller	£611.71 £509.76
14	MO118361059/0 Available to backorder	Configuration Key	£10.40 £8.67
15	MO125065047/1 Available to backorder	Charger Connection Cable	£84.66 £70.55
16	MO137065327/1 Available to backorder	Power Cable. Positive Pole	£35.71 £29.76
17	MO137065328/1 Available to backorder	Power Cable. Negative Pole	£35.50 £29.58
18	MO137065329/0 Available to backorder	Power Cable. Main	£224.93 £187.44
19	MO187040332/0 Available to backorder	Harness	£116.14 £96.78
20	MO187040337/0 Available to backorder	Removable Part Wiring	£73.20 £61.00
21	MO187040338/0 Available to backorder	Main Wiring	£202.72 £168.93
22	MO118210032/0 Available to backorder	Key Set	£7.02 £5.85
23	MO387149307/0 Available to backorder	Key Block	£54.19 £45.16
24	MO387722403/1 Available to backorder	Electronic Board	£158.45 £132.04
25	MO118425001/0 Available to backorder	Forward Control Lever (Joystick)	£774.26 £645.22
26	MO118450201/1 Available to backorder	Usb Charger Inlet	£58.58 £48.82
27	MO112728697/0 In stock	Screw	£1.55 £1.29
28	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
31	MO118361054/2 Available to backorder	Controller	£484.27 £403.56
32	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
33	MO118361065/0 Available to backorder	Round Cable Snap	£34.82 £29.02
