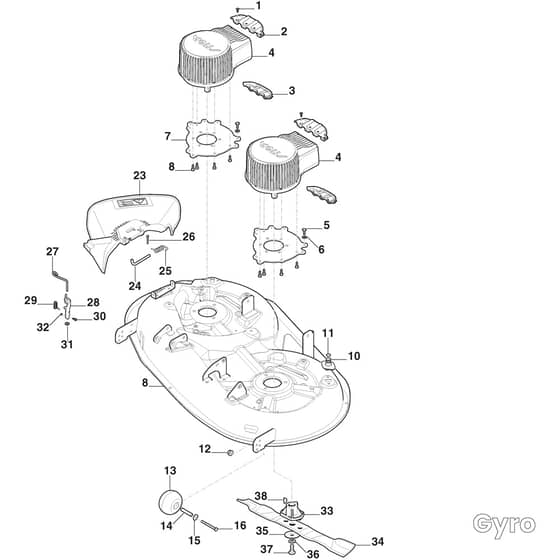

Gyro 500e - 2022-2025 - 2F7062505/ST1 - Stiga Zero Turn Mower Mower Deck Diagram

Description

Stiga Gyro 500e Parts Diagram

Product Name - Gyro 500e

Model Year - 2022-2025

Model Type - AM98 LI 48 V1

Art.N - 2F7062505/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728706/0 In stock	Screw	£1.55 £1.29
2	MO325600144/1 Available to backorder	Upper Wires Protection	£4.78 £3.98
3	MO325600145/1 Available to backorder	Lower Wires Protection	£4.78 £3.98
4	MO118563746/2 Available to backorder	Left Blade Engine	£1,623.18 £1,352.65
6	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
7	MO382207223/0 Available to backorder	Engine Flange	£46.46 £38.72
8	MO382564233/0 Available to backorder	Cutting Plate Assy	£394.18 £328.48
8	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
11	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
12	MO112293201/0 In stock	Nut	£1.69 £1.41
13	MO182700001/0 In stock	Levelling Small Wheel	£5.48 £4.57
14	MO125510072/1 In stock	Spacer	£1.82 £1.52
15	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
16	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
23	MO325600077/3 In stock	Ejection Guard	£18.43 £15.36
24	MO125510073/0 Available to backorder	Fulcrum Pin	£7.67 £6.39
25	MO125430242/1 In stock	Spring	£3.38 £2.82
26	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
27	MO125318355/0 Available to backorder	Fulcrum Pin	£6.05 £5.04
28	MO325774719/0 Available to backorder	Fulcrum Clamp	£6.20 £5.17
29	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
30	MO112815202/0 Available to backorder	Screw	£1.37 £1.14
31	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
32	MO112154510/0 In stock	Nut	£1.55 £1.29
33	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
34	MO182004346/0 Available to backorder	Left Blade. Mulching	£22.08 £18.40
35	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
36	MO112523080/0 In stock	Washer	£1.55 £1.29
37	MO112735694/0 In stock	Screw	£1.97 £1.64
38	MO112139100/0 In stock	Key	£1.55 £1.29
