GV 53 TBX ALLROAD PLUS 4 - Oleo-Mac Rotary Mower Complete illustrated parts list Diagram

Description

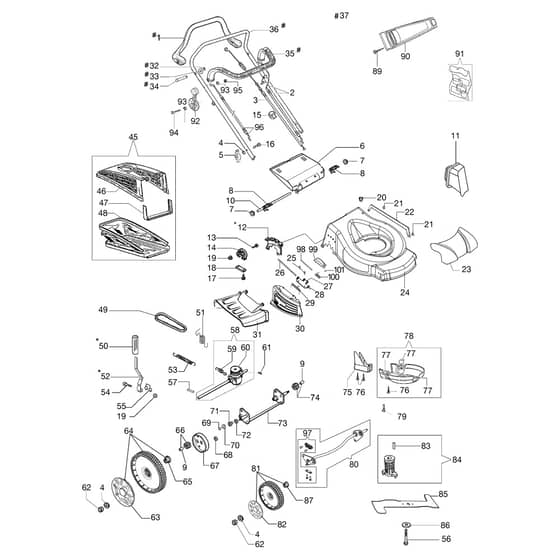

Oleo-Mac GV 53 TBX ALLROAD PLUS 4 Parts Diagram

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£21.00 £17.50
2	EF66060108R Available to backorder	Engine Break Cable B&S 675EXI. Lunghezza.Lenght. 1183 mm	£11.40 £9.50
2	EF66030276R In stock	Engine Break Cable B&S 625. Lunghezza.Lenght. 1382 mm	£17.78 £14.82
3	EF66060058CR In stock	Traction Cable	£30.20 £25.17
4	EF3916008R Available to backorder	Washer	£1.98 £1.65
5	EF66070317R Available to backorder	Tightening Handle	£9.96 £8.30
6	EF66110014R Available to backorder	Shutter	£25.68 £21.40
8	EF66110610 Available to backorder	Kit Spring	£8.52 £7.10
9	EF66070435R Available to backorder	Bushing SN 6195164910	£3.36 £2.80
10	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
12	EF66070291R Available to backorder	Sector	£15.24 £12.70
13	EF3801022R Available to backorder	Screw	£0.48 £0.40
14	EF66110781 Available to backorder	Support	£9.00 £7.50
15	EF66060231 Available to backorder	Band	£3.14 £2.62
16	EF3910015R Available to backorder	Screw	£2.00 £1.67
17	EF3960031R Available to backorder	Screw	£1.08 £0.90
18	EF66030039 Available to backorder	Plate	£3.01 £2.51
20	EF66030038 Available to backorder	Grommet	£1.08 £0.90
21	EF3045035R Available to backorder	Retainer Washer	£3.01 £2.51
22	EF66070229 Available to backorder	Rod	£21.72 £18.10
25	EF3032018R Available to backorder	Rivet	£0.43 £0.36
26	EF66071060R Available to backorder	Pin	£4.20 £3.50
27	EF66070804R Available to backorder	Support 43344	£12.24 £10.20
28	EF3045034R In stock	Retainer Washer	£1.13 £0.94
29	EF66070493R Available to backorder	Spring	£12.60 £10.50
30	EF66070478AR Available to backorder	Shutter	£27.96 £23.30
31	EF66070479R In stock	Deflector	£37.32 £31.10
32	EF3024006 Available to backorder	Snap Ring	£1.08 £0.90
33	EF3064037 Available to backorder	Washer	£1.08 £0.90
34	EF66060381BR Available to backorder	Pin	£3.01 £2.51
35	EF66060316AR In stock	Brake Lever	£25.68 £21.40
36	EF66060421BR Available to backorder	Handlebar SN 6195164910	£61.56 £51.30
37	EF66060425R Available to backorder	Handle Kit	£100.68 £83.90
45	EF66070378A Available to backorder	Grassbag Kit	£93.84 £78.20
46	EF66070132R Available to backorder	Frame	£28.68 £23.90
47	EF66070133R Available to backorder	Support	£9.00 £7.50
48	EF66070330R Available to backorder	Grassbag	£82.32 £68.60
49	EF3047025R Available to backorder	Belt	£16.92 £14.10

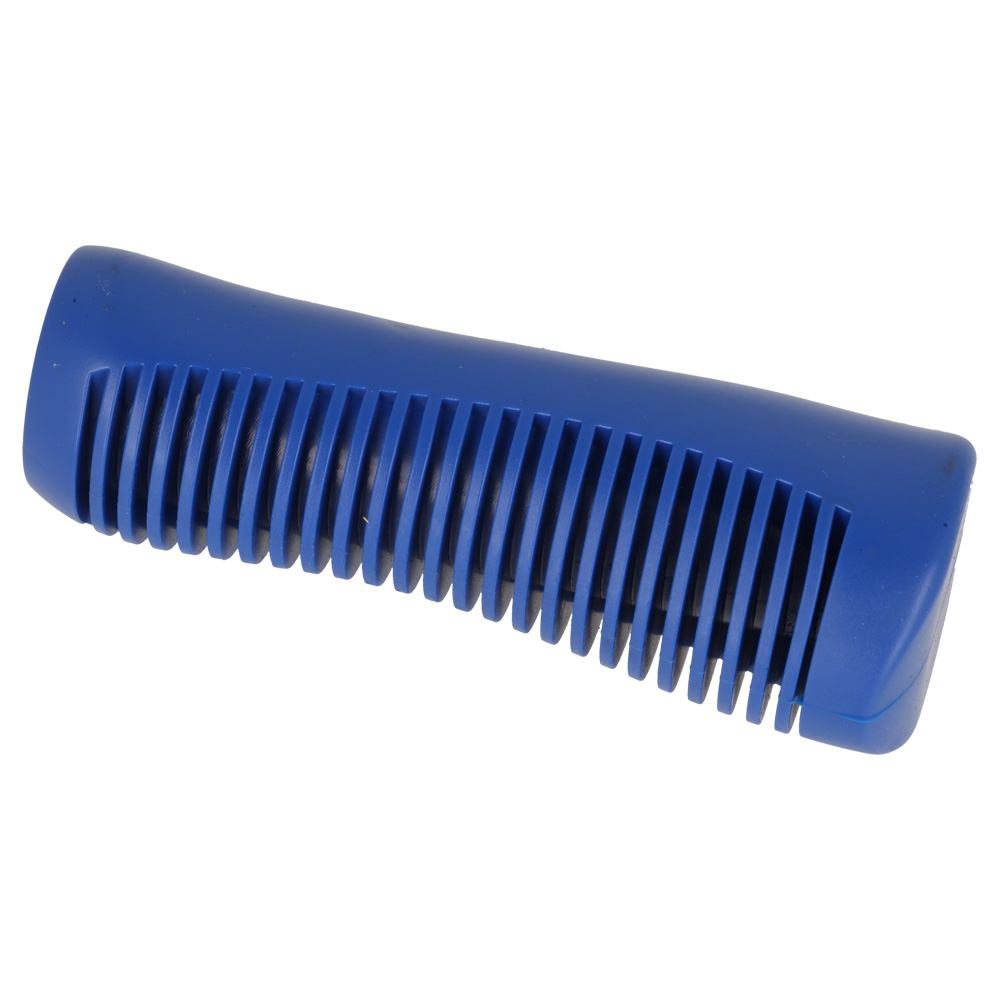

50	EF66070954R In stock	Handle	£9.96 £8.30
52	EF66070286CR In stock	Lever	£19.76 £16.47
53	EF66070036R Available to backorder	Spring	£5.64 £4.70
54	EF3906164R Available to backorder	Screw	£2.80 £2.33
55	EF8203374R Available to backorder	Spring	£10.44 £8.70
56	EF3906150R Available to backorder	Screw	£5.64 £4.70
57	EF66060010R Available to backorder	Roller	£1.08 £0.90
58	EF66070017ER Available to backorder	Transmission	£147.72 £123.10
59	EF66070980R Available to backorder	Spring	£6.24 £5.20
60	EF66071084R Available to backorder	Pulley	£15.48 £12.90
61	EF3022020R Available to backorder	Plug	£1.43 £1.19
64	EF66070729 Available to backorder	Wheel Kit	£53.64 £44.70
66	EF66070436R Available to backorder	Right Sprocket	£17.76 £14.80
67	EF66070756 Available to backorder	Wheel Cover	£11.52 £9.60
69	EF3024012R In stock	Seeger	£1.54 £1.28
70	EF66030044 Available to backorder	Spacer	£1.08 £0.90
71	EF66060030R Available to backorder	Bushing	£3.84 £3.20
72	EF8202311R Available to backorder	Ring	£1.66 £1.38
73	EF66070287AR Available to backorder	Rear Axle	£92.04 £76.70
74	EF66070437R Available to backorder	Left Sprocket	£17.52 £14.60
75	EF66071090 In stock	Guard	£17.41 £14.51
76	EF3960137R Available to backorder	Screw	£3.07 £2.56
77	EF66070228AR Available to backorder	Support	£2.35 £1.96
78	EF66070233A In stock	Guard Kit	£15.05 £12.54
79	EF3806076R Available to backorder	Screw	£2.75 £2.29
80	EF66070749 Available to backorder	Axle Kit SN 6195022908	£57.24 £47.70
81	EF66070730 Available to backorder	Wheel Kit	£28.20 £23.50
82	EF66070727R Available to backorder	Wheel Cover	£5.40 £4.50
84	EF66030036 In stock	Hub With Sheet	£19.64 £16.37
85	EF66070440R In stock	Mulching Blade	£27.84 £23.20
86	EF66060384R Available to backorder	Washer	£3.84 £3.20
87	EF3035023R Available to backorder	Bearing	£16.44 £13.70
88	EF66070439A Available to backorder	Lever Group	£35.52 £29.60
89	EF3960072 Available to backorder	Screw	£1.08 £0.90
90	EF66070134R Available to backorder	Dashboard	£10.80 £9.00
92	EF66070341AR In stock	Throttle Lever	£9.32 £7.77
93	EF3918009R Available to backorder	Washer	£1.08 £0.90
94	EF3910019 Available to backorder	Screw	£1.08 £0.90
95	EF3914006R Available to backorder	Nut	£1.08 £0.90
96	EF66070136R In stock	Throttle Cable B&S 625. Lunghezza.Lenght. 1161.5 mm	£13.93 £11.61
96	EF66070171R Available to backorder	Throttle Cable B&S 675EXI. Lunghezza.Lenght. 1261.5 mm	£10.44 £8.70
97	EF66070744 Available to backorder	Support Set SN 6195022908	£11.16 £9.30
98	EF66070836R Available to backorder	Pin 43344	£3.18 £2.65
99	EF66070803R Available to backorder	Lock 43344	£3.96 £3.30
100	EF66070802R Available to backorder	Spring 43344	£7.20 £6.00
