GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower TT Transmission Diagram

Description

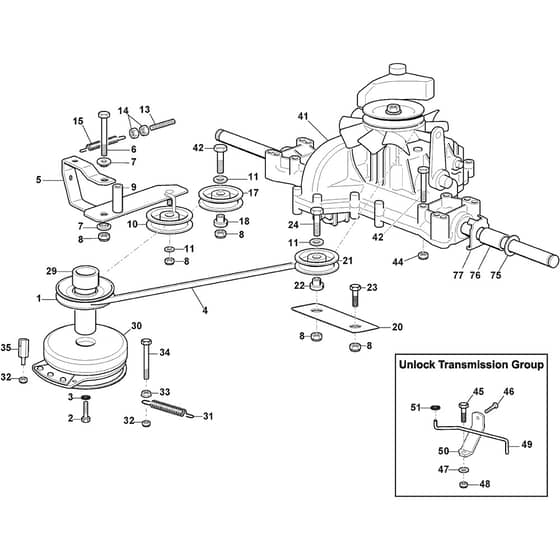

Atco GTX 48HR Parts Diagram

Product Name - GTX 48HR

Model Year - 2021

Model Type - TU 118 Hydro SD

Art.N - 2T1925647/AT1

Engine Model - FS600V

	Part No.	Details
1	MO182595501/0 Available to backorder	Pulley	£53.50 £44.58
2	MO125943013/0 Available to backorder	Screw	£12.67 £10.56
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
4	MO135062020/1 In stock	Trapezoidal Belt	£38.77 £32.31
5	MO382318165/2 Available to backorder	Lever	£27.76 £23.13
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.66 £21.38
11	MO112523060/0 In stock	Washer	£1.55 £1.29
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.18 £15.98
18	MO125160056/0 Available to backorder	Spacer	£4.64 £3.87
20	MO325547448/0 Available to backorder	Pulley Support Plate	£7.02 £5.85
21	MO382601522/0 In stock	Pulley	£23.92 £19.93
22	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
30	MO118399069/1 Available to backorder	Electromagnetic Clutch From S.N 23KA1RON000320	£385.33 £321.11
31	MO127430592/0 Available to backorder	Brake Spring	£5.76 £4.80
33	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
34	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
35	MO125598055/0 Available to backorder	Clutch Pin Extension	£14.70 £12.25
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
44	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
45	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
46	MO112735150/0 Available to backorder	Screw	£1.70 £1.42
47	MO112521350/0 In stock	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO125033129/0 Available to backorder	Rod	£6.32 £5.27
50	MO325785523/0 Available to backorder	Rear Support	£6.77 £5.64
51	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
75	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
