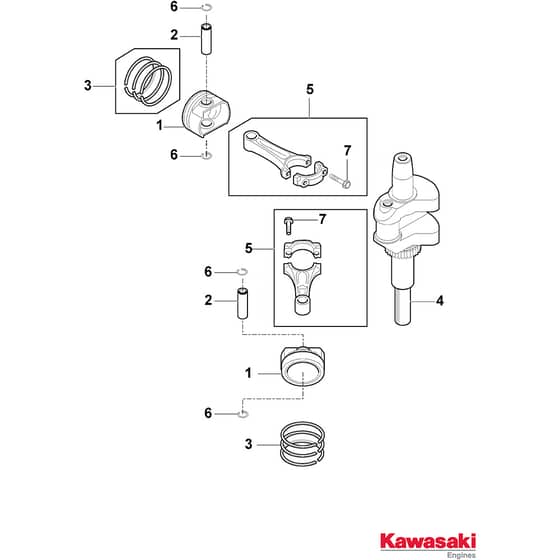

GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Piston Diagram

GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Piston Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Piston Diagram

GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Piston Diagram

Description

Atco GTX 48HR Parts Diagram

Product Name - GTX 48HR

Model Year - 2021

Model Type - TU 118 Hydro SD

Art.N - 2T1925647/AT1

Engine Model - FS600V

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		KA13001-7031 Available to backorder	Piston		£122.76 £102.30
	2		KA13002-7001 Available to backorder	Piston Pin Kawasaki p.n 13002-7001		£7.36 £6.13
	3		KA13008-0583 Available to backorder	Piston Ring Kawasaki p.n 13008-7006		£58.20 £48.50
	4		KA13031-0814 Available to backorder	Crankshaft Kawasaki p.n 13031-0731		£374.04 £311.70
	5		KA13251-0718 Available to backorder	Rod Kawasaki p.n 13251-7021		£99.24 £82.70
	6		KA92033-0780 Available to backorder	Snap Ring Kawasaki p.n 92033-0725		£0.80 £0.67
	7		MO112735410/0 Available to backorder	Flanged Hex-Head Screw D.6 X 35		£1.55 £1.29

Description

Atco GTX 48HR Parts Diagram

Product Name - GTX 48HR

Model Year - 2021

Model Type - TU 118 Hydro SD

Art.N - 2T1925647/AT1

Engine Model - FS600V
