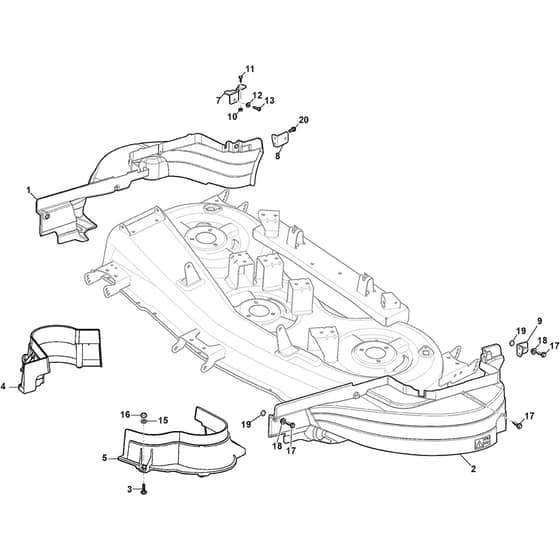

GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Guards Diagram

Name: GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Guards Diagram
SKU: gtx_48hr_2t1925647_at1_guards-group
Price: 1.24 GBP
Availability: InStock

Part No. gtx_48hr_2t1925647_at1_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTX 48HR - 2021 - 2T1925647/AT1 - Atco Ride On Mower Guards Diagram

Description

Atco GTX 48HR Parts Diagram

Product Name - GTX 48HR

Model Year - 2021

Model Type - TU 118 Hydro SD

Art.N - 2T1925647/AT1

Engine Model - FS600V

	Part No.	Details
1	MO325060183/1 Available to backorder	Right Housing	£42.22 £35.18
2	MO325060184/1 Available to backorder	Left Housing	£42.22 £35.18
3	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
4	MO325060181/1 Available to backorder	Right Housing	£26.59 £22.16
5	MO325060182/1 Available to backorder	Left Housing	£25.49 £21.24
7	MO325774423/0 Available to backorder	Clamp	£8.05 £6.71
8	MO325774425/0 Available to backorder	Clamp	£2.69 £2.24
9	MO325774421/0 Available to backorder	Clamp	£2.69 £2.24
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
12	MO325160039/0 Available to backorder	Spacer	£1.63 £1.36
13	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
15	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
16	MO112154510/0 In stock	Nut	£1.55 £1.29
17	MO125943014/0 Available to backorder	Screw	£9.52 £7.93
18	MO325670008/1 In stock	Washer	£1.55 £1.29
19	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
20	MO112729601/1 Available to backorder	Self-Tap Screw Te Fl 5.5 X 16	£1.49 £1.24
