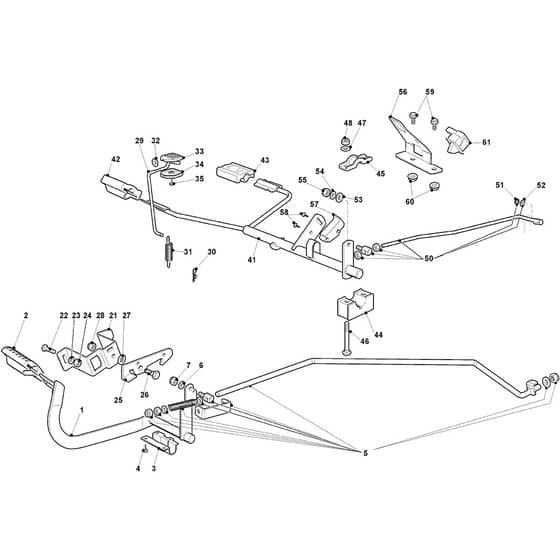

GTX 40H - 2022-2023 - 2T0950647/AT2 - Atco Ride On Mower Brake Controls Diagram

Name: GTX 40H - 2022-2023 - 2T0950647/AT2 - Atco Ride On Mower Brake Controls Diagram
SKU: gtx_40h_2t0950647_at2_brake_controls-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTX 40H - 2022-2023 - 2T0950647/AT2 - Atco Ride On Mower Brake Controls Diagram

Description

Atco GTX 40H Parts Diagram

Product Name - GTX 40H

Model Year - 2022-2023

Model Type - TU 102 Hydro

Art.N - 2T0950647/AT2

Engine Model - FS600V

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal	£76.02 £63.35
2	MO325110416/0 Available to backorder	Clamp Cover	£10.84 £9.03
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000682/0 Available to backorder	Brake Control Rod Assy	£47.87 £39.89
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
21	MO325785143/1 Available to backorder	Support	£4.33 £3.61
22	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
25	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
26	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
28	MO112155000/0 In stock	Nut	£1.55 £1.29
29	MO125033097/0 Available to backorder	Rod	£13.87 £11.56
30	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
31	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
33	MO325592001/1 Available to backorder	Knob	£1.40 £1.17
34	MO325592002/1 Available to backorder	Knob	£1.40 £1.17
35	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
41	MO382000391/1 Available to backorder	Feed.Reverse Gear Control Axle Assy	£82.36 £68.63
42	MO325110417/0 Available to backorder	Clamp Cover Front	£10.84 £9.03
43	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.84 £9.03
44	MO325785185/0 Available to backorder	Support	£3.67 £3.06
45	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
46	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
50	MO382000681/0 Available to backorder	Advance Rod Assembly	£42.23 £35.19
51	MO112000940/0 Available to backorder	Circlip Ø7	£1.55 £1.29
52	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
53	MO112521360/0 In stock	Washer	£1.55 £1.29
54	MO112523040/0 In stock	Washer	£1.49 £1.24
55	MO112154510/0 In stock	Nut	£1.55 £1.29
56	MO325785481/0 Available to backorder	Micro Switch Bracket	£7.52 £6.27
57	MO325060034/1 Available to backorder	Cam	£2.12 £1.77
58	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
59	MO112793102/0 In stock	Screw	£1.55 £1.29
60	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
61	MO119410623/0 Available to backorder	Micro Switch N.C.	£7.62 £6.35
