GTX 40H - 2022-2023 - 2T0950647/AT2 - Atco Ride On Mower Air Filter Diagram

Name: GTX 40H - 2022-2023 - 2T0950647/AT2 - Atco Ride On Mower Air Filter Diagram
SKU: gtx_40h_2t0950647_at2_air_filter-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTX 40H - 2022-2023 - 2T0950647/AT2 - Atco Ride On Mower Air Filter Diagram

Description

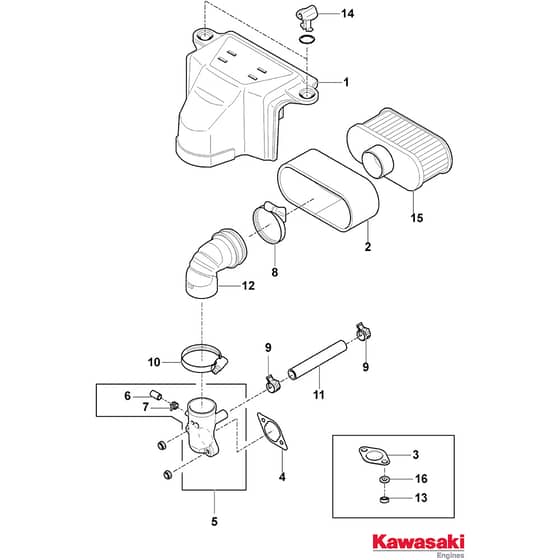

Atco GTX 40H Parts Diagram

Product Name - GTX 40H

Model Year - 2022-2023

Model Type - TU 102 Hydro

Art.N - 2T0950647/AT2

Engine Model - FS600V

Be the first to review this product

0 product questions

	Part No.	Details
1	KA11011-0787 Available to backorder	Filter Cover	£55.80 £46.50
2	KA11013-7046 In stock	Air Filter Kawasaki p.n 11013-7046	£11.64 £9.70
3	KA11060-7016 Available to backorder	Muffler Gasket Kawasaki p.n 11060-7016	£5.28 £4.40
4	KA11061-7095 Available to backorder	Gasket Kawasaki p.n 11061-7095	£8.16 £6.80
5	KA16060-0742 Available to backorder	Pipe Kawasaki p.n 16060-0742	£30.41 £25.34
6	KA92066-0095 Available to backorder	Plug Kawasaki p.n 92066-0095	£1.68 £1.40
7	KA92170-2042 Available to backorder	Clamp Kawasaki p.n 92170-2042	£1.25 £1.04
8	KA92173-1001 Available to backorder	Clamp Kawasaki p.n 92173-1001	£7.99 £6.66
10	KA92173-7009 Available to backorder	Clamp Kawasaki p.n 92173-7009	£15.98 £13.32
11	KA92192-7146 Available to backorder	Tube Kawasaki p.n 92192-7146	£3.01 £2.51
12	KA92192-7164 Available to backorder	Tube Kawasaki p.n 92192-7164	£29.69 £24.74
13	MO112293200/0 In stock	Nut Kawasaki p.n 92210-7027	£1.55 £1.29
14	KA92210-1730 Available to backorder	Knob Kawasaki p.n 92210-7038	£1.19 £0.99
15	KA11013-0752 In stock	Air Filter Kawasaki p.n 99999-0384	£39.46 £32.88
16	MO112583500/0 Available to backorder	Washer M8 Uni 1751 Wz	£1.55 £1.29
